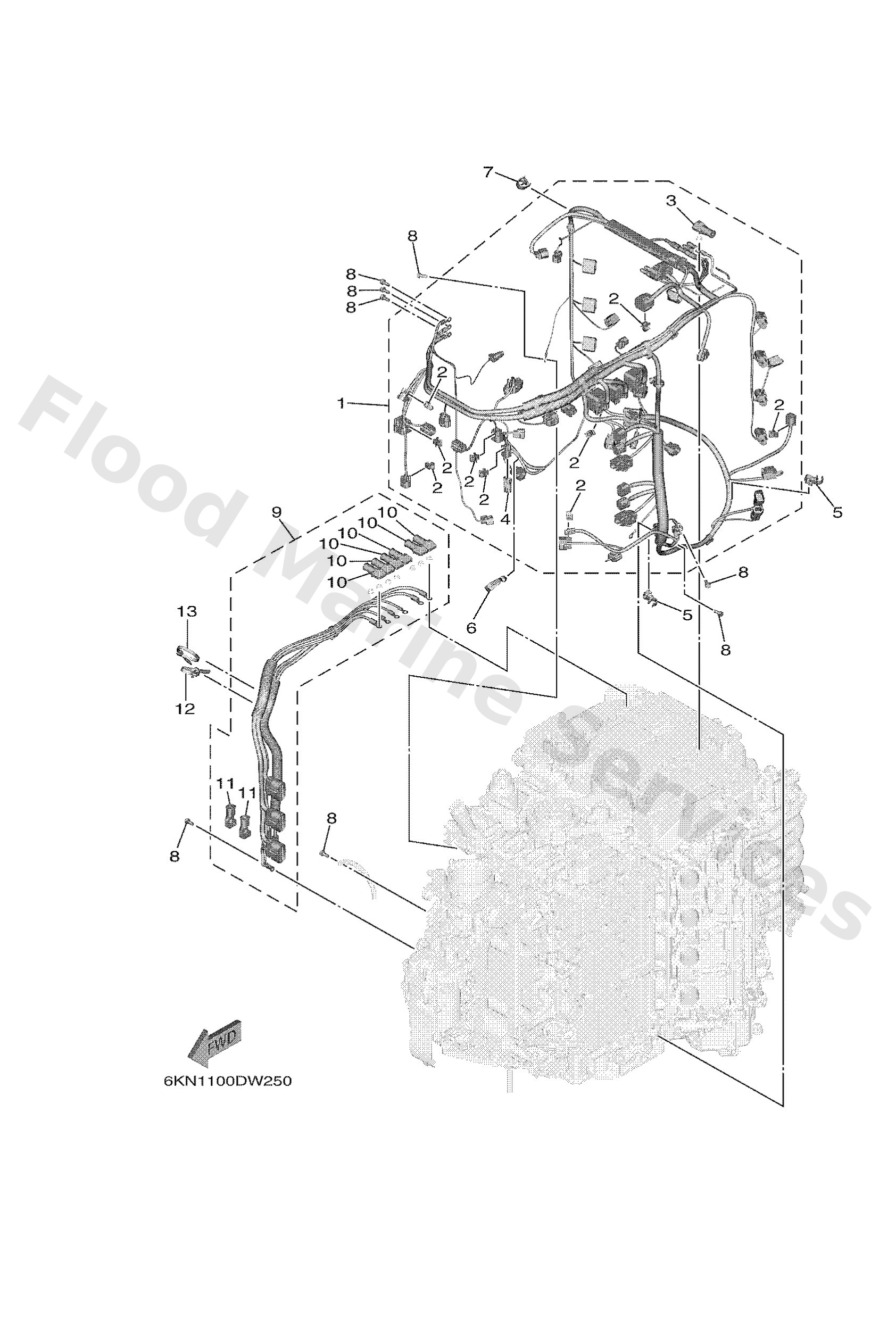

Diagram: ELECTRICAL 5

Diagram

Parts List

6KN8259001
Wire harness assembly
Diagram Reference: 1
Get Part
6LB8259001
Wire harness assembly
Diagram Reference: 1
Get Part
9046409M47
Clamp(65j)
Diagram Reference: 2
Get Part
6GR8211900
Cover, lead wire
Diagram Reference: 3
Get Part
68V8258210
Cap 1 (2p)
Diagram Reference: 4
Get Part
9046412012
Clamp
Diagram Reference: 5
Get Part
9046513M24
Band, switch cord
Diagram Reference: 6
Get Part
9046418004
Clamp
Diagram Reference: 7
Get Part
97E9506516
Bolt, hexagon w/w deep recess
Diagram Reference: 8
Get Part
6GR8259M00
Wire harness assembly 2
Diagram Reference: 9
Get Part
6GR8211910
Cover, lead wire
Diagram Reference: 11
Get Part
9046444002
Clamp
Diagram Reference: 12
Get Part
9046415195
Clamp(4fm)
Diagram Reference: 13
Get Part
