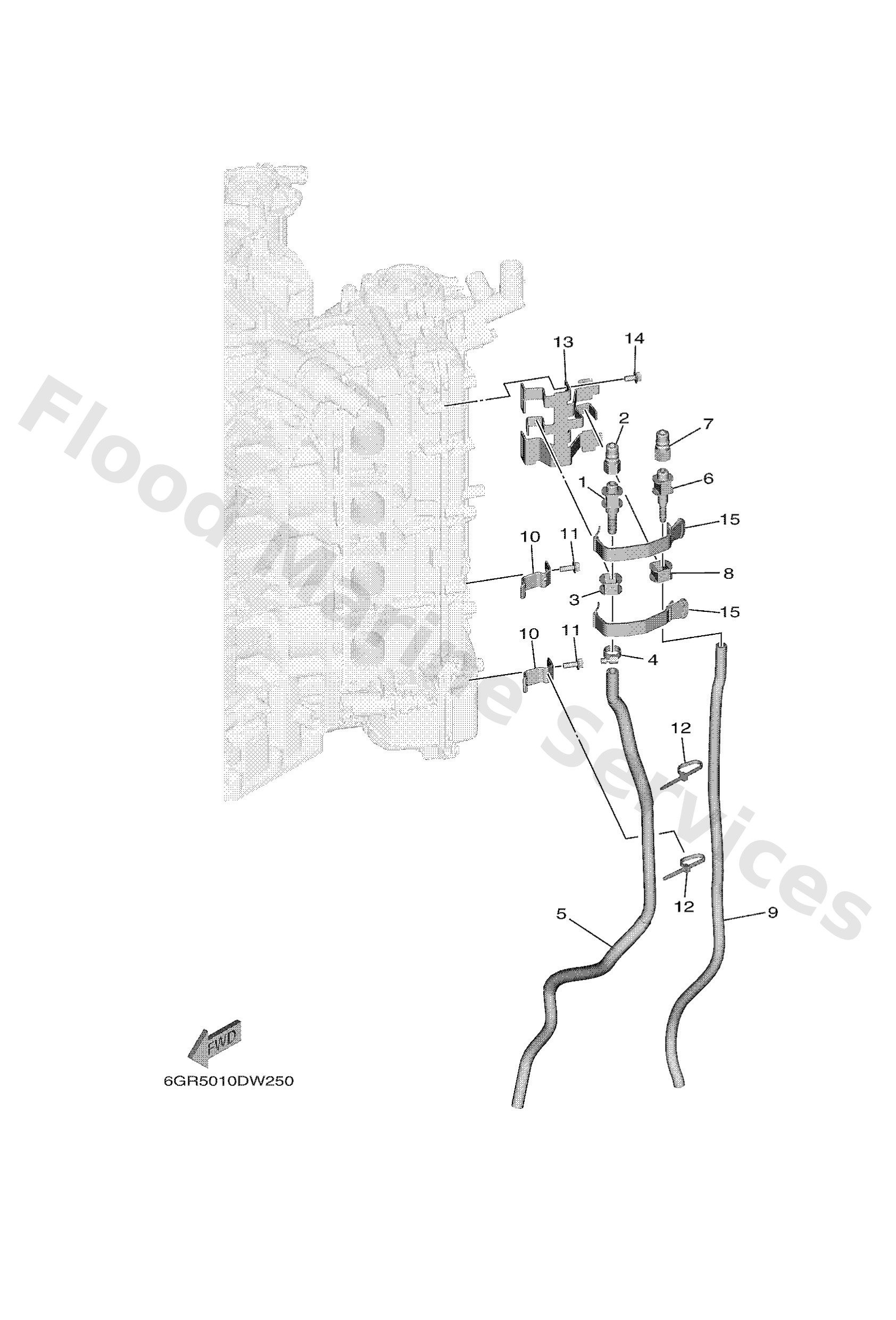

Diagram: ELECTRICAL 6
Parts List
Hose, fitting 1
Diagram Reference: 1
Coupler
Diagram Reference: 2
Cover, connecter
Diagram Reference: 3
Hose clamp assembly(62t)
Diagram Reference: 4
Hose, oil 2
Diagram Reference: 5
Hose, fitting 2
Diagram Reference: 6
Cover, connecter
Diagram Reference: 8
Hose, air 2
Diagram Reference: 9
Clamp, lead 1
Diagram Reference: 10
Bolt, flange deep recess
Diagram Reference: 11
Clamp
Diagram Reference: 12
Plate
Diagram Reference: 13
Bolt, flange deep recess
Diagram Reference: 14
Band, battery
Diagram Reference: 15
