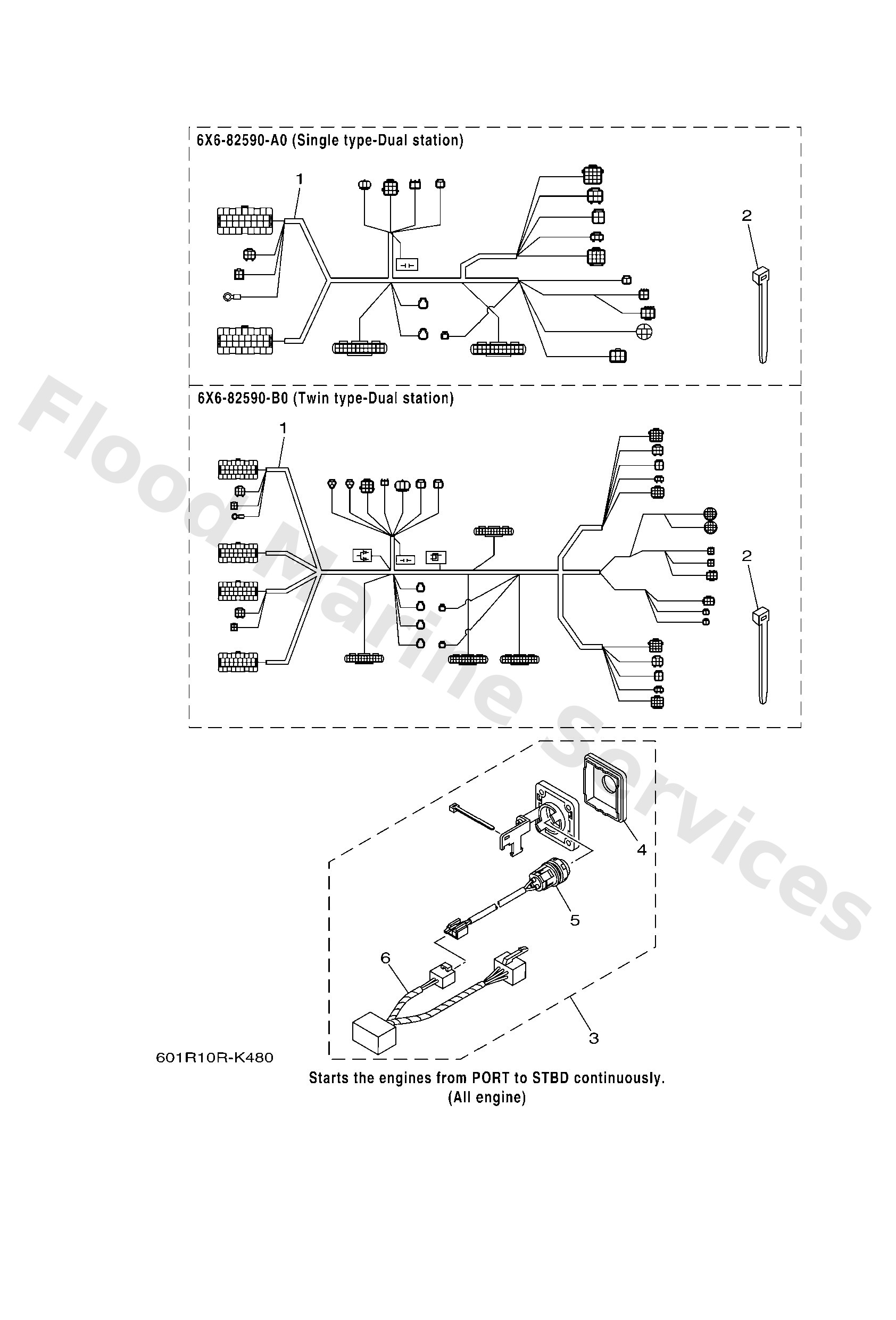

Diagram: ELECTRICAL DBW REMO-CON 1

Diagram

Parts List

6X682590B0 (AP TWIN)
Wire harness assembly
Diagram Reference: 1
Get Part
6X682590A0 (AP SINGLE)
Wire harness assembly
Diagram Reference: 1
Get Part
7038259100 (AP SINGLE)
Band
Diagram Reference: 2
Get Part
6X682570C0 (AP TWIN,TRIPLE)
Panel switch assembly
Diagram Reference: 3
Get Part
6X68257160
Panel, switch
Diagram Reference: 4
Get Part
6X68259E20
Switch assembly
Diagram Reference: 5
Get Part
6X68198020
Diode assembly
Diagram Reference: 6
