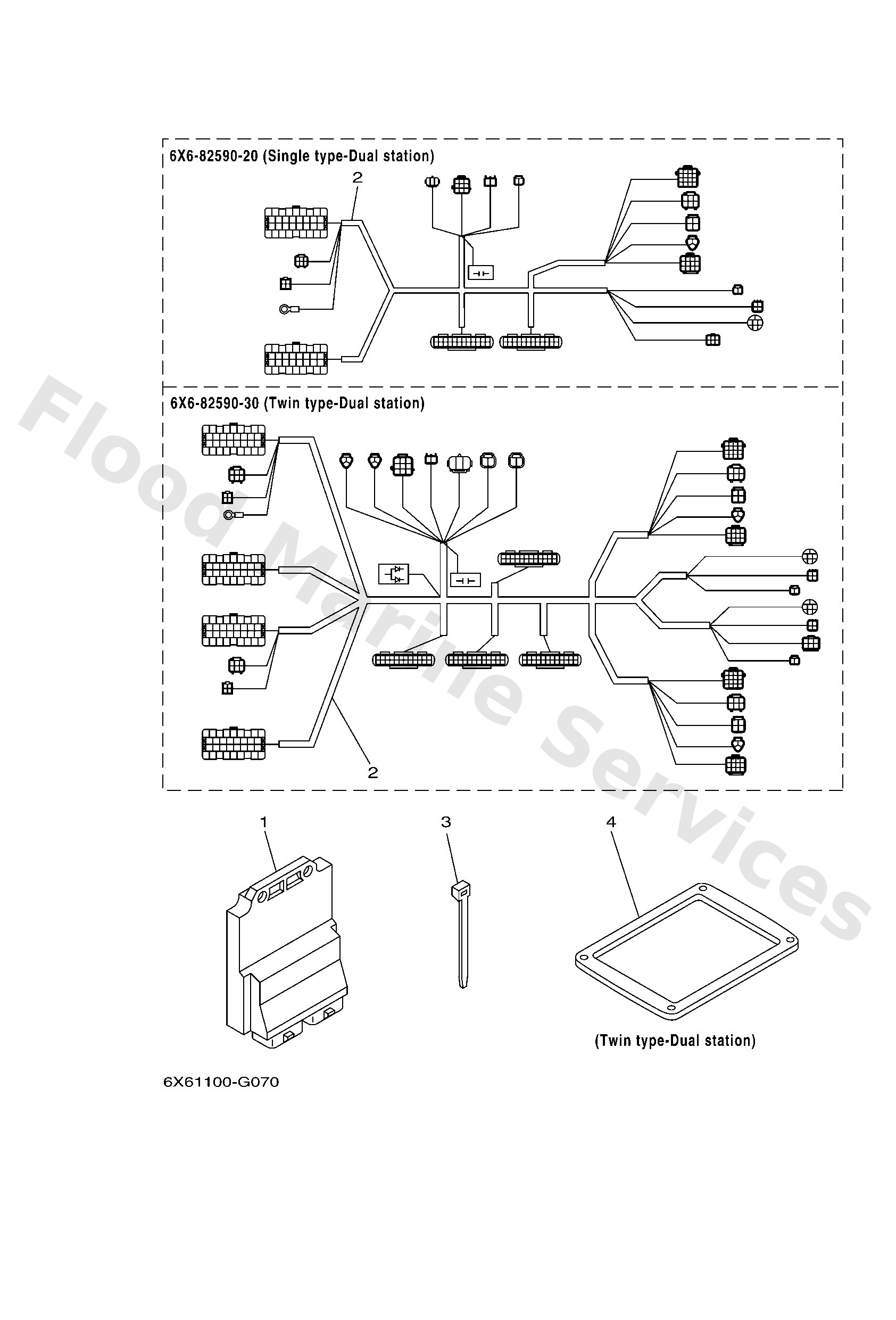

Diagram: ELECTRICAL DBW REMOTE CONTROL BOITIER COMMANDE

Diagram

Parts List

6X68559000 (SINGLE, 2 STATION)
Control unit assembly
Diagram Reference: 1
Get Part
6X68259020 (SINGLE, 2 STATION)
Wire Harness assembly
Diagram Reference: 2
Get Part
6X68259030 (TWIN, 2 STATION)
-
Diagram Reference: 2
Get Part
7038259100 (SINGLE, 2 STATION)
Band
Diagram Reference: 3
Get Part
6X64817610 (TWIN, 2 STATION)
Grommet
Diagram Reference: 4
Get Part
