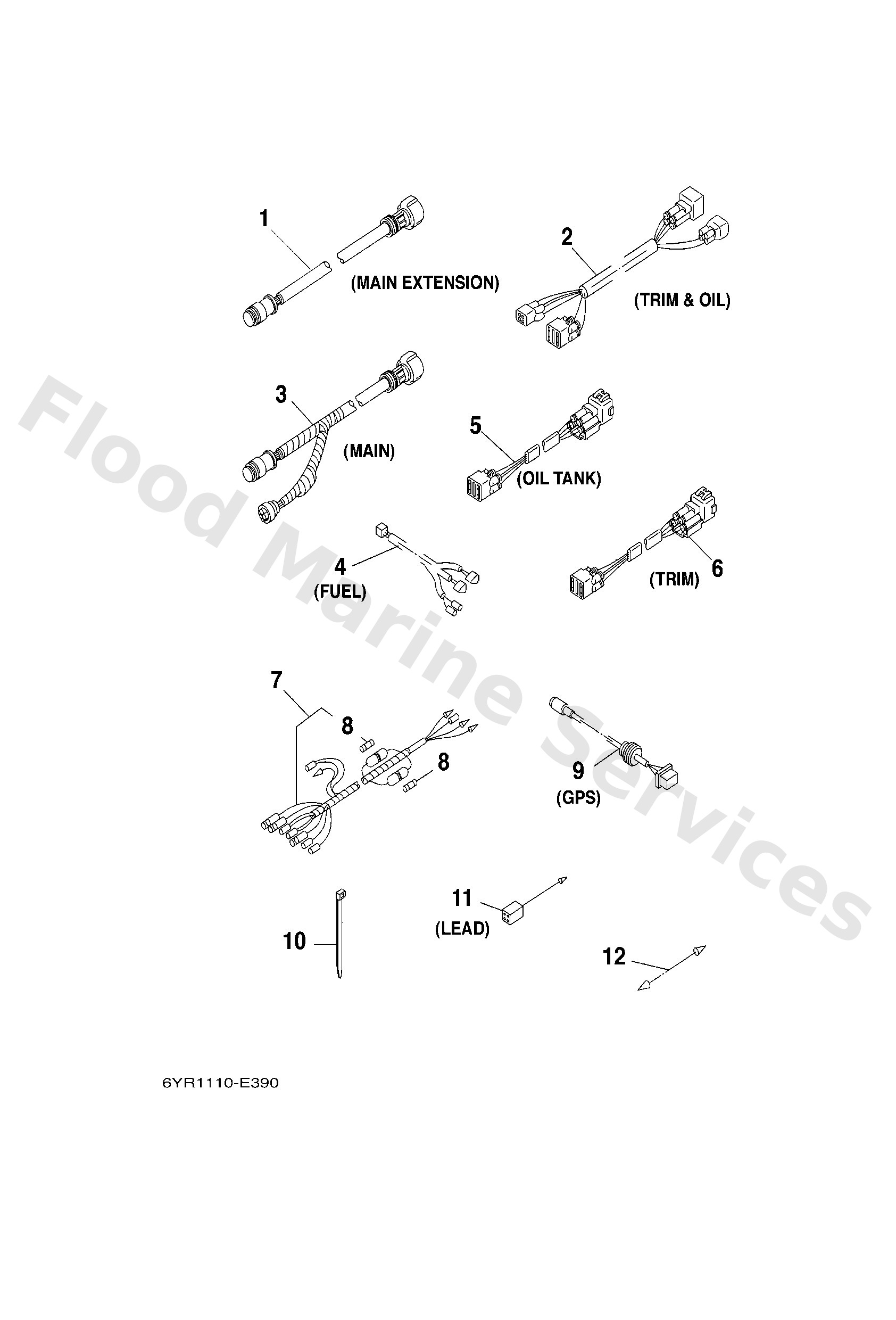

Diagram: ELECTRICAL WIRE HARNESSES

Diagram

Parts List

6888258A20 (UR EXTENSION,MAIN (10P))

10p main harness mec 2m (6ft)

Diagram Reference: 1

6888258A30 (UR EXTENSION,MAIN (10P))

10p main harness mec 3m (10ft)

Diagram Reference: 1

7038258A00 (UR 7P TO 10P ADAPTER)

Extension, wire harness

Diagram Reference: 1

6888258A10 (UR EXTENSION,MAIN (10P))

10p main harness mec 2m (7ft)

Diagram Reference: 1

68F8255350 (UR TRIM & OIL GAUGE)

Extension, wire lea (5m)

Diagram Reference: 2

68F8255360 (UR TRIM & OIL GAUGE)

Extension, Wire Lead (L=6.0M)

Diagram Reference: 2

68F8255370 (UR TRIM & OIL GAUGE)

Extension, wire lead (7m)

Diagram Reference: 2

68F8255380 (UR TRIM & OIL GAUGE)

Extension, wire lead (8m)

Diagram Reference: 2

68F8255390 (UR TRIM & OIL GAUGE)

Extension, wire lead (9m)

Diagram Reference: 2

6888258A50 (UR MAIN (10P))

10p main harness mec 5m (16ft)

Diagram Reference: 3

6888258A60 (UR MAIN (10P))

10p main harness mec 6m (20ft)

Diagram Reference: 3

61B8258A01 (UR MAIN (10P))

Extension, wire harness

Diagram Reference: 3

6K18258A40 (UR MAIN (10P))

Extension, wire harness

Diagram Reference: 3

6X38258A00 (UR MAIN (10P))

-

Diagram Reference: 3

6X38258A10 (UR MAIN (10P))

-

Diagram Reference: 3

6Y583553F1

Wire, lead

Diagram Reference: 4

6R38572130 (UR OIL TANK (4P))

Wire, lead

Diagram Reference: 5

6R38572150 (UR OIL TANK (4P))

Wire, lead

Diagram Reference: 5

6R38572180 (UR OIL TANK (4P))

Wire, lead

Diagram Reference: 5

6R38255330 (UR TRIM GAUGE (4P))

Wire, lead

Diagram Reference: 6

6R38255350 (UR TRIM GAUGE (4P))

Wire, lead

Diagram Reference: 6

6R38255370 (UR TRIM GAUGE (4P))

Extension, wire lead (for trim

Diagram Reference: 6

6R38255380 (UR TRIM GAUGE (4P))

Wire, lead

Diagram Reference: 6

6Y583553N0

Wire, lead (l=2.5m)

Diagram Reference: 7

1E68215100

Fuse (10a)

Diagram Reference: 8

6Y587122S0 (FOR GPS CONNECTION)

Cord assembly 1

Diagram Reference: 9

9046511M10

Clamp

Diagram Reference: 10

6Y58214900 (UR Y-LEAD)

Wire, lead 3

Diagram Reference: 11

6Y58211700 (UR Y-LEAD)

Wire, lead

Diagram Reference: 11

6Y58252100 (UR Y-LEAD)

Wire, lead

Diagram Reference: 11

7038253100

Wire, lead

Diagram Reference: 12
