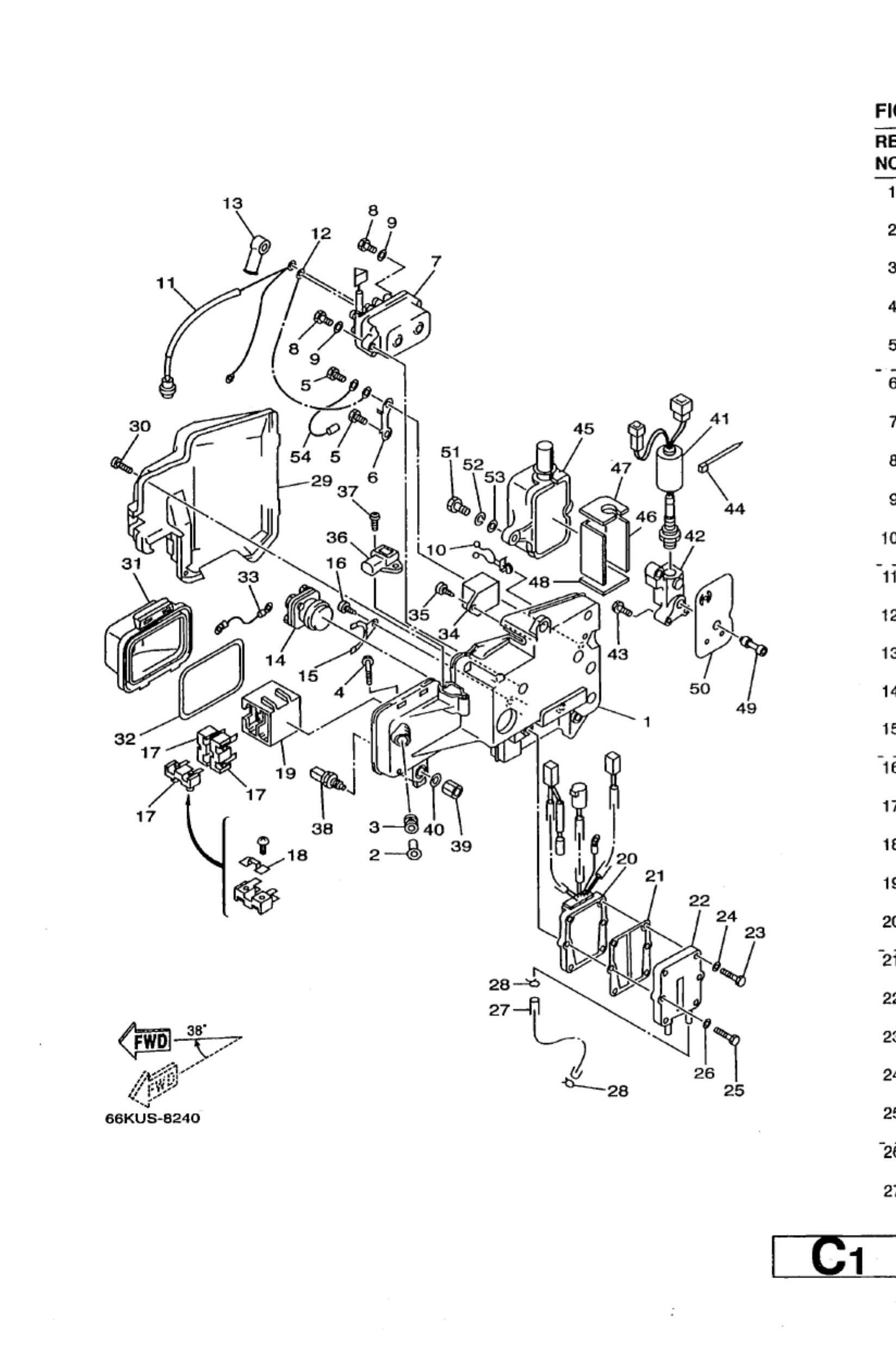

Diagram: ELECTRICAL3

Diagram

Parts List

65L8194800
Bracket
Diagram Reference: 1
Get Part
6244254200
Collar
Diagram Reference: 2
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 3
Get Part
9011906M65
Bolt, with washer
Diagram Reference: 4
Get Part
9701306014
Bolt(gj3)
Diagram Reference: 5
Get Part
61A8714900
Connector
Diagram Reference: 6
Get Part
61A8195000
Relay assembly
Diagram Reference: 7
Get Part
9701306030
Bolt
Diagram Reference: 8
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 9
Get Part
9046418M46
Clamp(65j)
Diagram Reference: 10
Get Part
61A8194910
Wire, lead
Diagram Reference: 11
Get Part
61A8194900
Wire, lead
Diagram Reference: 12
Get Part
9044509224
Hose (l1500)
Diagram Reference: 13
Get Part
66KUS8240 (BOLT)
52 92995-06100
Diagram Reference: 13
Get Part
9701306025
Bolt(62y)
Diagram Reference: 13
Get Part
61A8196001
Rectifier & regulator assembly
Diagram Reference: 13
Get Part
61A8215300
Stay, fuse holder
Diagram Reference: 13
Get Part
61A8215100
Fuse(12v-80a)
Diagram Reference: 13
Get Part
61A8215000
Fuse holder assembly
Diagram Reference: 13
Get Part
9778050612
Screw, tapping(61a)
Diagram Reference: 13
Get Part
61A8195200
Holder, relay
Diagram Reference: 13
Get Part
61A8194100
Starter relay assembly
Diagram Reference: 13
Get Part
6G58211900
Cover, lead wire
Diagram Reference: 13
Get Part
