ME372STIP1 (2007)
EXHAUST

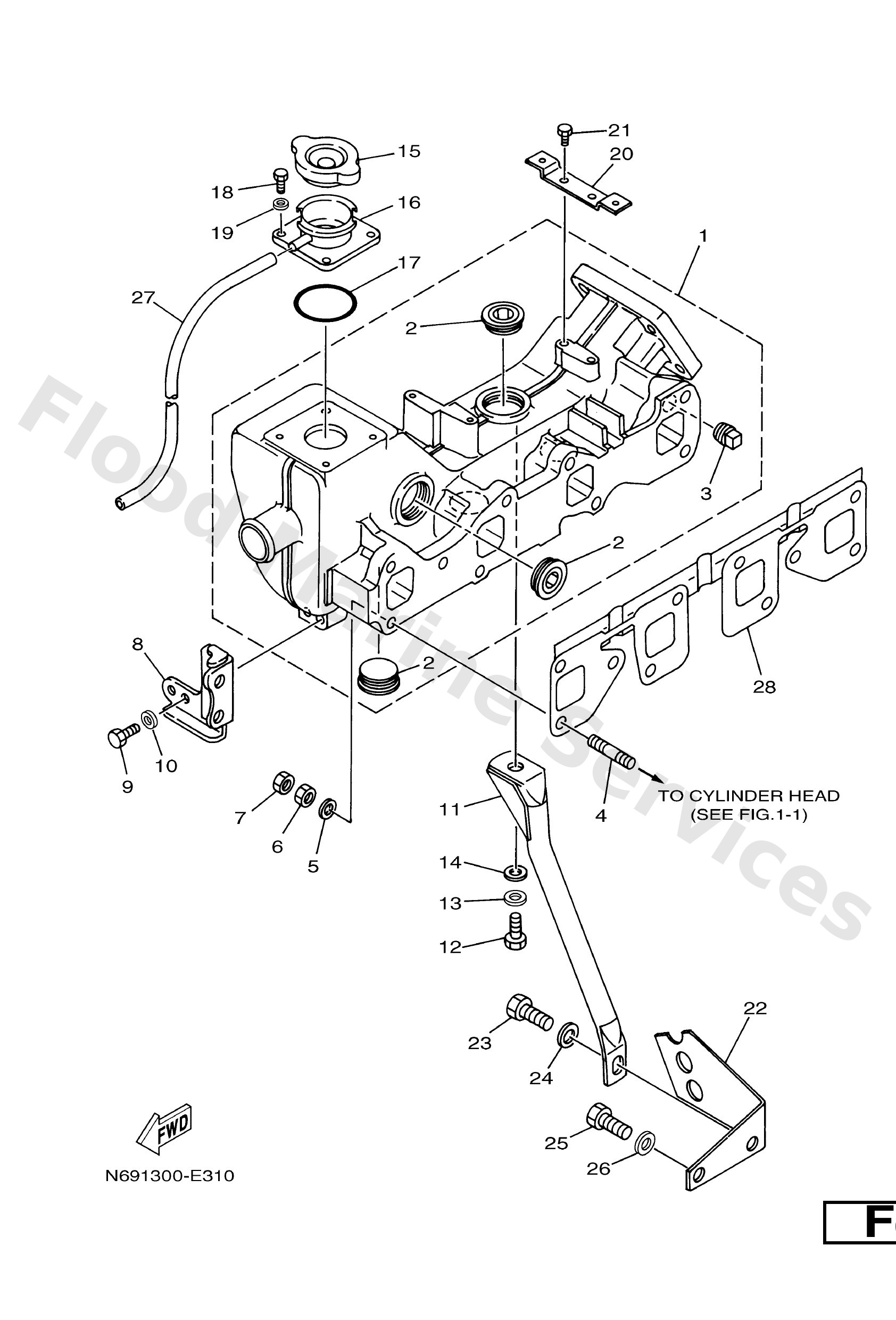

Diagram: EXHAUST
Parts List
Reference
Description
Price
1
6TC4114002
Exhaust manifold comp.
Loading…
↗
2
9034032044
Plug, straight screw (706)
Loading…
↗
3
9034453003
Plug, taper screw (716)
Loading…
↗
4
N181466101
Bolt, stud
Loading…
↗
5
9020110M05
Washer, plate(6tc)
Loading…
↗
6
9538010600
Nut(624)
Loading…
↗
7
9538010700
Nut (682)
Loading…
↗
8
6TC1263900
Stay 3
Loading…
↗
9
9702708020
Bolt, hexagon
Loading…
↗
10
9290708600
Washer(6ta)
Loading…
↗
11
6TC1263800
Stay 2
Loading…
↗
12
9702710025
Bolt(6td)
Loading…
↗
13
9290710600
Washer(6ta)
Loading…
↗
14
9290710200
Washer, plain(3bm)
Loading…
↗
15
8A22181500
Cap, radiator
Loading…
↗
16
70R1252001
Filler neck comp
Loading…
↗
17
9321054534
O-ring (70e)
Loading…
↗
18
9702706020
Bolt, hexagon
Loading…
↗
19
9290706600
Washer(6ta)
Loading…
↗
20
6TC1461M00
Bracket, 1-2
Loading…
↗
21
9708506008
Bolt
Loading…
↗
22
6TC8215300
Stay, fuse holder
Loading…
↗
23
9702712030
Bolt
Loading…
↗
24
9290712600
Washer(6ta)
Loading…
↗
25
9702712025
Bolt, hexagon
Loading…
↗
27
9044512239
Hose (l250)
Loading…
↗
