80AETOL (1985)
Electric Parts

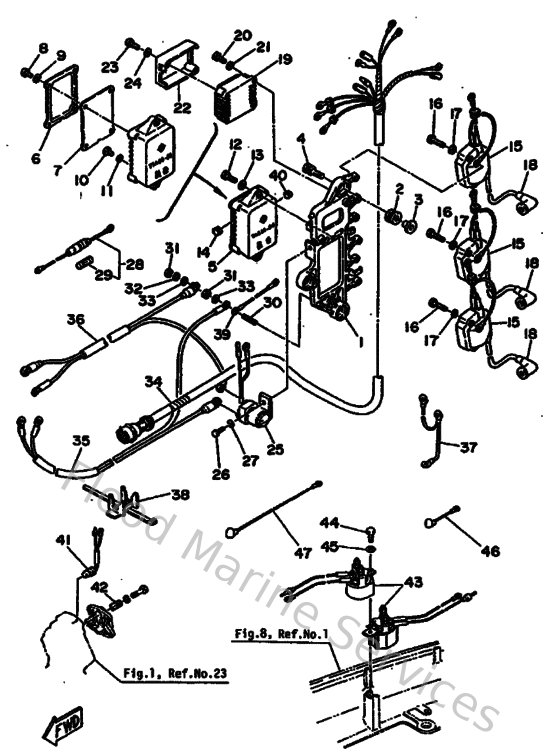

Diagram: Electric Parts
Parts List
Reference
Description
Price
2
904801506400
Grommet(663)
Loading…
↗
3
9038706M0300
Collar (676)
Loading…
↗
4
9011906M2600
Bolt, with washer
Loading…
↗
5
688855401300
C.d.i. Unit assembly
Loading…
↗
6
688855371200
Cover
Loading…
↗
7
6E5855471000
Damper
Loading…
↗
8
978850501000
Screw, pan head(62x)
Loading…
↗
9
929900560000
Washer, plain (646)
Loading…
↗
10
985030400800
Screw, pan head (713)
Loading…
↗
11
929900420000
Ybs66-4 washer, plain
Loading…
↗
12
973950602500
Bolt
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
14
904800615700
Grommet
Loading…
↗
15
697855701000
Ignition coil assembly
Loading…
↗
16
973130603000
Bolt
Loading…
↗
17
929030610000
Washer(6a1)
Loading…
↗
18
6G1823702100
Plug cap assembly
Loading…
↗
19
688819606000
Rectifier & Regulator assembly
Loading…
↗
20
973130602000
Bolt(7u8)
Loading…
↗
21
929030660000
Washer, plain (646)
Loading…
↗
22
688819610100
Cover
Loading…
↗
23
978030502500
Screw, panhead (a93)
Loading…
↗
24
929030560000
Washer, plain (646)
Loading…
↗
25
688819401100
Starter relay ass'y
Loading…
↗
26
973950601600
Bolt, hexagon deep recess
Loading…
↗
28
688821500000
Fuse holder assembly
Loading…
↗
29
663821510000
Fuse
Loading…
↗
30
9011606M2200
Bolt, stud (6h1)
Loading…
↗
31
953800670000
Nut
Loading…
↗
32
929950610000
Washer(6a1)
Loading…
↗
33
929900620000
Ybs66-6 washer, plain
Loading…
↗
34
688825901100
Wire Harness assembly
Loading…
↗
35
688821050200
Battery cable
Loading…
↗
36
688825310100
Wire, Lead
Loading…
↗
37
697825190000
Wire,earth lead
Loading…
↗
38
688825940000
Clamp
Loading…
↗
40
663819220000
Grommet
Loading…
↗
41
688825601000
Thermo switch assembly
Loading…
↗
42
688825880100
Plate
Loading…
↗
43
688819501000
Relay assembly
Loading…
↗
46
688819490000
Wire, Lead
Loading…
↗
47
688855150000
Lead Wire Assembly
Loading…
↗
