Yamaha Outboard Parts - Electric Parts - 8CEM (1987) | Flood Marine

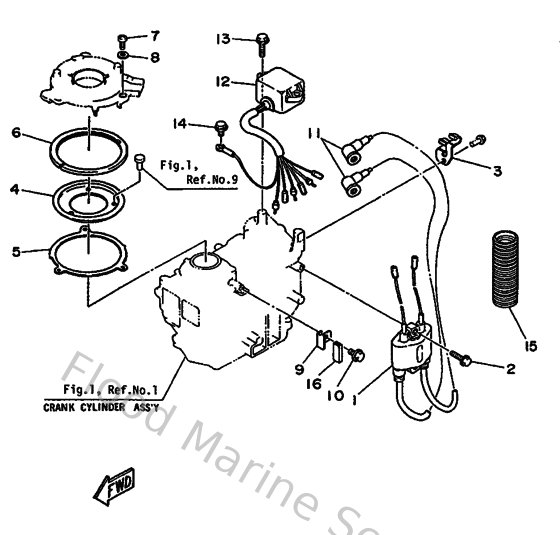

Diagram: Electric Parts

Diagram

Parts List

Reference
Description
Price


1
6G1855700000
Ignition coil assembly
Loading…

↗
2
9010506M2400
Bolt (6g1)
Loading…

↗
3
9046508M1700
Clamp (6G1)
Loading…

↗
4
6G1416110000
Retainer, magneto base 1
Loading…

↗
5
6G1416120000
Retainer, magneto base
Loading…

↗
6
695416130000
Plate, base friction
Loading…

↗
7
978030501000
Screw, pan head(62x)
Loading…

↗
8
929900560000
Washer, plain (646)
Loading…

↗
9
6G1416150000
Stopper, magneto base
Loading…

↗
10
9010506M2300
Bolt (6g1)
Loading…

↗
11
6G1823702000
Plug cap assembly
Loading…

↗
12
696855401200
C.d.i. unit assembly
Loading…

↗
13
9010506M1500
Bolt (6e0)
Loading…

↗
15
6G1835570000
Tube
Loading…

↗
16
6G1441940000
Cap
Loading…

↗
1
6G1819411000
Starter relay
Loading…

↗
2
6G1819520000
Holder, relay
Loading…

↗
3
6G1819450000
Plate, Switch Fitting
Loading…

↗
4
9010506M1400
Bolt (6e0)
Loading…

↗
5
689818700000
Starting switch assembly
Loading…

↗
6
6G1825900000
Wire Harness assembly
Loading…

↗
7
6E7821051200
Battery cable
Loading…

↗
8
6G1821170000
Wire, lead
Loading…

↗
9
682427244000
Grommet 1
Loading…

↗
10
6G1823620000
Clamp Cord
Loading…

↗
12
6G1819706200
Rectifier assembly
Loading…

↗
13
6G1821510000
Fuse (10a)
Loading…

↗
14
978030502500
Screw, panhead (a93)
Loading…

↗
16
6F5825400000
Neutral switch assembly
Loading…

↗
17
6G1825540000
Stay Neutral Switch
Loading…

↗
19
6G1441250000
Lever Shift Rod 2
Loading…

↗
20
914902502000
Pin, cotter
Loading…

↗
