F8AMH (1988)
Electric Parts

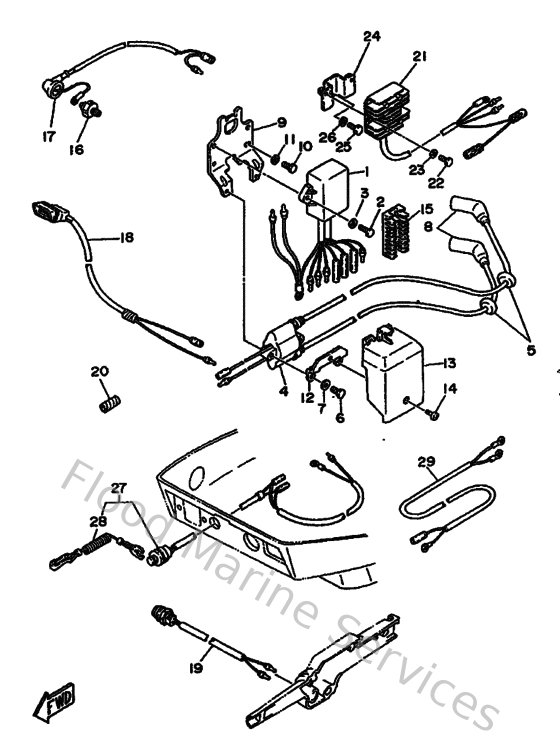

Diagram: Electric Parts
Parts List
Reference
Description
Price
1
6G8855402000
C.d.i. unit assembly
Loading…
↗
2
973130602500
Bolt
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
6G8855702000
Ignition coil assembly
Loading…
↗
5
904802516100
Grommet(656)
Loading…
↗
6
970800602000
Bolt(7u8)
Loading…
↗
8
6G8823702000
Plug cap assembly
Loading…
↗
9
6G8855420000
Bracket
Loading…
↗
12
6G8855250000
Plate
Loading…
↗
13
6G8819160000
Cover, Terminal
Loading…
↗
14
989800600800
Screw, bind(2tv)
Loading…
↗
15
6G8825220000
Clamp
Loading…
↗
16
6G8825040000
Oil pressure switch
Loading…
↗
17
6G8821270000
Wire Lead 2
Loading…
↗
18
6G8835820100
Pilot Light assembly
Loading…
↗
19
6G8825501000
Stop switch assembly
Loading…
↗
20
9044610M0200
Tube (6e5)
Loading…
↗
21
6G881960A000
Rectifier/reg Assembly
Loading…
↗
22
970950601600
Bolt, hexagon deep recess
Loading…
↗
24
6G8819480000
Bracket
Loading…
↗
25
973130601600
Bolt, hexagon deep recess
Loading…
↗
27
6G8825750000
Engine stop switch assembly
Loading…
↗
29
6G8819490000
Wire, lead
Loading…
↗
