150AETOL (2000)
Electrical 1

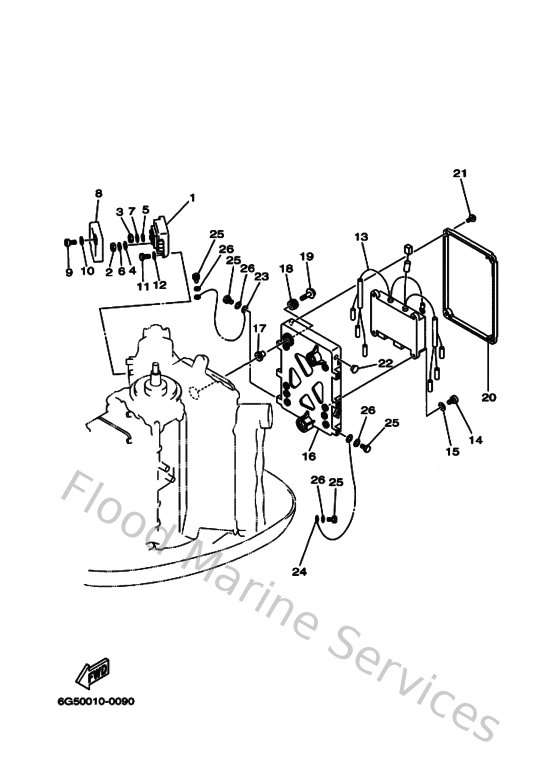

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6G581960A000
Rectifier & regulator assembly
Loading…
↗
2
953800560000
Nut, hexagon (663)
Loading…
↗
3
953800660000
Nut(661)
Loading…
↗
4
929900520000
Ybs66-5 washer, plain
Loading…
↗
5
929900620000
Ybs66-6 washer, plain
Loading…
↗
6
929030510000
Ybs67-5 washer, spring
Loading…
↗
7
929030610000
Washer(6a1)
Loading…
↗
8
688819610100
Cover
Loading…
↗
9
978850502500
Screw, pan head(62j)
Loading…
↗
10
929950560000
Washer, plain (646)
Loading…
↗
11
970130602000
Bolt(62y)
Loading…
↗
12
929030660000
Washer, plain (646)
Loading…
↗
13
6G6855400000
C.d.i. unit assembly
Loading…
↗
14
985800602000
Screw pan head
Loading…
↗
15
929900660000
Washer, plain (646)
Loading…
↗
16
6R385542031S
Bracket
Loading…
↗
17
9038706M0300
Collar (676)
Loading…
↗
18
9048009M1200
Grommet (6a0)
Loading…
↗
19
9011906M6000
Bolt, with washer
Loading…
↗
20
6R3855370000
Cover
Loading…
↗
21
9015906M1100
Screw, with washer(6l2)
Loading…
↗
22
9048012M2500
Grommet (6e9)
Loading…
↗
23
662825190000
Wire, earth lead
Loading…
↗
24
6R3825190000
Wire, earth lead
Loading…
↗
25
970950601200
Bolt(gh1)
Loading…
↗
26
929950660000
Washer, plain (646)
Loading…
↗
