200GETOL (1999)
Electrical 1

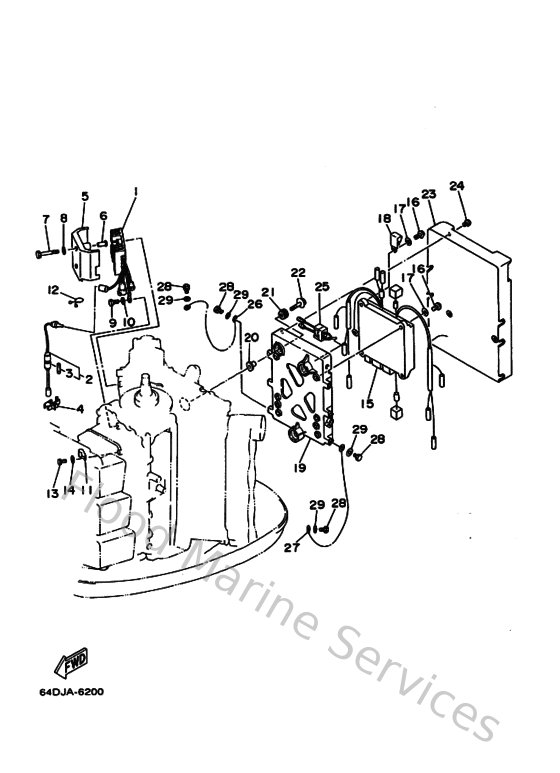

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6R3819601000
Rectifier & regulator assembly
Loading…
↗
2
6R3821500000
Fuse holder assembly
Loading…
↗
3
705821510000
Fuse (30a)
Loading…
↗
4
6G5821520000
Holder, fuse
Loading…
↗
5
64D819420000
Cover
Loading…
↗
6
9038706M6600
Collar (6h4)
Loading…
↗
7
970130605500
Bolt(64d)
Loading…
↗
8
929030660000
Washer, plain (646)
Loading…
↗
9
970800601200
Bolt(gh1)
Loading…
↗
11
9046508M5100
Clamp
Loading…
↗
12
904641603900
Clamp (3y2)
Loading…
↗
13
970130601200
Bolt(gh1)
Loading…
↗
15
64E855400100
C.d.i. unit assembly
Loading…
↗
16
978800602000
Screw pan head
Loading…
↗
17
929900660000
Washer, plain (646)
Loading…
↗
18
9046508M3300
Clamp(6t4)
Loading…
↗
19
6R385542034D
Bracket
Loading…
↗
20
9038706M0300
Collar (676)
Loading…
↗
21
9048009M1200
Grommet (6a0)
Loading…
↗
22
9011906M0800
Bolt, with washer
Loading…
↗
23
64D855370000
Cover
Loading…
↗
24
9015906M1100
Screw, with washer(6l2)
Loading…
↗
25
6R38259E0000
Switch assembly
Loading…
↗
26
662825190000
Wire, earth lead
Loading…
↗
27
6R3825190000
Wire, earth lead
Loading…
↗
28
970950601200
Bolt(gh1)
Loading…
↗
29
929950660000
Washer, plain (646)
Loading…
↗
