20DEO (1992)
Electrical 1

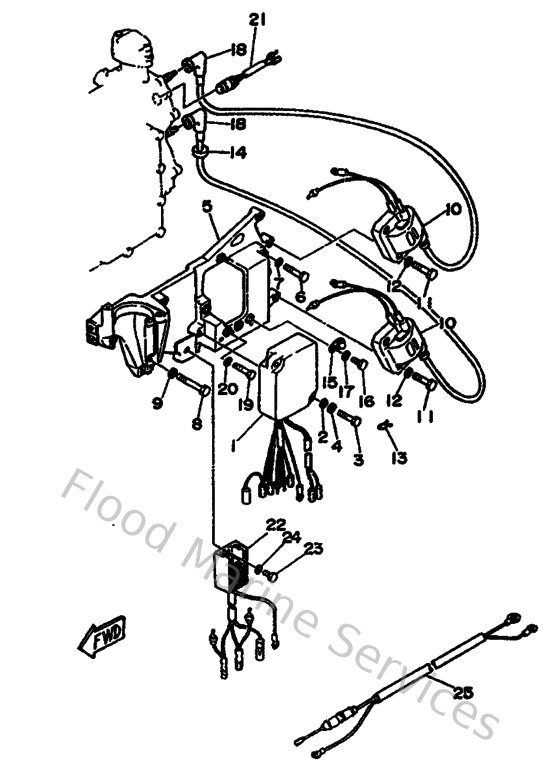

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6L2855401000
Cdi Unit Assembly
Loading…
↗
2
929900620000
Ybs66-6 washer, plain
Loading…
↗
3
973950603000
Bolt(jf7)
Loading…
↗
4
929900610000
Washer(6a1)
Loading…
↗
5
6L2855420194
Bracket
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
9010106M1600
Bolt(6l2)
Loading…
↗
10
6L2855701000
Ignition Coil Assembly
Loading…
↗
11
973130603000
Bolt
Loading…
↗
13
904651814700
Clamp
Loading…
↗
14
904802516100
Grommet(656)
Loading…
↗
15
904650802800
Clamp (1e6)
Loading…
↗
16
970130601200
Bolt(gh1)
Loading…
↗
18
6G1823702000
Plug cap assembly
Loading…
↗
19
970800601200
Bolt(gh1)
Loading…
↗
21
689825600000
Thermo switch assembly
Loading…
↗
22
6J8819600000
Rectifier & regulator assembly
Loading…
↗
23
973950601600
Bolt, hexagon deep recess
Loading…
↗
25
6J8821051000
Battery cable
Loading…
↗
