5CMH (1990)
Electrical 1

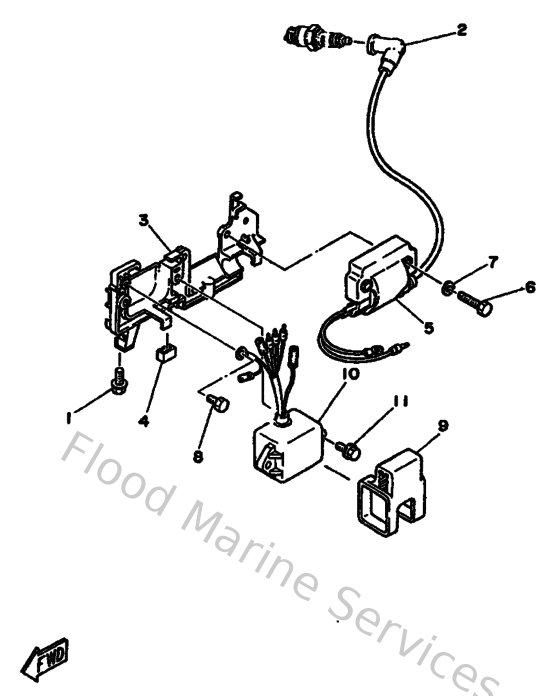

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
958950601600
Bolt, flange deep recess
Loading…
↗
2
6G1823702000
Plug cap assembly
Loading…
↗
3
6E0823160094
Bracket, ignition coil
Loading…
↗
4
6E0823170000
Damper
Loading…
↗
5
6E0855702100
Ignition Coil assembly
Loading…
↗
6
973130603000
Bolt
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
973130601000
Bolt
Loading…
↗
9
6E0855480000
Holder, wire harness
Loading…
↗
10
6E0855407100
C.d.i. unit assembly
Loading…
↗
