6CEM (1992)
Electrical 1

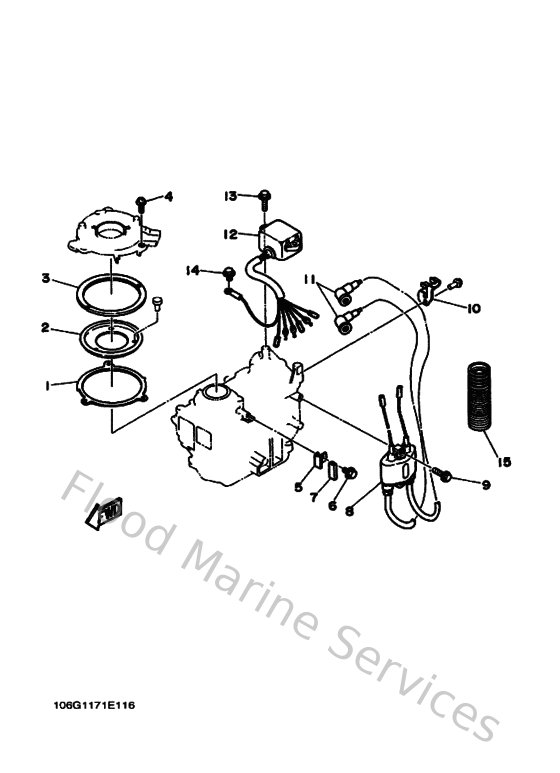

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6G1416110000
Retainer, magneto base 1
Loading…
↗
2
6G1416120000
Retainer, magneto base
Loading…
↗
3
695416130000
Plate, base friction
Loading…
↗
4
979850521000
Screw, With Washer
Loading…
↗
5
6G1416150000
Stopper, magneto base
Loading…
↗
6
9010506M2300
Bolt (6g1)
Loading…
↗
7
6G1441940000
Cap
Loading…
↗
8
6G1855700200
Ignition coil assembly
Loading…
↗
9
9010506M2400
Bolt (6g1)
Loading…
↗
10
9046508M1700
Clamp (6G1)
Loading…
↗
11
6G1823702000
Plug cap assembly
Loading…
↗
12
696855401200
C.d.i. unit assembly
Loading…
↗
13
958950602000
Bolt, flange(jk3)
Loading…
↗
15
6G1835570000
Tube
Loading…
↗
