E8DMH (1999)
Electrical 1

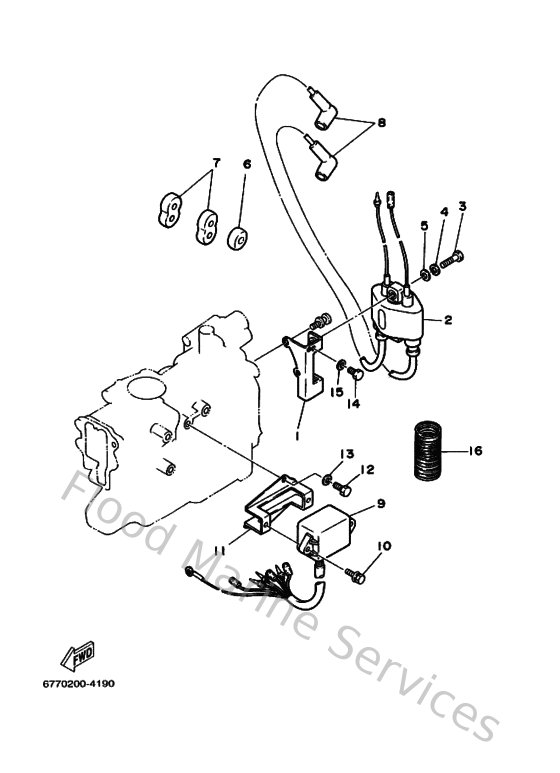

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6K3855420100
Bracket
Loading…
↗
2
6G1855700100
Ignition coil assembly
Loading…
↗
3
970950602500
Bolt
Loading…
↗
4
929950610000
Washer(6a1)
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
904802516100
Grommet(656)
Loading…
↗
7
9048025M1800
Grommet
Loading…
↗
8
682823700000
Plug cap assembly
Loading…
↗
9
696855401200
C.d.i. unit assembly
Loading…
↗
10
9011906M1900
Bolt, With Washer
Loading…
↗
11
6K3855250100
Cover
Loading…
↗
12
970950601600
Bolt, hexagon deep recess
Loading…
↗
14
970850601000
Bolt
Loading…
↗
16
6K3835570000
Tube
Loading…
↗
