F45A (1997)
Electrical 1

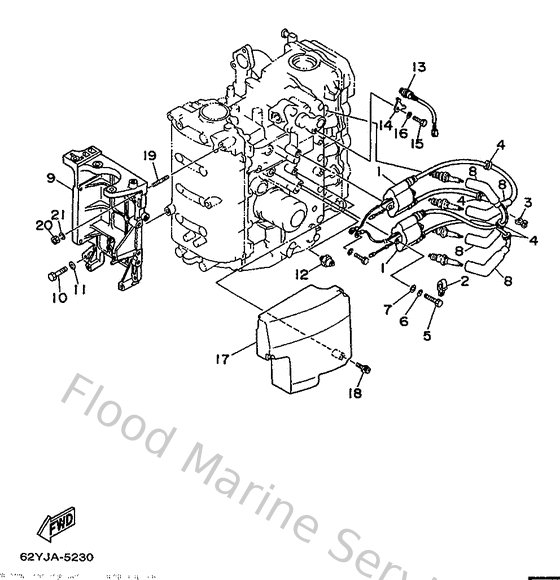

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
62Y855700000
Ignition coil assembly
Loading…
↗
2
9046506M2800
Clamp(6h4)
Loading…
↗
3
9046407M4100
Clamp(62y)
Loading…
↗
4
904802516100
Grommet(656)
Loading…
↗
5
970950603000
Bolt(jf7)
Loading…
↗
6
929950610000
Washer(6a1)
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
6G8823702000
Plug cap assembly
Loading…
↗
9
62Y818220094
Bracket, Starting Motor
Loading…
↗
10
970950803500
Bolt(70w)
Loading…
↗
11
929900860000
Washer, plain (663)
Loading…
↗
12
62Y825040000
Oil pressure switch assembly
Loading…
↗
13
62Y825600100
Thermo switch assembly
Loading…
↗
14
6E9825880000
Plate
Loading…
↗
15
970950601200
Bolt(gh1)
Loading…
↗
17
62Y855990000
Cover
Loading…
↗
18
9015906M0800
Screw, with washer(6k7)
Loading…
↗
19
9011608M1400
Bolt, stud (6e5)
Loading…
↗
20
953800860000
Nut (661)
Loading…
↗
21
929900810000
Ybs67-8 washer, spring
Loading…
↗
