115BETO (1990)
Electrical 2

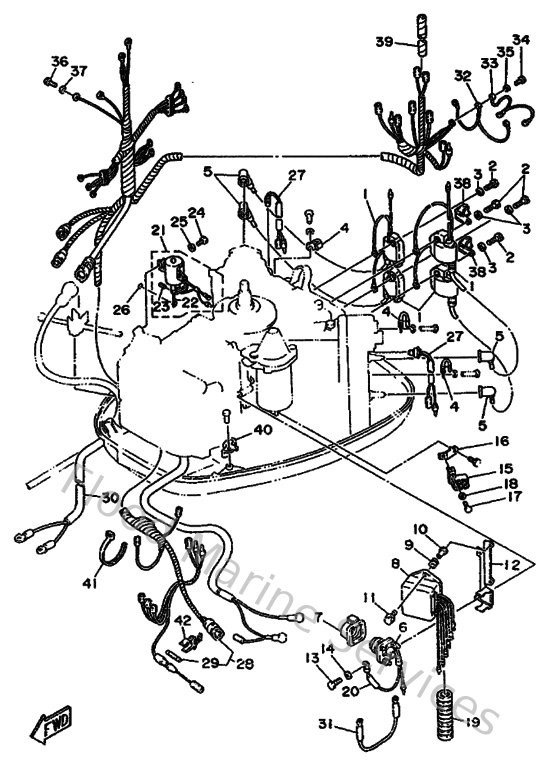

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
6E5855701000
Ignition coil assy
Loading…
↗
2
973130603000
Bolt
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
904650802800
Clamp (1e6)
Loading…
↗
5
6G1823702100
Plug cap assy
Loading…
↗
6
6E5819411100
Starter relay assy
Loading…
↗
7
689819521000
Holder, starter relay
Loading…
↗
8
6G5819500100
Relay Assy
Loading…
↗
9
6A0823170000
Damper, ignition coil
Loading…
↗
10
903870611900
Collar
Loading…
↗
11
9011906M6400
Bolt, with washer
Loading…
↗
13
973950601600
Bolt, hexagon deep recess
Loading…
↗
15
6H5819200000
Terminal assy
Loading…
↗
16
6G5819290000
Bracket, Terminal
Loading…
↗
17
973950601200
Bolt(gh1)
Loading…
↗
19
6G1835570000
Tube
Loading…
↗
21
6E5861100200
Solenoid
Loading…
↗
22
6E5861160100
Wire, pull
Loading…
↗
23
916093001000
Pin, spring (663)
Loading…
↗
24
973130601600
Bolt, hexagon deep recess
Loading…
↗
26
932100326100
O-ring (663)
Loading…
↗
27
688825601000
Thermo switch assy
Loading…
↗
30
6R382105J200
Battery cable
Loading…
↗
31
6E5821170000
Wire, lead
Loading…
↗
32
6E5825190000
Wire, Earth Lead
Loading…
↗
33
6E5825310000
Wire, lead
Loading…
↗
34
970800601200
Bolt(gh1)
Loading…
↗
36
973130602000
Bolt(7u8)
Loading…
↗
38
9046508M0800
Clamp (6e5)
Loading…
↗
39
9044610M0100
Tube (6e5)
Loading…
↗
40
9046512M2500
Clamp (6e5)
Loading…
↗
41
9046513M1800
Clamp
Loading…
↗
42
6G5821520000
Holder, fuse
Loading…
↗
