F100AET (2001)
Electrical 2

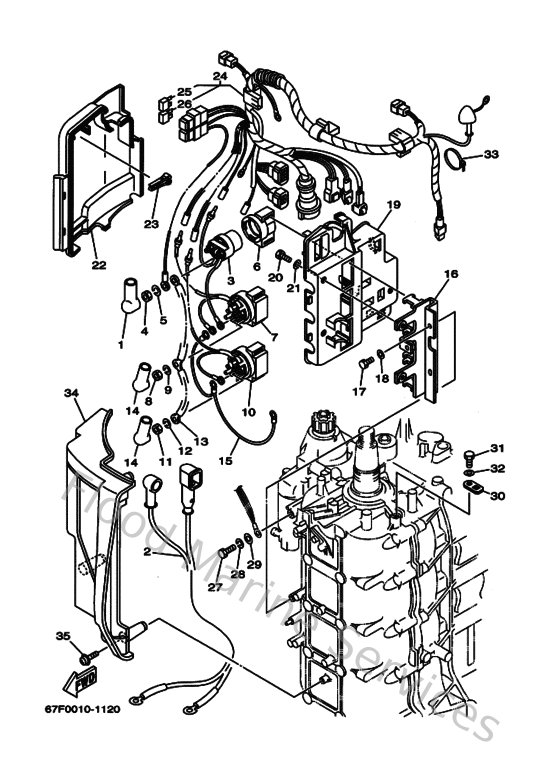

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
682821190100
Cover, lead wire
Loading…
↗
2
67F821050000
Battery cable
Loading…
↗
3
6G18194A1000
Starter relay
Loading…
↗
4
9017006M3000
Nut(62x)
Loading…
↗
5
9020406M0000
Washer, spring(62x)
Loading…
↗
6
6G1819520000
Holder, relay
Loading…
↗
7
6E58195B0100
Relay assembly
Loading…
↗
10
6E58195A0100
Relay assembly
Loading…
↗
13
66T871490000
Connector
Loading…
↗
14
6G5821190000
Cover, lead wire
Loading…
↗
15
67F821160000
Wire, minus lead
Loading…
↗
16
67F819530000
Stay, relay
Loading…
↗
17
970950601600
Bolt, hexagon deep recess
Loading…
↗
18
929950660000
Washer, plain (646)
Loading…
↗
19
67F819480000
Bracket
Loading…
↗
22
67F819420000
Cover
Loading…
↗
23
67F2812A0000
Puller, fuse
Loading…
↗
24
67F825900100
Wire Harness assembly
Loading…
↗
25
5JJ821512000
Fuse
Loading…
↗
26
67F821511000
Fuse
Loading…
↗
27
970950602000
Bolt(7u8)
Loading…
↗
28
929950610000
Washer(6a1)
Loading…
↗
30
67F825880000
Plate
Loading…
↗
31
970950601200
Bolt(gh1)
Loading…
↗
32
929900660000
Washer, plain (646)
Loading…
↗
33
9046513M1100
Clamp (6e5)
Loading…
↗
34
67F819160000
Cover, terminal
Loading…
↗
35
9015906M2900
Screw, with washer
Loading…
↗
