LZ150Q (2001)
Electrical 4

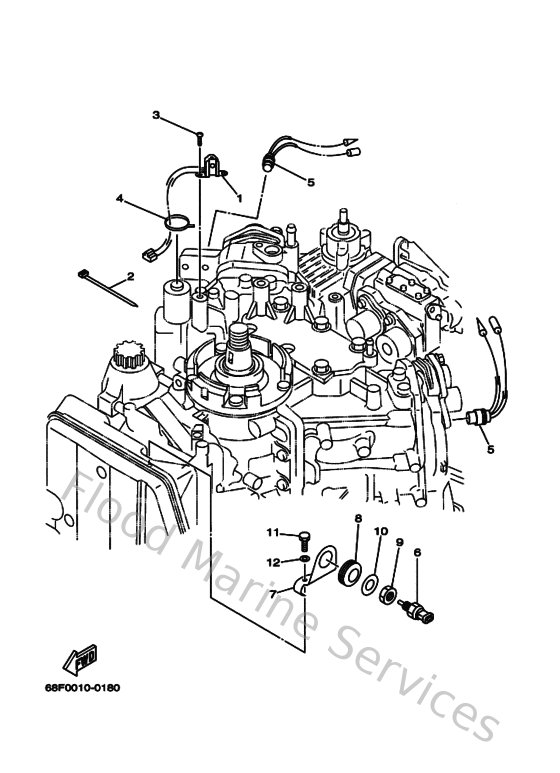

Diagram: Electrical 4
Parts List
Reference
Description
Price
1
61A858950000
Crank position sender
Loading…
↗
2
9046513M1800
Clamp
Loading…
↗
3
978850501200
Screw,pan head (646)
Loading…
↗
4
9046513M3000
Clamp
Loading…
↗
5
688825601000
Thermo switch assembly
Loading…
↗
6
65L858860000
Thermosensor
Loading…
↗
9
9017912M3700
Nut
Loading…
↗
10
9020112M0800
Washer, Plate
Loading…
↗
11
970950601600
Bolt, hexagon deep recess
Loading…
↗
12
929950660000
Washer, plain (646)
Loading…
↗
