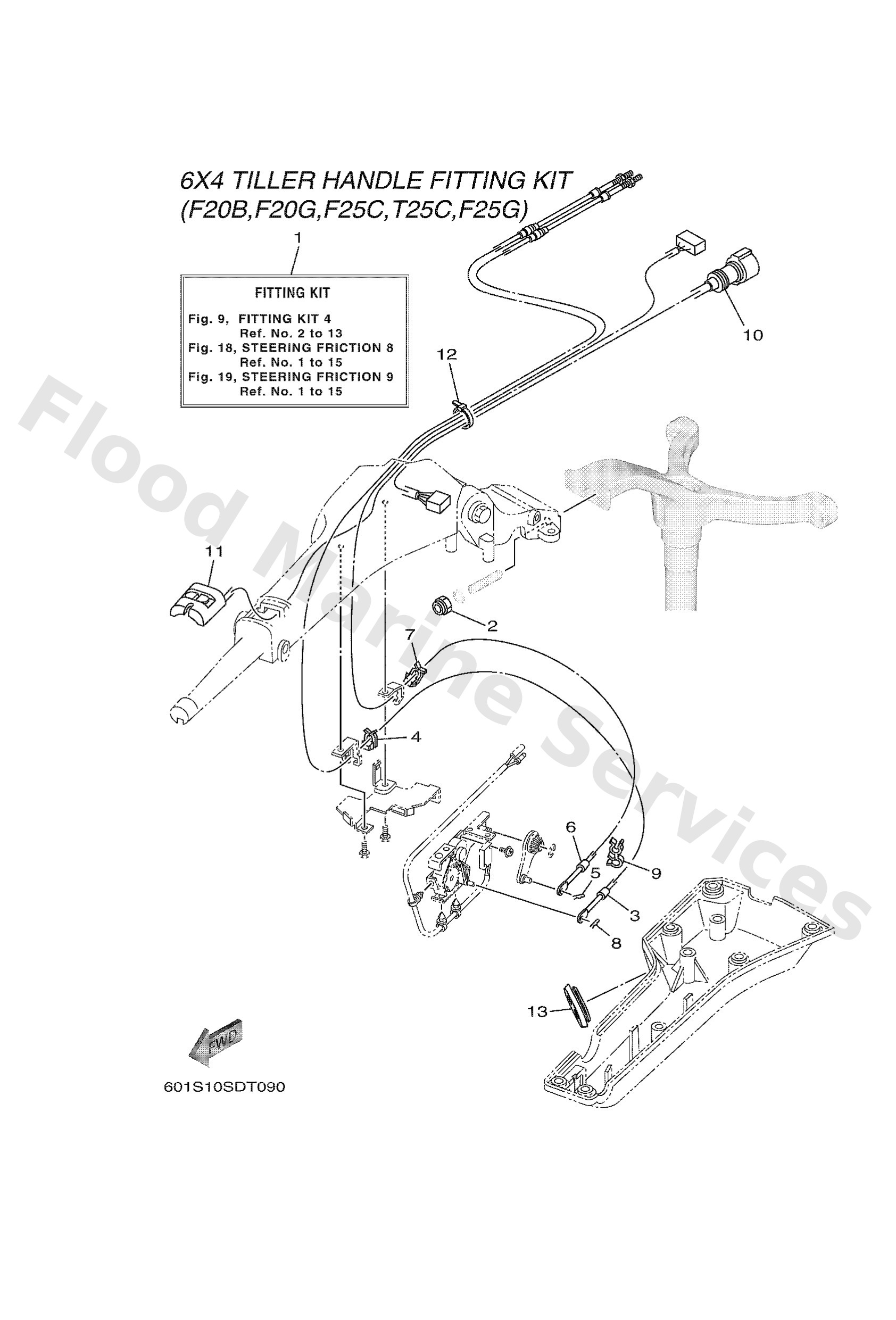

Diagram: FITTING KIT 4

Diagram

Parts List

6X442102K2 (LM FOR USA,CAN)
-
Diagram Reference: 1
Get Part
6X442102F2 (LM FOR EUR,OCE)
Fitting kit f25g
Diagram Reference: 1
Get Part
6X442102L2 (LM FOR EUR,OCE)
Fitting kit f20g
Diagram Reference: 1
Get Part
6X442102E2 (LM FOR USA,CAN)
-
Diagram Reference: 1
Get Part
9018510027
Nut, self-locking
Diagram Reference: 2
Get Part
63D4832111
Cable
Diagram Reference: 3
Get Part
63D4853800
Clamp, cable 1
Diagram Reference: 4
Get Part
9046810005
Pin, hair 6264123500
Diagram Reference: 5
Get Part
6FM2630110
Throttle cable assembly
Diagram Reference: 6
Get Part
9046409M42
Clamp(6b0)
Diagram Reference: 9
Get Part
6X48258611
Ext., wire harness (l:950mm)
Diagram Reference: 10
Get Part
6X48186000
Switch assembly
Diagram Reference: 11
Get Part
9046513M39
Clamp(6e8)
Diagram Reference: 12
Get Part
6H34272701 (FOR EUR,OCE)
Grommet
Diagram Reference: 13
Get Part
