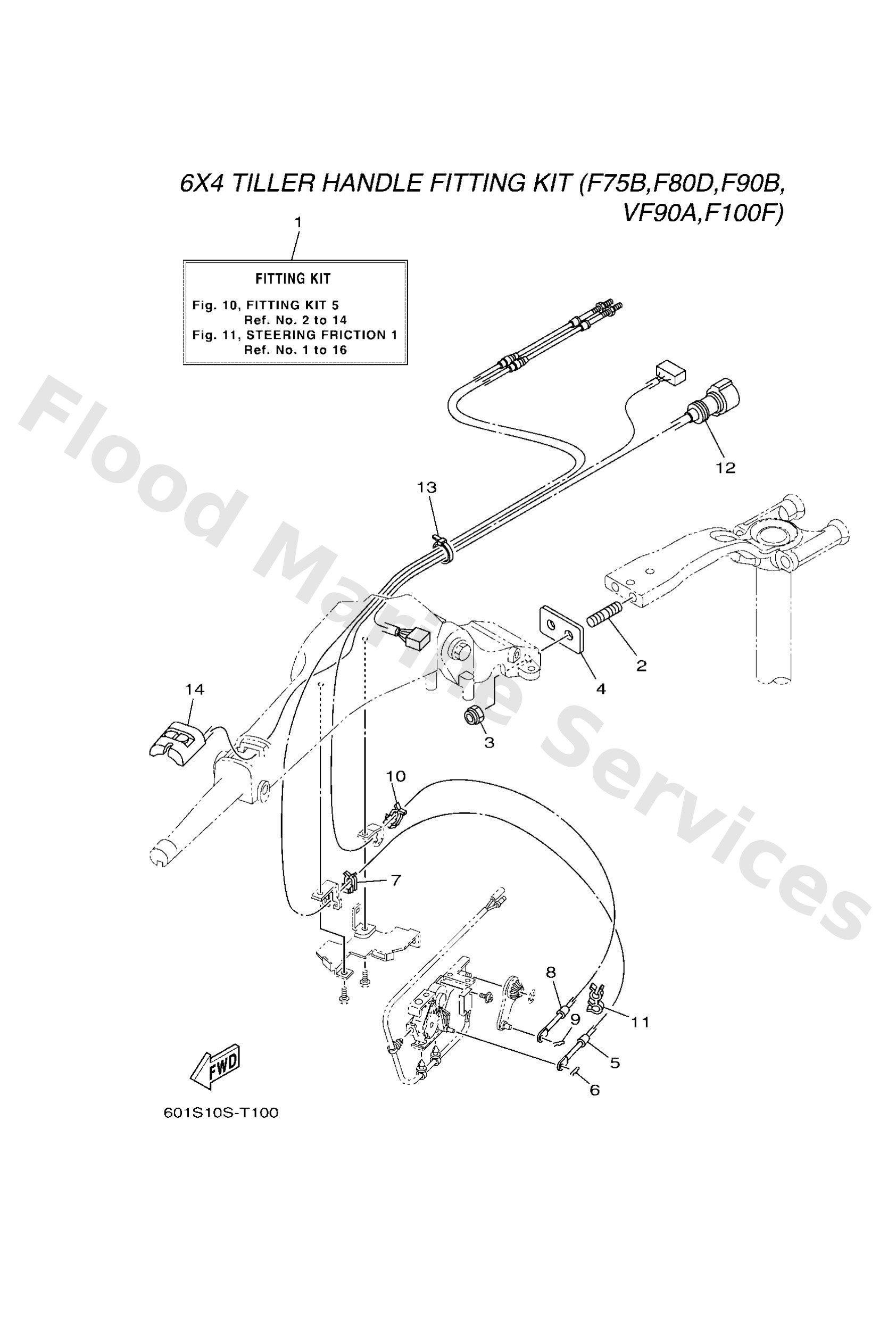

Diagram: FITTING KIT 5

Diagram

Parts List

6X442102G1 (LM FOR EUR,OCE)
Tiller fitting kit, f80d-f100f
Diagram Reference: 1
Get Part
9011610063
Bolt, stud
Diagram Reference: 2
Get Part
9018510027
Nut, self-locking
Diagram Reference: 3
Get Part
6EK4212100
Bracket
Diagram Reference: 4
Get Part
6EK4832100
Cable
Diagram Reference: 5
Get Part
9046810005
Pin, hair 6264123500
Diagram Reference: 6
Get Part
63D4853800
Clamp, cable 1
Diagram Reference: 7
Get Part
6FP2630100
Throttle cable assembly
Diagram Reference: 8
Get Part
9046409M42
Clamp(6b0)
Diagram Reference: 11
Get Part
6X48258610
Ext., wire harness (l:950mm)
Diagram Reference: 12
Get Part
9046513M24
Band, switch cord
Diagram Reference: 13
Get Part
6X48186000
Switch assembly
Diagram Reference: 14
