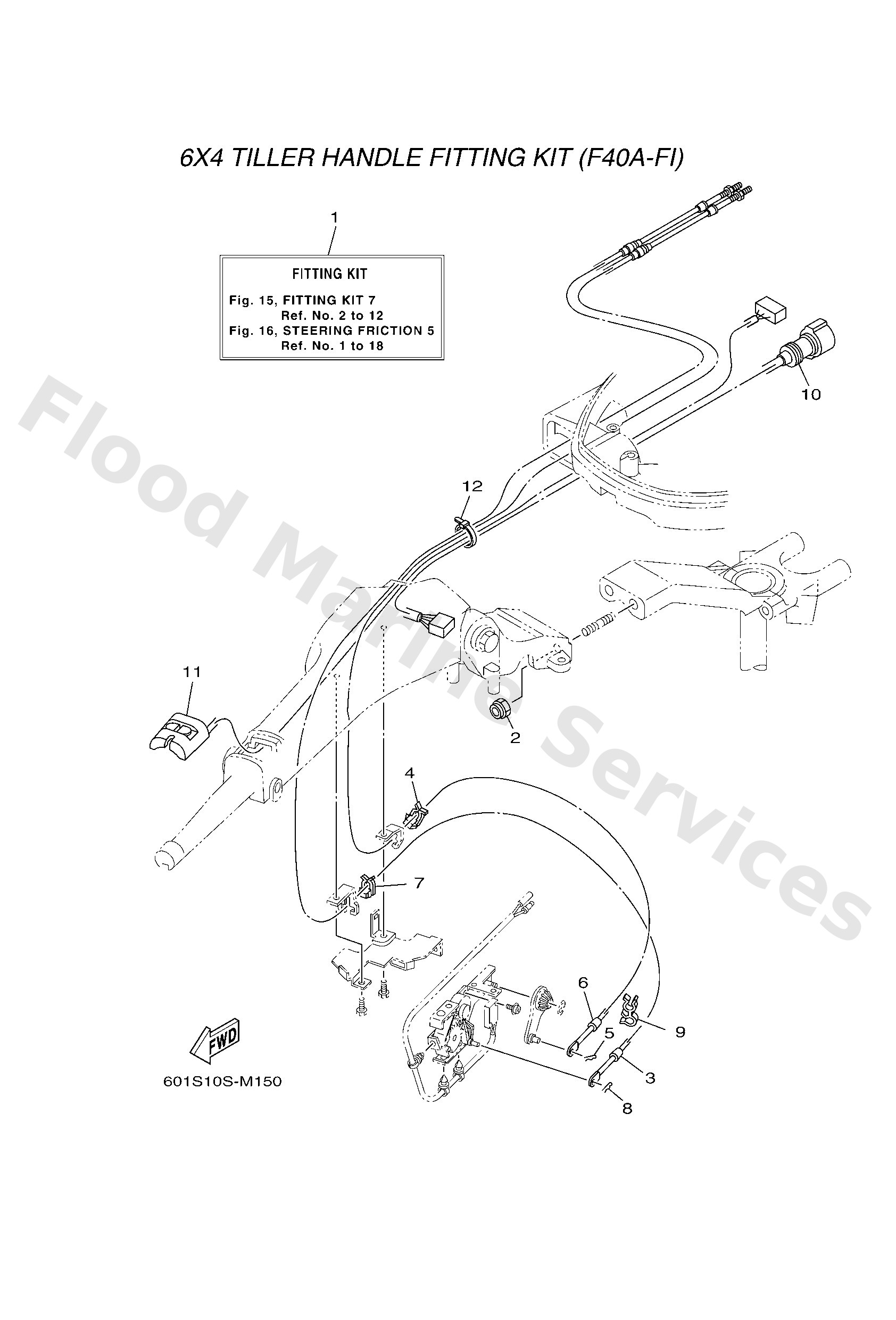

Diagram: FITTING KIT 7

Diagram

Parts List

6X44210270 (LM)
Tiller handle fit f30b / f40f
Diagram Reference: 1
Get Part
9018510051
Nut, self-locking
Diagram Reference: 2
Get Part
67C4832111
Cable
Diagram Reference: 3
Get Part
63D4853800
Clamp, cable 1
Diagram Reference: 4
Get Part
9046810005
Pin, hair 6264123500
Diagram Reference: 5
Get Part
69W2630100
Throttle cable assembly
Diagram Reference: 6
Get Part
9046409M42
Clamp(6b0)
Diagram Reference: 9
Get Part
6X48258610
Ext., wire harness (l:950mm)
Diagram Reference: 10
Get Part
6X48186000
Switch assembly
Diagram Reference: 11
Get Part
9046513M36
Clamp(6h4)
Diagram Reference: 12
Get Part
