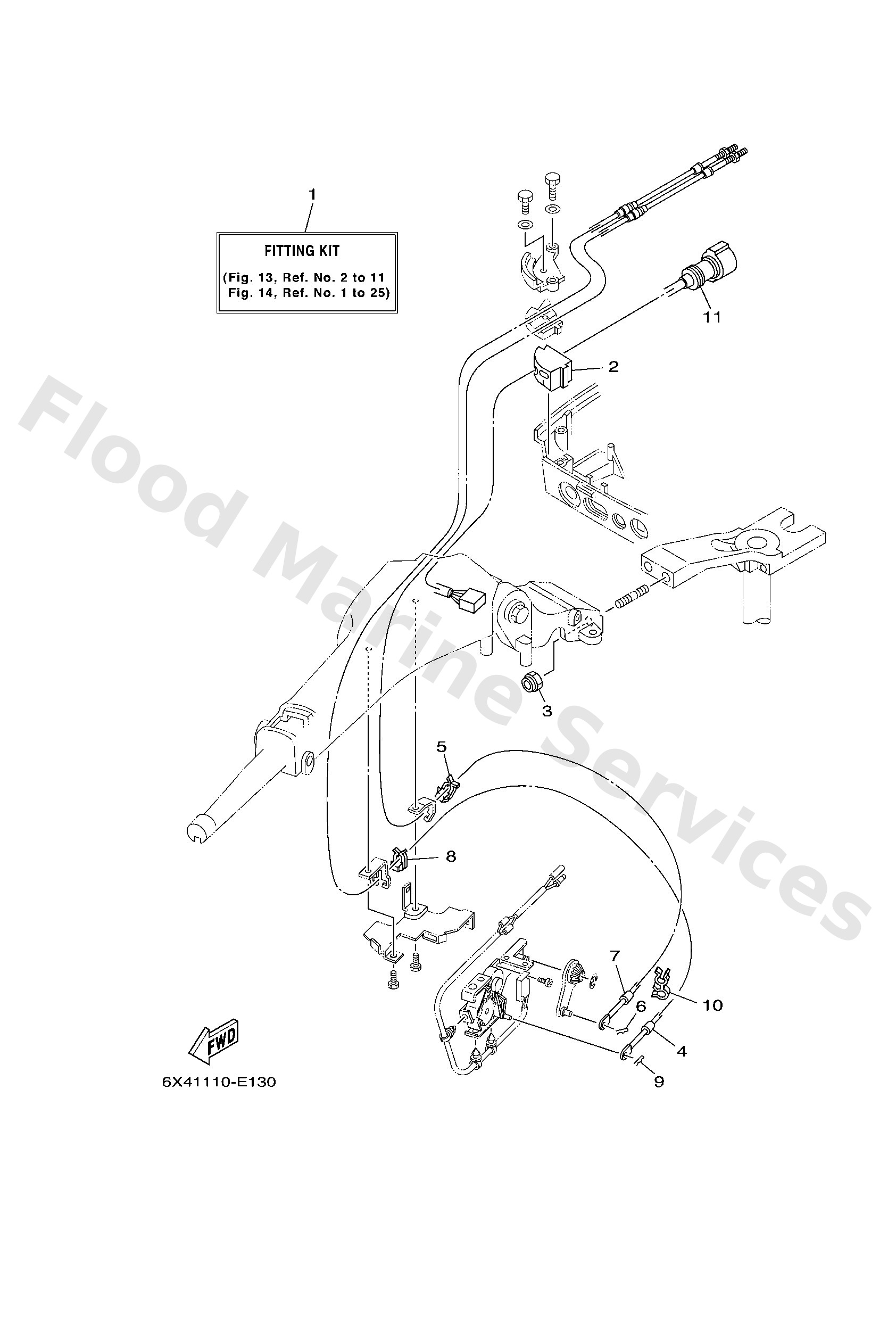

Diagram: FITTING KIT- 40, 50

Diagram

Parts List

6X44210260 (LM)
40/50 tiller fitting kit
Diagram Reference: 1
Get Part
6H44272420
Grommet
Diagram Reference: 2
Get Part
9018510051
Nut, self-locking
Diagram Reference: 3
Get Part
63D4832110
Cable
Diagram Reference: 4
Get Part
63D4853800
Clamp, cable 1
Diagram Reference: 5
Get Part
9046810005
Pin, hair 6264123500
Diagram Reference: 6
Get Part
63D2630101
Throttle cable assembly
Diagram Reference: 7
Get Part
9046409M42
Clamp(6b0)
Diagram Reference: 10
Get Part
6X48258600
Ext., wire harness (l: 700mm)
Diagram Reference: 11
Get Part
