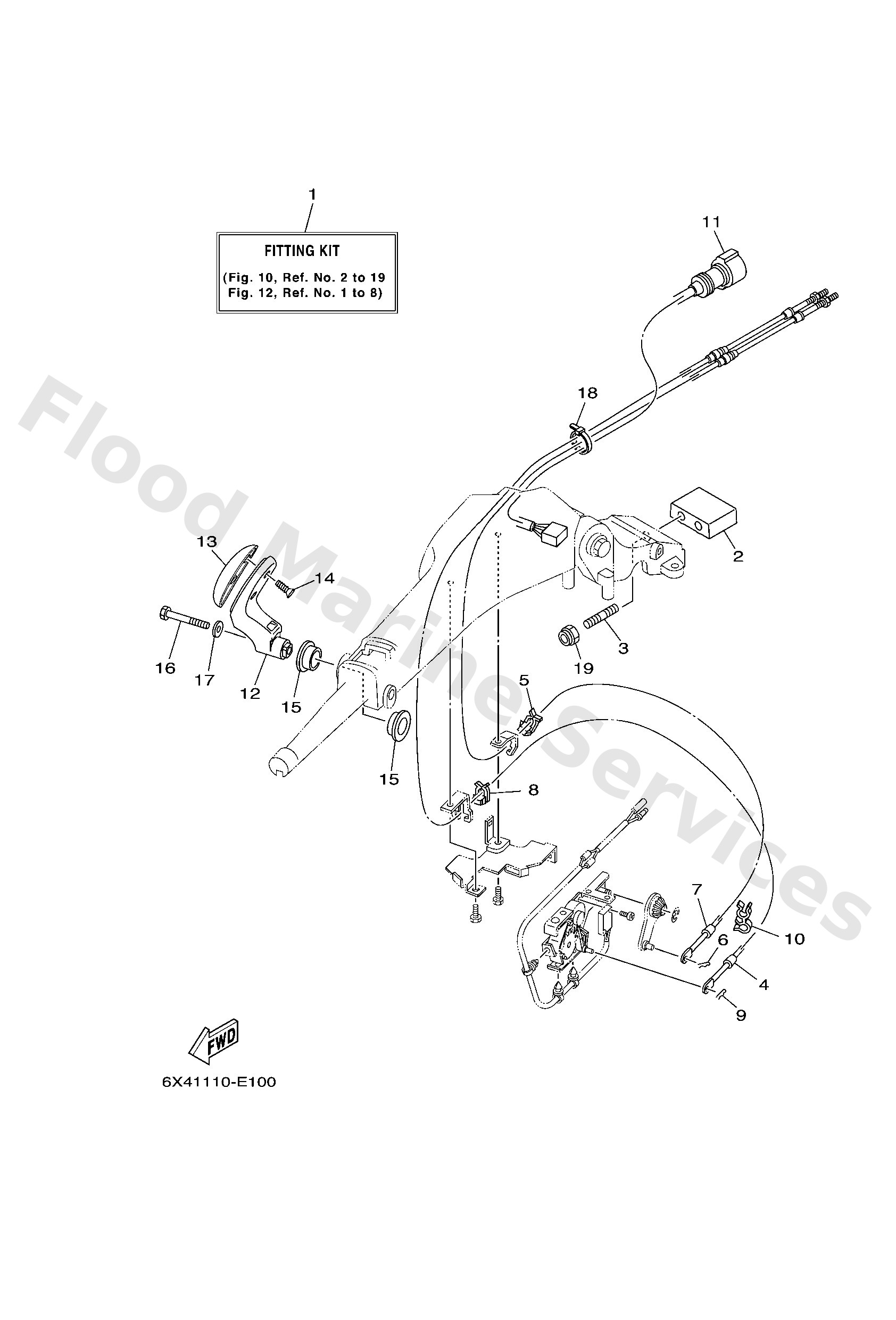

Diagram: FITTING KIT- 90

Diagram

Parts List

6X44210240 (LM)
F30/f40fi handle fitting kit
Diagram Reference: 1
Get Part
6X442121004D
Bracket
Diagram Reference: 2
Get Part
9011610031
Bolt, stud
Diagram Reference: 3
Get Part
6H14832110
Cable
Diagram Reference: 4
Get Part
63D4853800
Clamp, cable 1
Diagram Reference: 5
Get Part
9046810005
Pin, hair 6264123500
Diagram Reference: 6
Get Part
6H12630101
Throttle cable assembly
Diagram Reference: 7
Get Part
9046409M42
Clamp(6b0)
Diagram Reference: 10
Get Part
6X48258630
Extension, wire harness
Diagram Reference: 11
Get Part
6X444159104D
Handle, gear shift
Diagram Reference: 12
Get Part
6X44417300
Lever, shift control
Diagram Reference: 13
Get Part
9778060920
Screw, tapping
Diagram Reference: 14
Get Part
9038626MA3
Bush
Diagram Reference: 15
Get Part
9709508040
Bolt, hexagon
Diagram Reference: 16
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 17
Get Part
9046513M36
Clamp(6h4)
Diagram Reference: 18
Get Part
9018510051
Nut, self-locking
Diagram Reference: 19
Get Part
