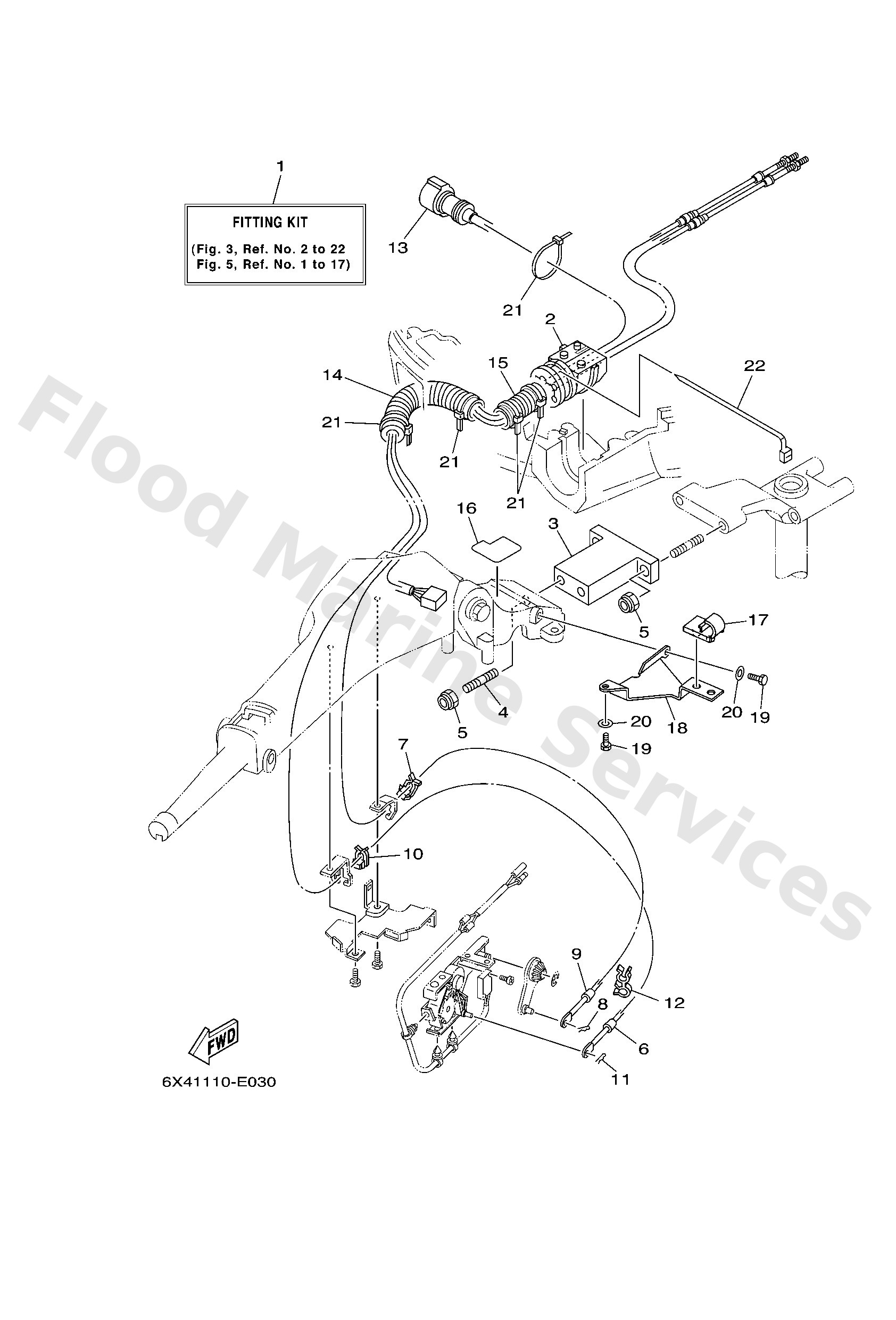

Diagram: FITTING KIT- F115

Diagram

Parts List

6X44210200 (LM)
-
Diagram Reference: 1
Get Part
68V4272510
Grommet
Diagram Reference: 2
Get Part
6X442121104D
Bracket
Diagram Reference: 3
Get Part
9011610175
Bolt, stud
Diagram Reference: 4
Get Part
9018510051
Nut, self-locking
Diagram Reference: 5
Get Part
67G4832120
Cable
Diagram Reference: 6
Get Part
63D4853800
Clamp, cable 1
Diagram Reference: 7
Get Part
9046810005
Pin, hair 6264123500
Diagram Reference: 8
Get Part
67G2630110
Throttle cable assembly
Diagram Reference: 9
Get Part
9046409M42
Clamp(6b0)
Diagram Reference: 12
Get Part
6X48258620
Ext., wire harness (l:1.25m)
Diagram Reference: 13
Get Part
9044722007
Hose, with spring
Diagram Reference: 14
Get Part
6G58355700
Tube
Diagram Reference: 15
Get Part
6X44273500
Protector
Diagram Reference: 16
Get Part
63D2436700
Clamp, fuel pipe 2
Diagram Reference: 17
Get Part
6X42436400
Stay
Diagram Reference: 18
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 19
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 20
Get Part
9046513M24
Band, switch cord
Diagram Reference: 21
Get Part
9046513M30
Clamp
Diagram Reference: 22
