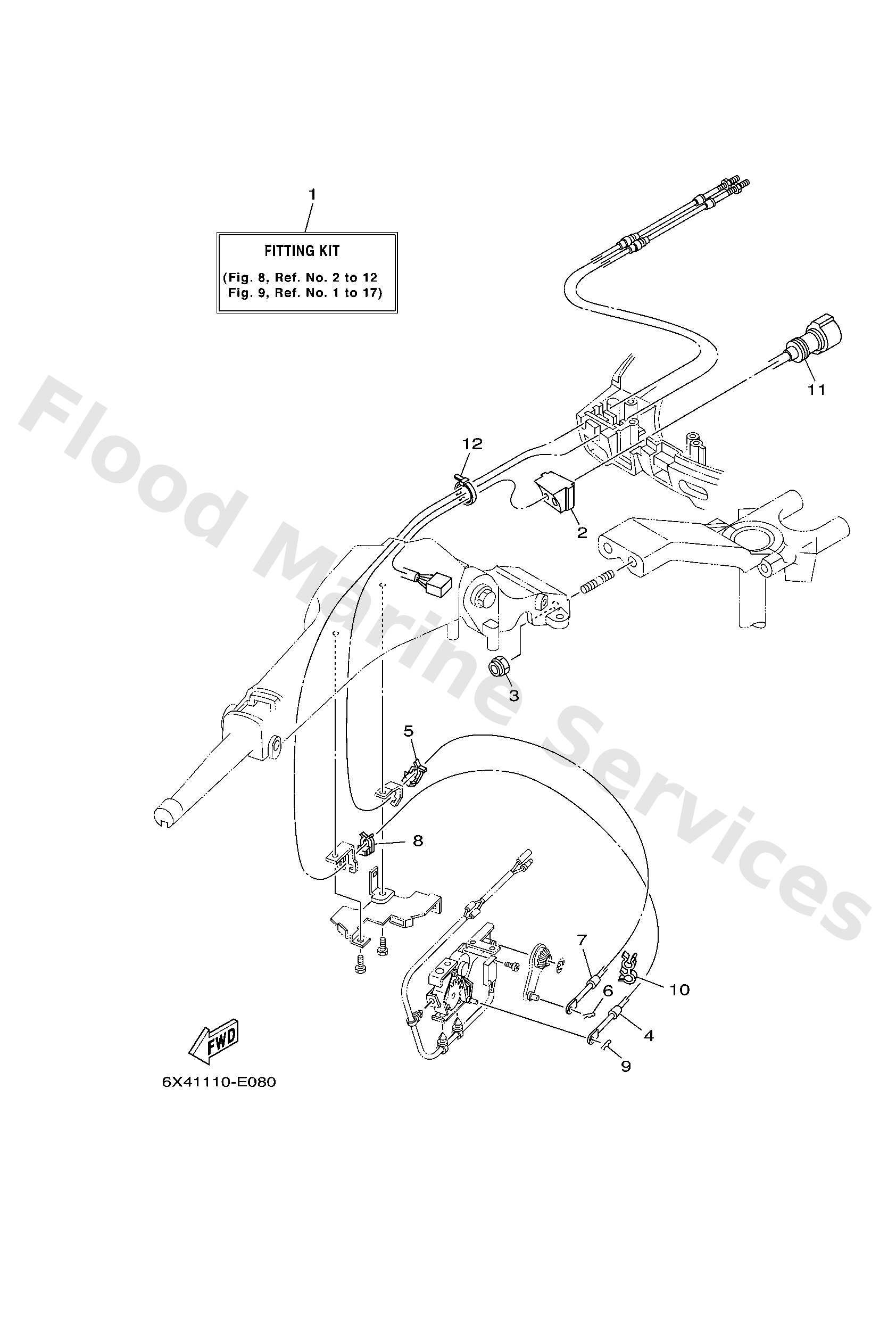

Diagram: FITTING KIT- F30, F40

Diagram

Parts List

6X44210230 (LM)
-
Diagram Reference: 1
Get Part
62Y4272530
Grommet
Diagram Reference: 2
Get Part
9018510051
Nut, self-locking
Diagram Reference: 3
Get Part
67C4832110
Cable
Diagram Reference: 4
Get Part
63D4853800
Clamp, cable 1
Diagram Reference: 5
Get Part
9046810005
Pin, hair 6264123500
Diagram Reference: 6
Get Part
69W2630100
Throttle cable assembly
Diagram Reference: 7
Get Part
9046409M42
Clamp(6b0)
Diagram Reference: 10
Get Part
6X48258600
Ext., wire harness (l: 700mm)
Diagram Reference: 11
Get Part
9046513M36
Clamp(6h4)
Diagram Reference: 12
Get Part
