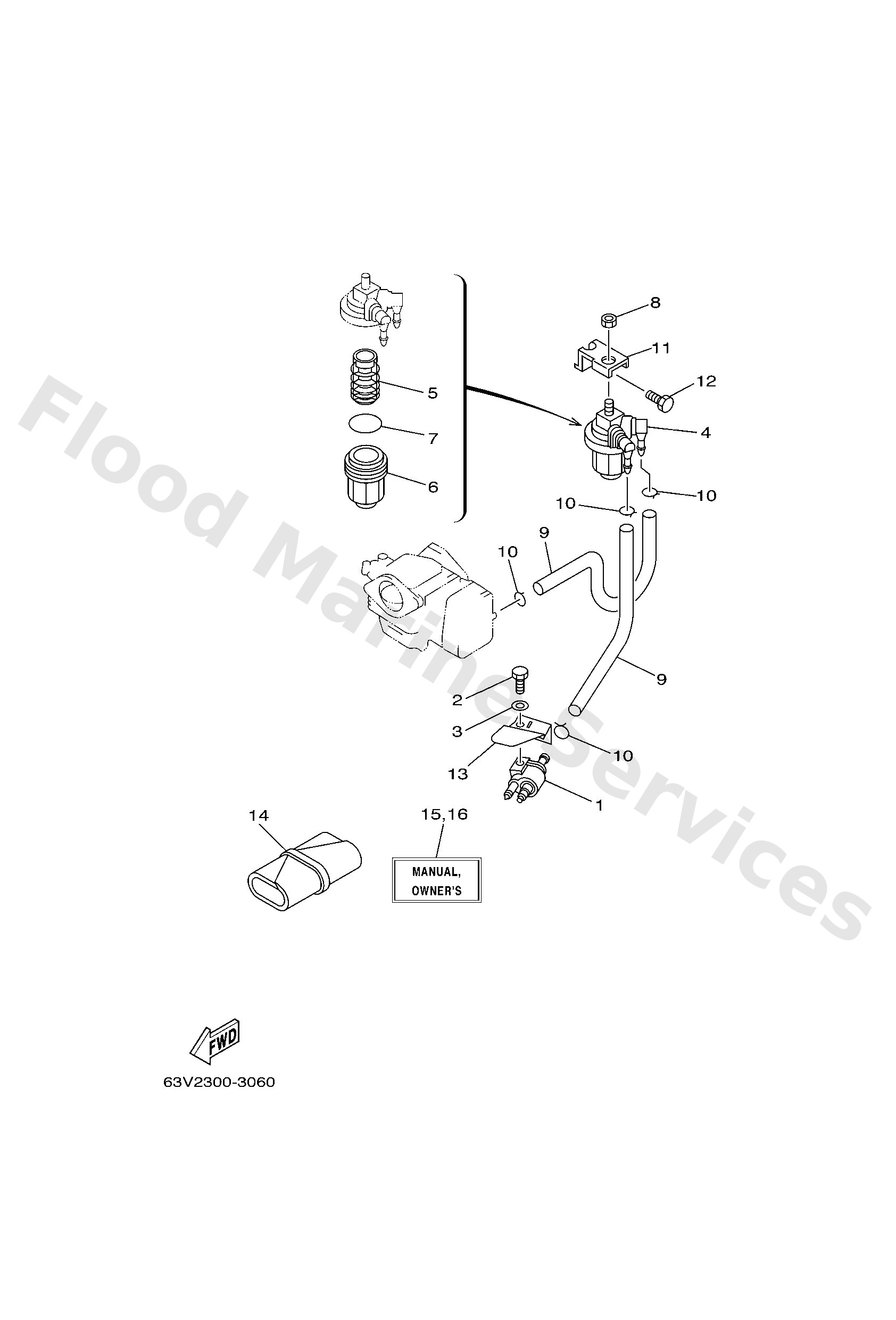

Diagram: FUEL
Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Bolt(7u8)
Diagram Reference: 2
Washer, plain (646)
Diagram Reference: 3
Filter assembly
Diagram Reference: 4
Element, filter
Diagram Reference: 5
Cup, filter
Diagram Reference: 6
O-ring(1wg)
Diagram Reference: 7
Nut (661)
Diagram Reference: 8
Hose (l180)
Diagram Reference: 9
Clip, pipe 6162435600
Diagram Reference: 10
Bracket, filter
Diagram Reference: 11
Bolt(63v)
Diagram Reference: 12
Plate
Diagram Reference: 13
Tool kit
Diagram Reference: 14
Manual,owner's
Diagram Reference: 15
Manual,owner's
Diagram Reference: 15
Manual,owner's
Diagram Reference: 15
Manual,owner's
Diagram Reference: 15
Manual,owner's
Diagram Reference: 15
Manual,owner's
Diagram Reference: 15
Manual,owner's
Diagram Reference: 16
Manual,owner's
Diagram Reference: 16
Manual,owner's
Diagram Reference: 16
Manual,owner's
Diagram Reference: 16
Manual,owner's
Diagram Reference: 16
Manual,owner's
Diagram Reference: 16
