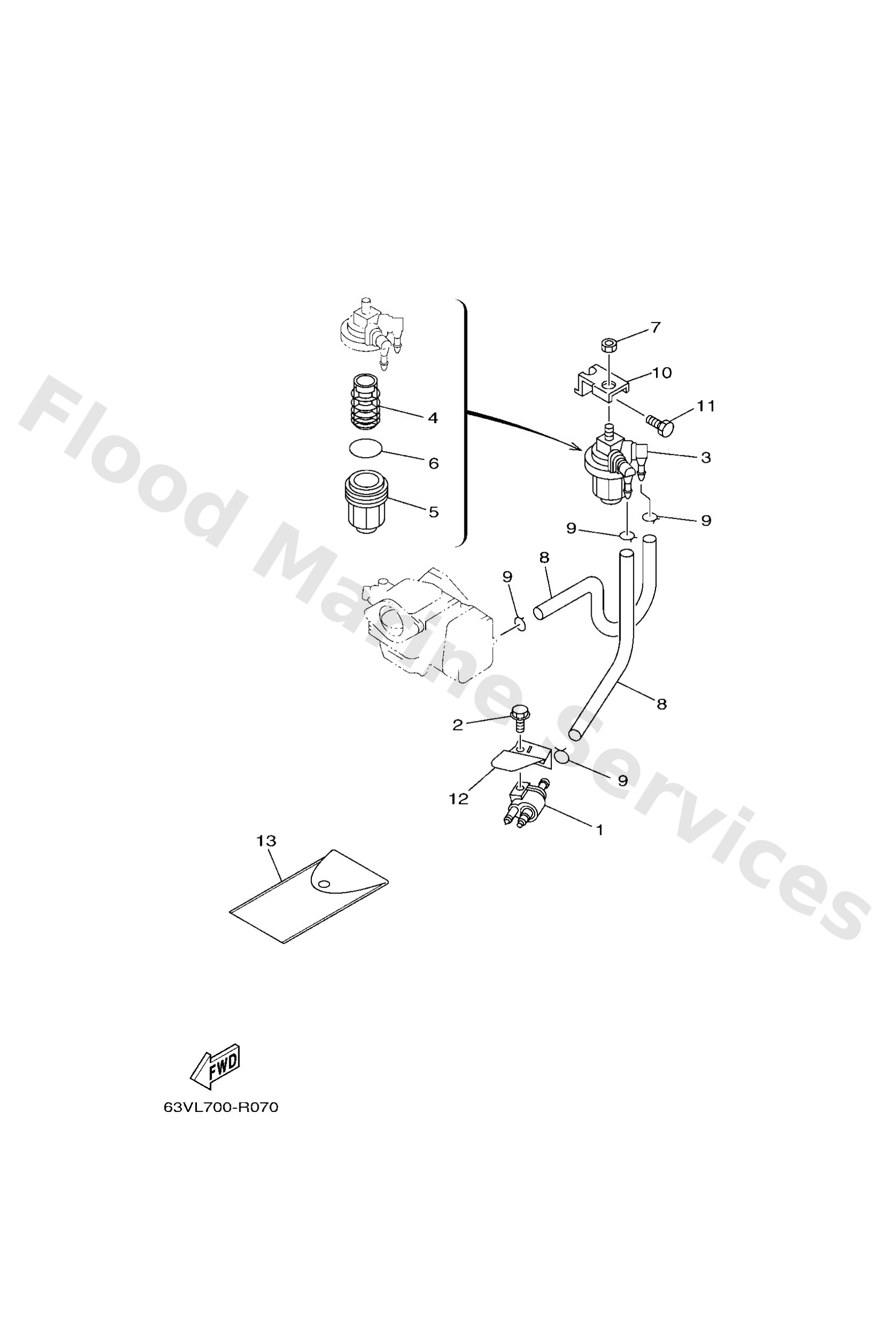

Diagram: FUEL

Diagram

Parts List

6G12430410
Fuel pipe joint comp. 1
Diagram Reference: 1
Get Part
97E9506520
Bolt, hexagon w/w deep recess
Diagram Reference: 2
Get Part
61N2456000
Filter assembly
Diagram Reference: 3
Get Part
61N2456300
Element, filter
Diagram Reference: 4
Get Part
61N2452100
Cup, filter
Diagram Reference: 5
Get Part
9321032738
O-ring(1wg)
Diagram Reference: 6
Get Part
9538008600
Nut (661)
Diagram Reference: 7
Get Part
9044509M00
Hose (l180)
Diagram Reference: 8
Get Part
9046708004
Clip, pipe 6162435600
Diagram Reference: 9
Get Part
6822456601
Bracket, filter
Diagram Reference: 10
Get Part
9701306010
Bolt(63v)
Diagram Reference: 11
Get Part
63V2439601
Plate
Diagram Reference: 12
Get Part
656W281003 (AP)
Tool kit
Diagram Reference: 13
