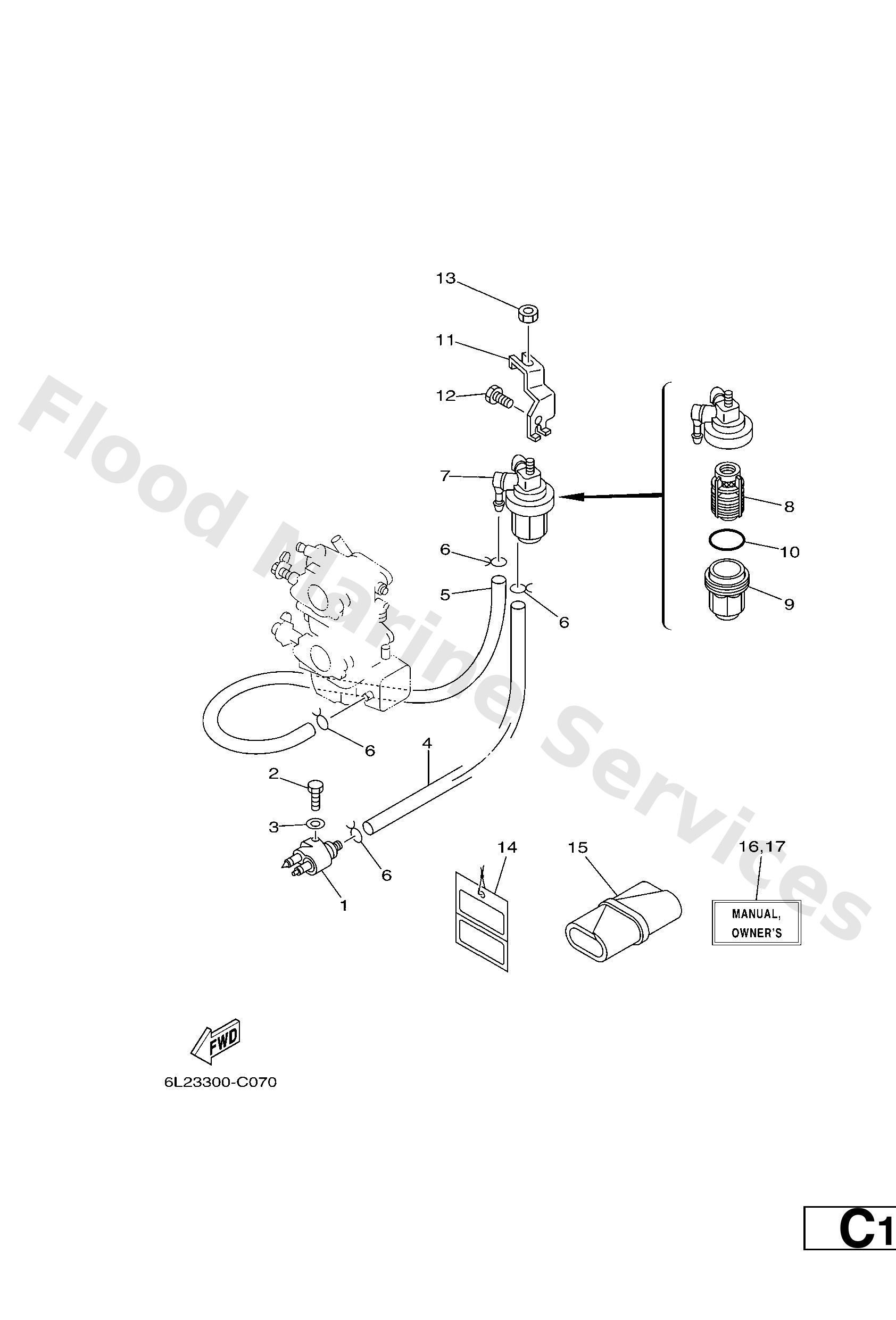

Diagram: FUEL

Diagram

Parts List

6G12430402

Fuel pipe joint comp. 1

Diagram Reference: 1

9709506020

Bolt(7u8)

Diagram Reference: 2

9299506600

Washer, plain (646)

Diagram Reference: 3

6H42431100

Pipe 1

Diagram Reference: 4

6L22431100

Pipe, fuel 1

Diagram Reference: 5

9046708004

Clip, pipe 6162435600

Diagram Reference: 6

61N2456000

Filter assembly

Diagram Reference: 7

61N2456300

Element, filter

Diagram Reference: 8

61N2452100

Cup, filter

Diagram Reference: 9

9321032738

O-ring(1wg)

Diagram Reference: 10

6L22456600

Bracket, filter

Diagram Reference: 11

9701306014

Bolt(gj3)

Diagram Reference: 12

9538008600

Nut (661)

Diagram Reference: 13

61H2819R31

-

Diagram Reference: 14

656W281002

Tool kit

Diagram Reference: 15

6L32819978E0 (UR (E))

Om 25n/20d '06

Diagram Reference: 16

6L32819978F0 (UR (F))

Om 25n/20d '06

Diagram Reference: 16

6L32819978S0 (UR (ES))

Om 25n/20d '06

Diagram Reference: 16

6L32819978G0 (UR (D))

Om 25n/20d '06

Diagram Reference: 16

6L32819978D0 (UR (NL))

Om 25n/20d '06

Diagram Reference: 16

6L32819978H0 (UR (I))

Om 25n/20d '06

Diagram Reference: 16

6L32819989K0 (UR (DK))

Om 25n/20d '06

Diagram Reference: 17

6L32819989R0 (UR (GR))

Om 25n/20d '06

Diagram Reference: 17

6L32819989P0 (UR (P))

Om 25n/20d '06

Diagram Reference: 17

6L32819989N0 (UR (N))

Om 25n/20d '06

Diagram Reference: 17

6L32819989M0 (UR (S))

Om 25n/20d '06

Diagram Reference: 17

6L32819989L0 (UR (SF))

Om 25n/20d '06

Diagram Reference: 17
