25B (2010)
FUEL

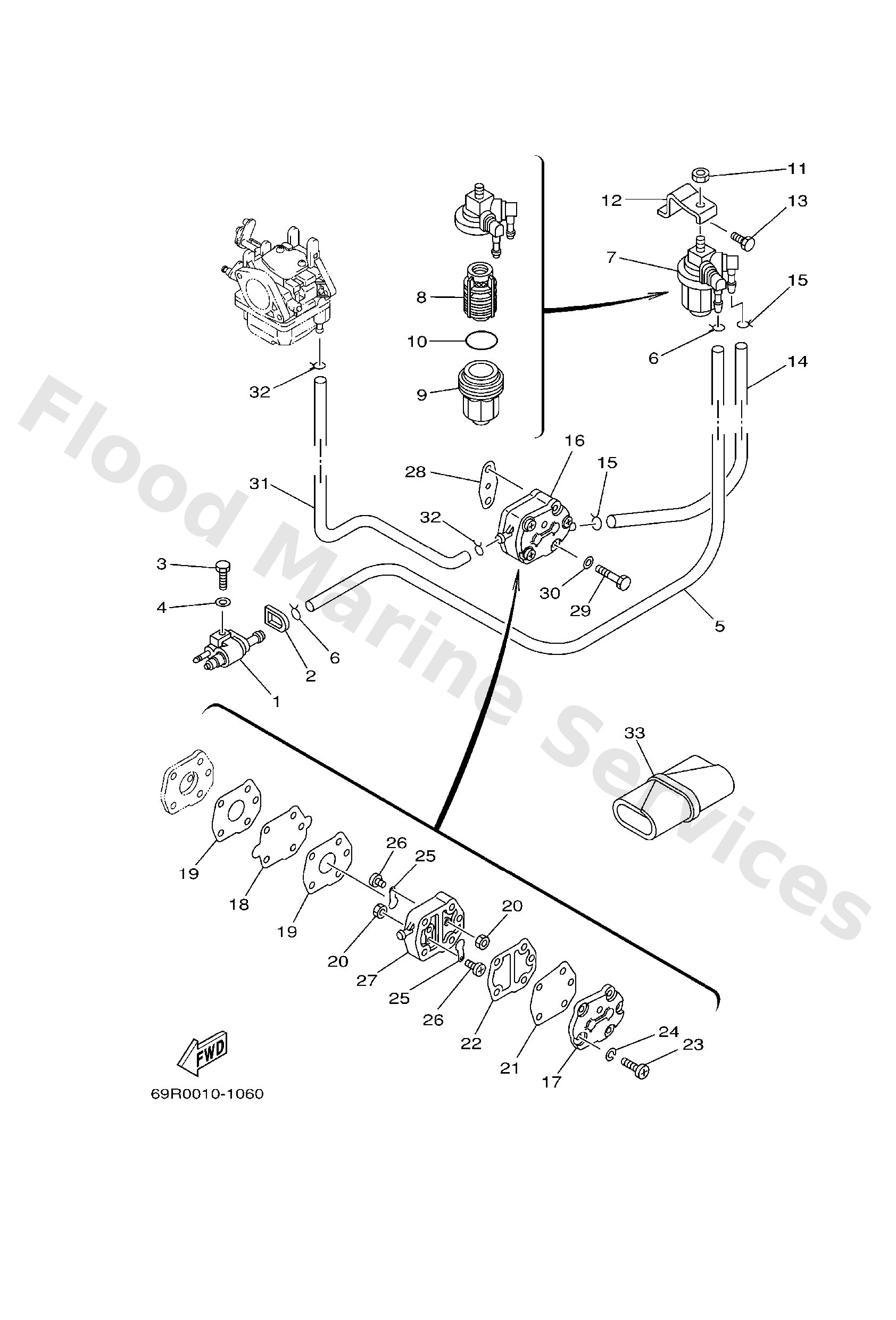

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
61N2432900
Seal
Loading…
↗
3
9709506020
Bolt(7u8)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
9044509M75
Hose (l1500)
Loading…
↗
6
9046708004
Clip, pipe 6162435600
Loading…
↗
7
61N2456000
Filter assembly
Loading…
↗
8
61N2456300
Element, filter
Loading…
↗
9
61N2452100
Cup, filter
Loading…
↗
10
9321032738
O-ring(1wg)
Loading…
↗
11
9538008600
Nut (661)
Loading…
↗
12
61N2456601
Bracket, filter
Loading…
↗
13
9701306014
Bolt(gj3)
Loading…
↗
14
6892431100
Hose
Loading…
↗
16
6922441000
Fuel pump assembly
Loading…
↗
17
6A02441300
Cover, pump
Loading…
↗
18
6922441100
Diaphragm
Loading…
↗
19
6482443401
Gasket, body
Loading…
↗
20
9538003600
Nut (6g8)
Loading…
↗
21
6632441100
Diaphragm
Loading…
↗
22
6482443502
Gasket, body 2
Loading…
↗
23
9850305028
Ybs86-530 screw,panhead
Loading…
↗
24
9299005100
Ybs67-5 washer, spring
Loading…
↗
25
6A02442101
Valve, check
Loading…
↗
26
6A01432500
Screw, pan head
Loading…
↗
27
6A02441202
Body 1
Loading…
↗
28
65024431A0
Gasket,fuel pump
Loading…
↗
29
9709506040
Bolt (682)
Loading…
↗
31
6A12431100
Pipe 1
Loading…
↗
33
656W281002
Tool kit
Loading…
↗
