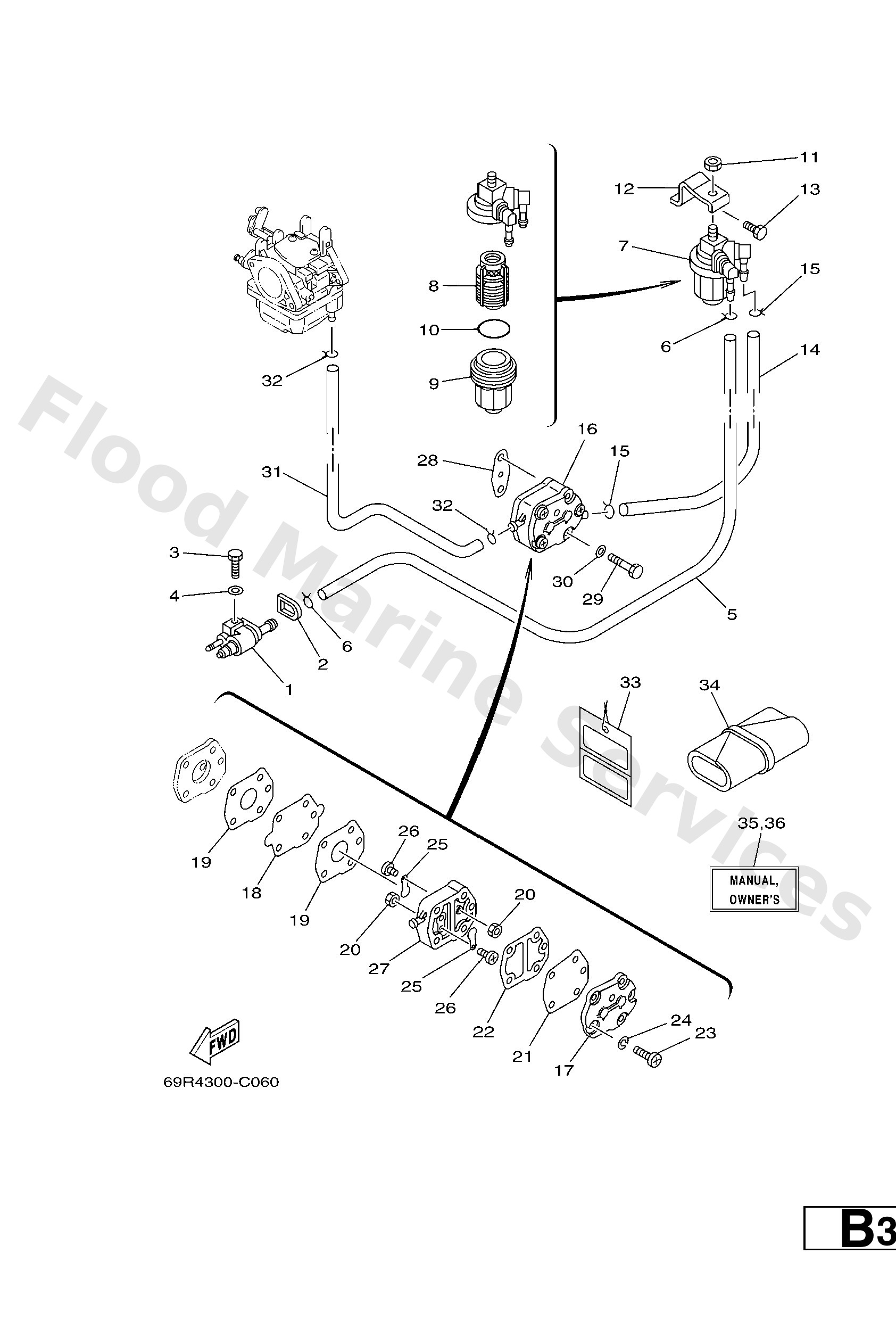

Diagram: FUEL
Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Seal
Diagram Reference: 2
Bolt(7u8)
Diagram Reference: 3
Washer, plain (646)
Diagram Reference: 4
Hose (l1500)
Diagram Reference: 5
Clip, pipe 6162435600
Diagram Reference: 6
Filter assembly
Diagram Reference: 7
Element, filter
Diagram Reference: 8
Cup, filter
Diagram Reference: 9
O-ring(1wg)
Diagram Reference: 10
Nut (661)
Diagram Reference: 11
Bracket, filter
Diagram Reference: 12
Bolt(gj3)
Diagram Reference: 13
Hose
Diagram Reference: 14
Fuel pump assembly
Diagram Reference: 16
Cover, pump
Diagram Reference: 17
Diaphragm
Diagram Reference: 18
Gasket, body
Diagram Reference: 19
Nut (6g8)
Diagram Reference: 20
Diaphragm
Diagram Reference: 21
Gasket, body 2
Diagram Reference: 22
Ybs86-530 screw,panhead
Diagram Reference: 23
Ybs67-5 washer, spring
Diagram Reference: 24
Valve, check
Diagram Reference: 25
Screw, pan head
Diagram Reference: 26
Body 1
Diagram Reference: 27
Gasket,fuel pump
Diagram Reference: 28
Bolt (682)
Diagram Reference: 29
Pipe 1
Diagram Reference: 31
Tool kit
Diagram Reference: 34
Om 25b/30h '06
Diagram Reference: 35
Om 25b/30h '06
Diagram Reference: 35
Om 25b/30h '06
Diagram Reference: 35
Om 25b/30h '06
Diagram Reference: 35
Om 25b/30h '06
Diagram Reference: 35
Om 25b/30h '06
Diagram Reference: 35
Om 25b/30h '06
Diagram Reference: 36
Om 25b/30h '06
Diagram Reference: 36
Om 25b/30h '06
Diagram Reference: 36
Om 25b/30h '06
Diagram Reference: 36
Om 25b/30h '06
Diagram Reference: 36
Om 25b/30h '06
Diagram Reference: 36
