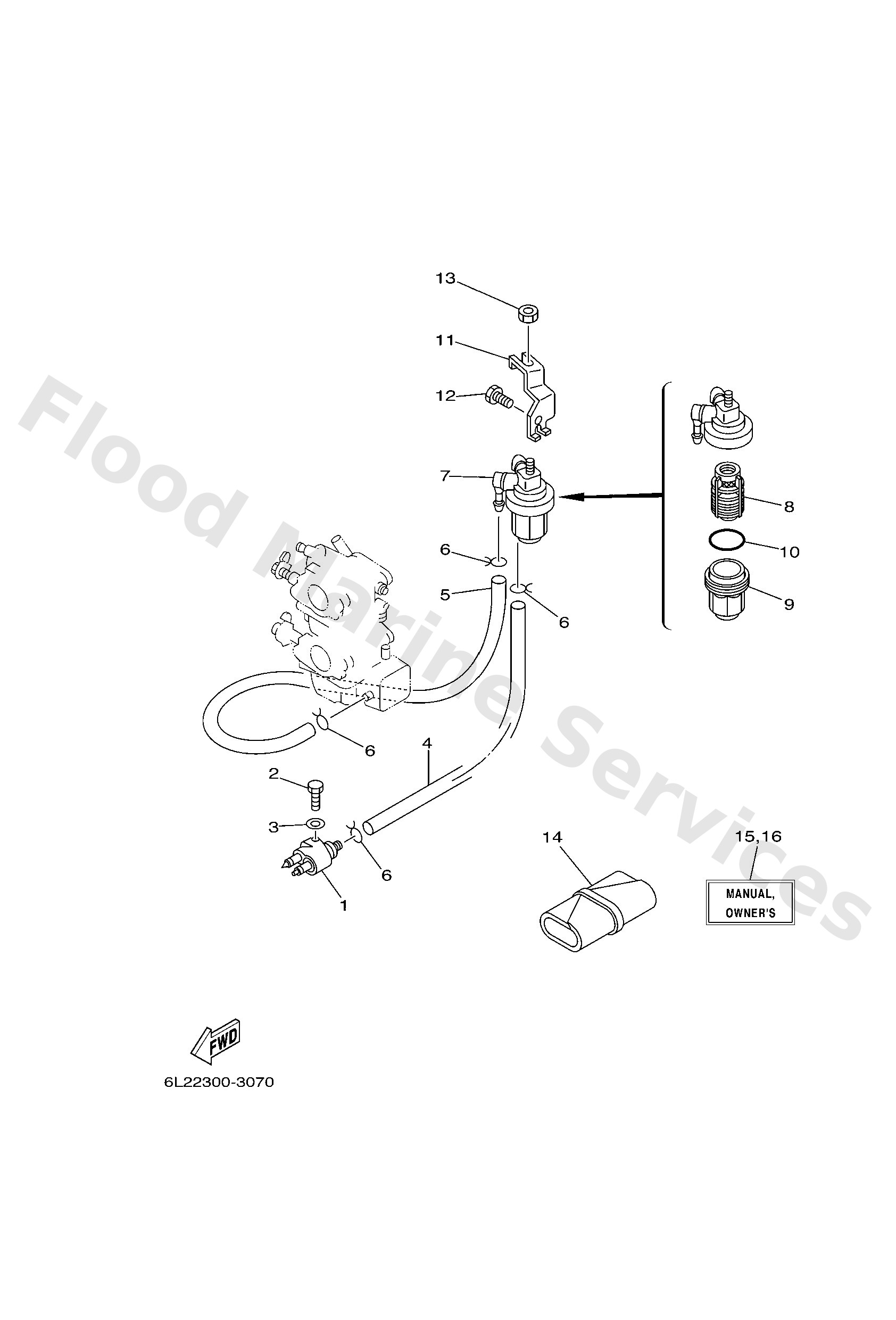

Diagram: FUEL

Diagram

Parts List

6G12430402

Fuel pipe joint comp. 1

Diagram Reference: 1

9709506020

Bolt(7u8)

Diagram Reference: 2

9299506600

Washer, plain (646)

Diagram Reference: 3

6H42431100

Pipe 1

Diagram Reference: 4

6L22431100

Pipe, fuel 1

Diagram Reference: 5

9046708004

Clip, pipe 6162435600

Diagram Reference: 6

61N2456000

Filter assembly

Diagram Reference: 7

61N2456300

Element, filter

Diagram Reference: 8

61N2452100

Cup, filter

Diagram Reference: 9

9321032738

O-ring(1wg)

Diagram Reference: 10

6L22456600

Bracket, filter

Diagram Reference: 11

9701306014

Bolt(gj3)

Diagram Reference: 12

9538008600

Nut (661)

Diagram Reference: 13

656W281002 (AP)

Tool kit

Diagram Reference: 14

6L3281997GE0 (UR (E))

Manual,Owner's

Diagram Reference: 15

6L3281997GF0 (UR (F))

Manual,Owner's

Diagram Reference: 15

6L3281997GS0 (UR (ES))

Manual,Owner's

Diagram Reference: 15

6L3281997GG0 (UR (D))

Manual,Owner's

Diagram Reference: 15

6L3281997GD0 (UR (NL))

Manual,Owner's

Diagram Reference: 15

6L3281997GH0 (UR (I))

Manual,Owner's

Diagram Reference: 15

6L3281998HK0 (UR (DK))

Manual,Owner's

Diagram Reference: 16

6L3281998HR0 (UR (GR))

Manual,Owner's

Diagram Reference: 16

6L3281998HP0 (UR (P))

Manual,Owner's

Diagram Reference: 16

6L3281998HN0 (UR (N))

Manual,Owner's

Diagram Reference: 16

6L3281998HM0 (UR (S))

Manual,Owner's

Diagram Reference: 16

6L3281998HL0 (UR (SF))

Manual,Owner's

Diagram Reference: 16
