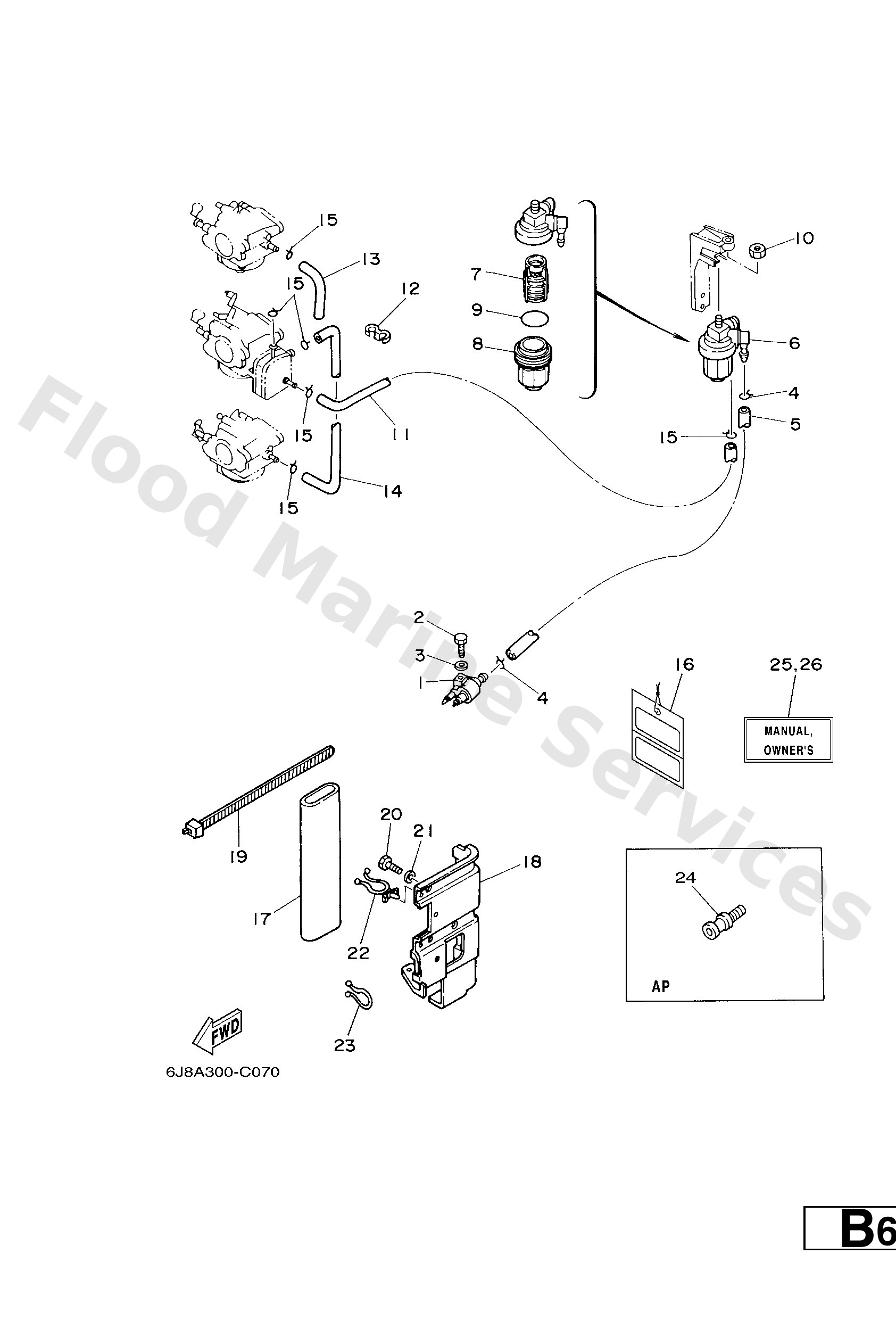

Diagram: FUEL

Diagram

Parts List

6G12430402
Fuel pipe joint comp. 1
Diagram Reference: 1
Get Part
9709506025
Bolt
Diagram Reference: 2
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 3
Get Part
9046708004
Clip, pipe 6162435600
Diagram Reference: 4
Get Part
9044509M00
Hose (l180)
Diagram Reference: 5
Get Part
61N2456000
Filter assembly
Diagram Reference: 6
Get Part
61N2456300
Element, filter
Diagram Reference: 7
Get Part
61N2452100
Cup, filter
Diagram Reference: 8
Get Part
9321032738
O-ring(1wg)
Diagram Reference: 9
Get Part
9017908M15
Nut(6j8)
Diagram Reference: 10
Get Part
6E52431200
Pipe 2
Diagram Reference: 11
Get Part
9046409M21
Clamp(6j8)
Diagram Reference: 12
Get Part
6882431300
Pipe, fuel 2
Diagram Reference: 13
Get Part
6J82431100
Pipe, fuel 2
Diagram Reference: 14
Get Part
61H2819R31
-
Diagram Reference: 16
Get Part
656W281002
Tool kit
Diagram Reference: 17
Get Part
6J82817000
Tool, holder
Diagram Reference: 18
Get Part
6G12811G00
Band
Diagram Reference: 19
Get Part
9709508016
Bolt, hexagon deep recess
Diagram Reference: 20
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 21
Get Part
9046412M17
Clamp(6j8)
Diagram Reference: 22
Get Part
9046518147
Clamp
Diagram Reference: 23
Get Part
6E0281930094 (AP D)12.5MM)
Plug, water check
Diagram Reference: 24
Get Part
6J82819971E0 (UR (E))
Om 30d '06
Diagram Reference: 25
Get Part
6J82819971F0 (UR (F))
Om 30d '06
Diagram Reference: 25
Get Part
6J82819971S0 (UR (ES))
Om 30d '06
Diagram Reference: 25
Get Part
6J82819971G0 (UR (D))
Om 30d '06
Diagram Reference: 25
Get Part
6J82819971H0 (UR (I))
Om 30d '06
Diagram Reference: 25
Get Part
6J82819971D0 (UR (NL))
Om 30d ''06
Diagram Reference: 25
Get Part
6J8281998CK0 (UR (DK))
Om 30d '06
Diagram Reference: 26
Get Part
6J8281998CR0 (UR (GR))
Om 30d '06
Diagram Reference: 26
Get Part
6J8281998CP0 (UR (P))
Om 30d '06
Diagram Reference: 26
Get Part
6J8281998CN0 (UR (N))
Om 30d '06
Diagram Reference: 26
Get Part
6J8281998CM0 (UR (S))
Om 30d '06
Diagram Reference: 26
Get Part
6J8281998CL0 (UR (SF))
Om 30d '06
Diagram Reference: 26
Get Part
