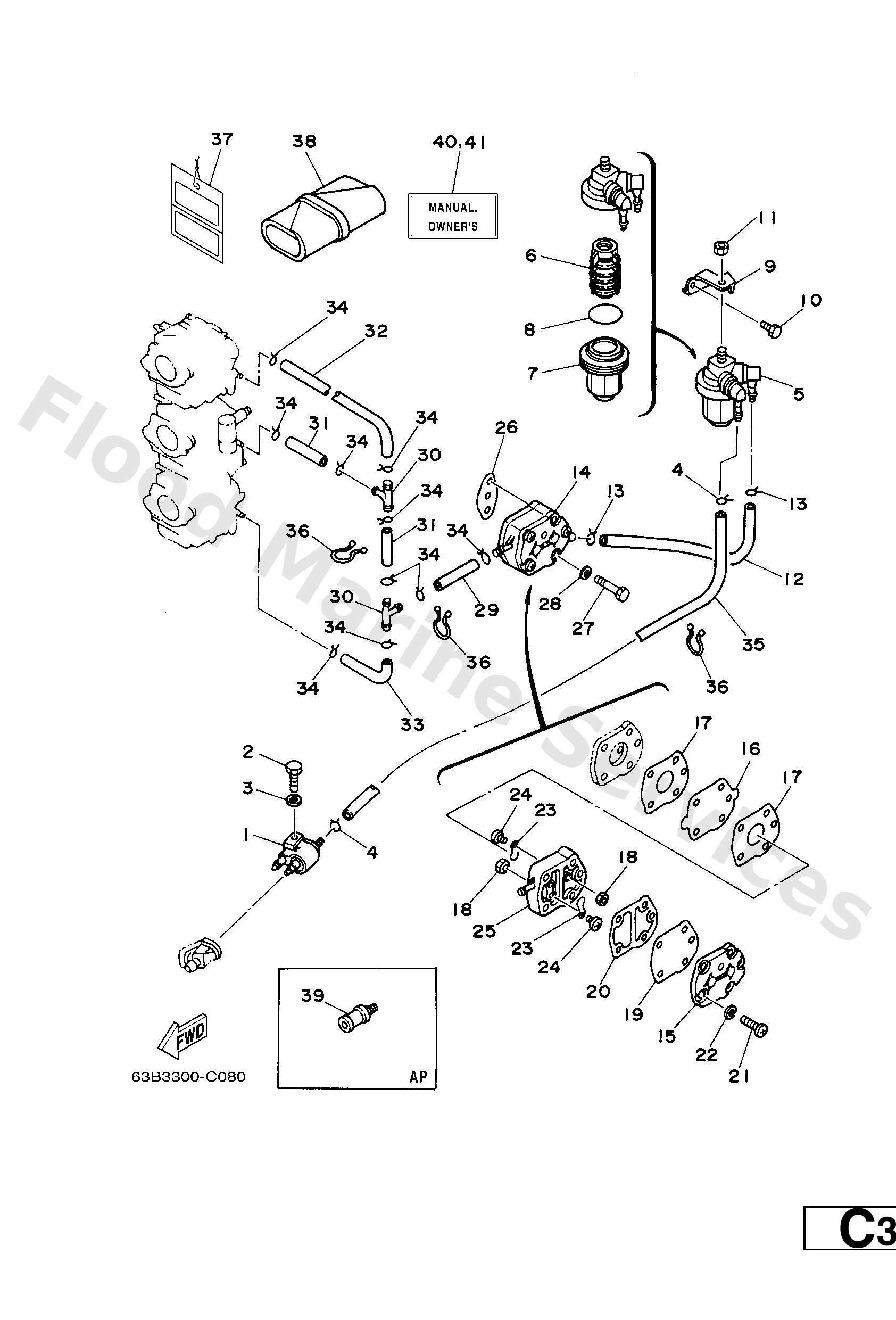

Diagram: FUEL
Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Bolt
Diagram Reference: 2
Washer, plain (646)
Diagram Reference: 3
Clip, pipe 6162435600
Diagram Reference: 4
Filter assembly
Diagram Reference: 5
Element, filter
Diagram Reference: 6
Cup, filter
Diagram Reference: 7
O-ring(1wg)
Diagram Reference: 8
Bracket, filter
Diagram Reference: 9
Bolt(gj3)
Diagram Reference: 10
Nut (661)
Diagram Reference: 11
Pipe 4
Diagram Reference: 12
Fuel pump assembly
Diagram Reference: 14
Cover, pump
Diagram Reference: 15
Diaphragm
Diagram Reference: 16
Gasket, body
Diagram Reference: 17
Nut (6g8)
Diagram Reference: 18
Diaphragm
Diagram Reference: 19
Gasket, body 2
Diagram Reference: 20
Ybs86-530 screw,panhead
Diagram Reference: 21
Ybs67-5 washer, spring
Diagram Reference: 22
Valve, check
Diagram Reference: 23
Screw, pan head
Diagram Reference: 24
Body 1
Diagram Reference: 25
Gasket,fuel pump
Diagram Reference: 26
Bolt (682)
Diagram Reference: 27
Hose (l1500)
Diagram Reference: 29
Pipe, joint
Diagram Reference: 30
Hose (l180)
Diagram Reference: 31
Pipe 3
Diagram Reference: 32
Pipe, fuel 2
Diagram Reference: 33
Pipe 1
Diagram Reference: 35
Clamp (3y2)
Diagram Reference: 36
Tool kit
Diagram Reference: 38
Plug, water check
Diagram Reference: 39
O/m 50h/40v/40y '06
Diagram Reference: 40
O/m 50h/40v/40y '06
Diagram Reference: 40
O/m 50h/40v/40y '06
Diagram Reference: 40
O/m 50h/40v/40y '06
Diagram Reference: 40
O/m 50h/40v/40y '06
Diagram Reference: 40
O/m 50h/40v/40y '06
Diagram Reference: 40
O/m 50h/40v/40y '06
Diagram Reference: 41
O/m 50h/40v/40y '06
Diagram Reference: 41
O/m 50h/40v/40y '06
Diagram Reference: 41
O/m 50h/40v/40y '06
Diagram Reference: 41
O/m 50h/40v/40y '06
Diagram Reference: 41
O/m 50h/40v/40y '06
Diagram Reference: 41
