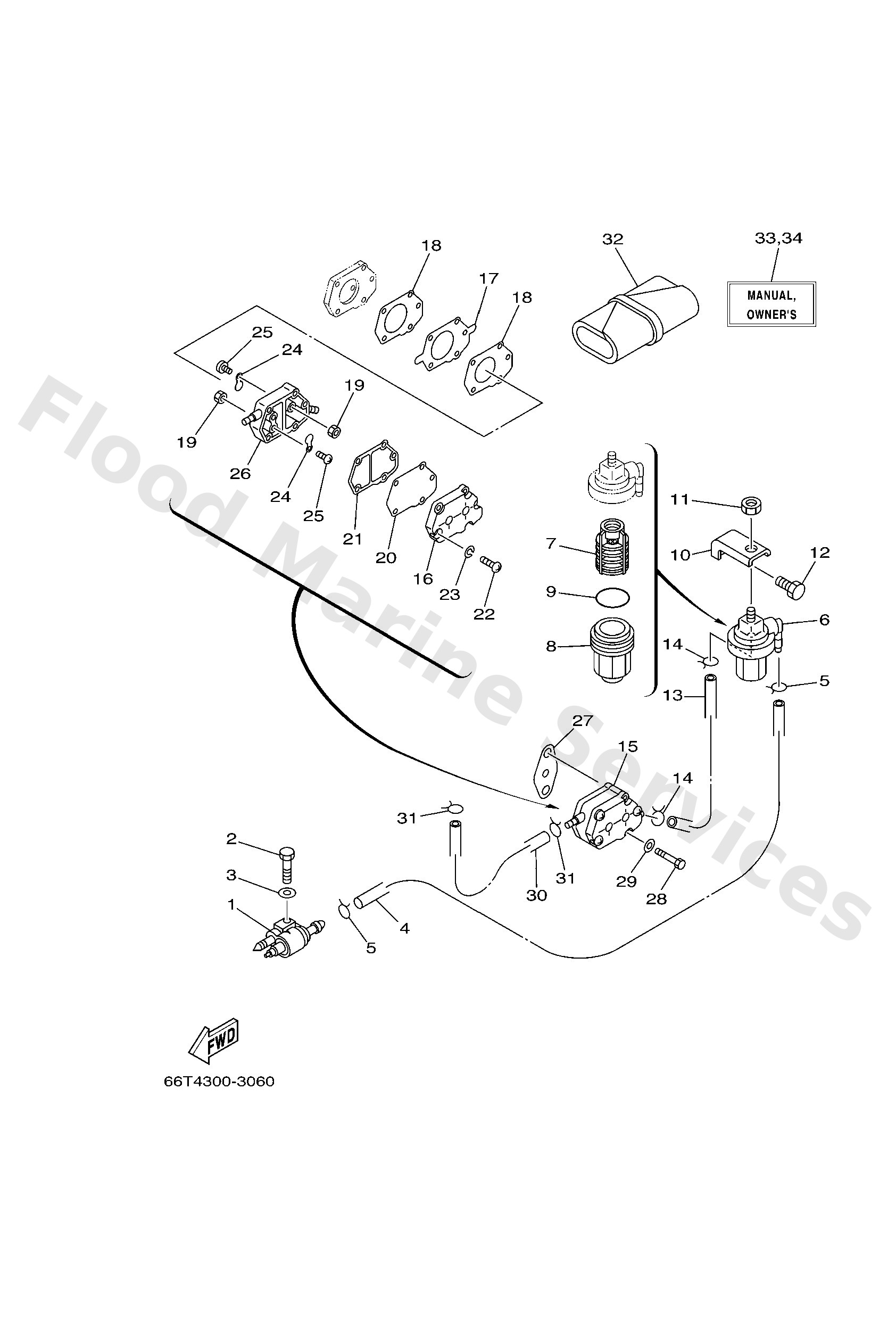

Diagram: FUEL
Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Bolt(jf7)
Diagram Reference: 2
Washer, plain (646)
Diagram Reference: 3
Hose (l865)
Diagram Reference: 4
Clip, pipe 6162435600
Diagram Reference: 5
Filter assembly
Diagram Reference: 6
Element, filter
Diagram Reference: 7
Cup, filter
Diagram Reference: 8
O-ring(1wg)
Diagram Reference: 9
Bracket, filter
Diagram Reference: 10
Nut (661)
Diagram Reference: 11
Bolt(gj3)
Diagram Reference: 12
Hose (l1500)
Diagram Reference: 13
Fuel pump assembly
Diagram Reference: 15
Cover, pump
Diagram Reference: 16
Diaphragm
Diagram Reference: 17
Gasket, body
Diagram Reference: 18
Nut (6g8)
Diagram Reference: 19
Diaphragm
Diagram Reference: 20
Gasket, body 2
Diagram Reference: 21
Ybs86-530 screw,panhead
Diagram Reference: 22
Ybs67-5 washer, spring
Diagram Reference: 23
Valve, check
Diagram Reference: 24
Screw, pan head
Diagram Reference: 25
Body 1
Diagram Reference: 26
Gasket,fuel pump
Diagram Reference: 27
Bolt (682)
Diagram Reference: 28
Tool kit
Diagram Reference: 32
Manual,owner's
Diagram Reference: 33
Manual,owner's
Diagram Reference: 33
Manual,Owner's
Diagram Reference: 33
Manual,owner's
Diagram Reference: 33
Manual,owner's
Diagram Reference: 33
Manual,owner's
Diagram Reference: 33
Manual,owner's
Diagram Reference: 34
Manual,owner's
Diagram Reference: 34
Manual,owner's
Diagram Reference: 34
Manual,owner's
Diagram Reference: 34
Manual,owner's
Diagram Reference: 34
Manual,owner's
Diagram Reference: 34
