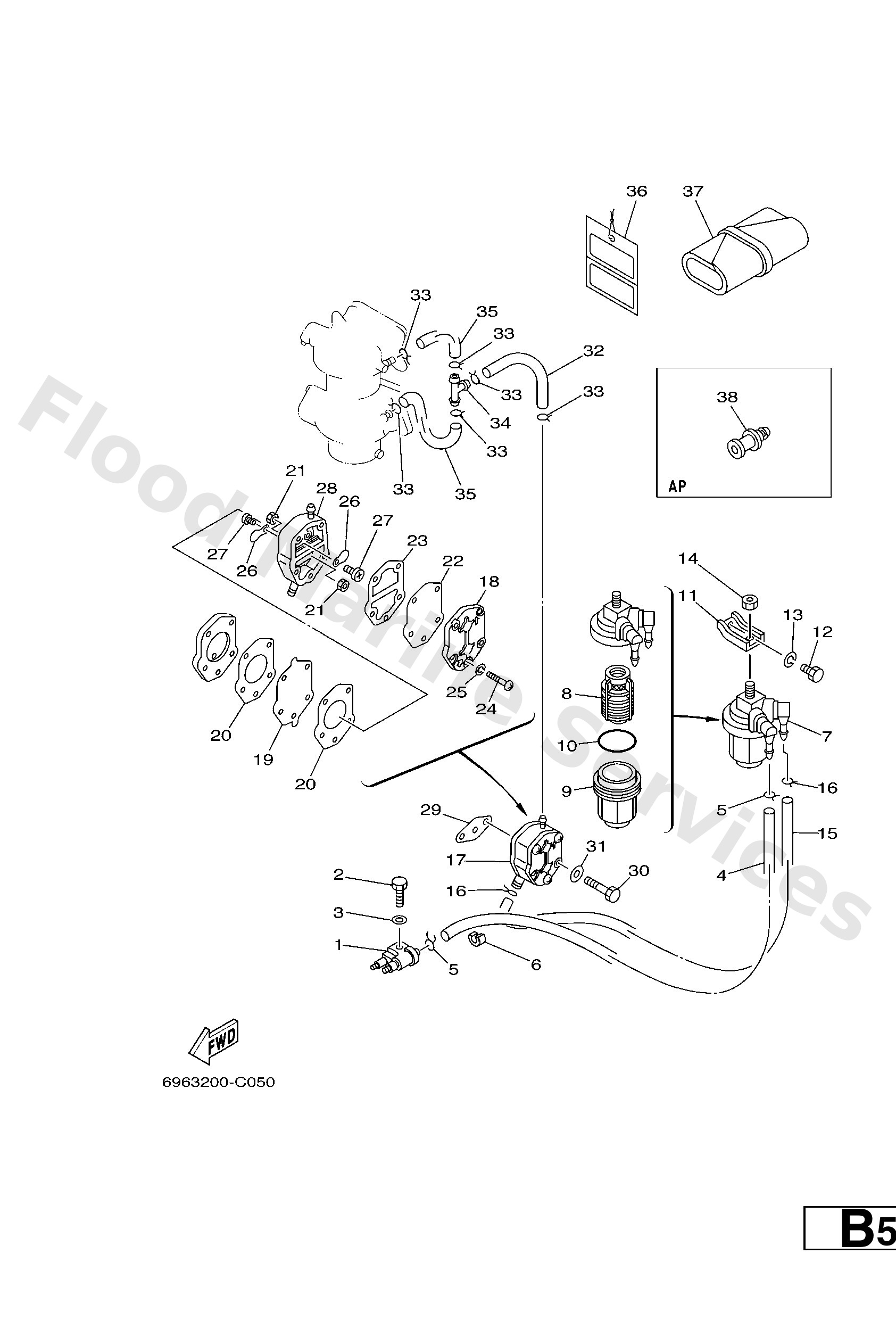

Diagram: FUEL
Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Bolt(7u8)
Diagram Reference: 2
Washer, plain (646)
Diagram Reference: 3
Hose (l1500)
Diagram Reference: 4
Clip, pipe 6162435600
Diagram Reference: 5
Clamp(663)
Diagram Reference: 6
Filter assembly
Diagram Reference: 7
Element, filter
Diagram Reference: 8
Cup, filter
Diagram Reference: 9
O-ring(1wg)
Diagram Reference: 10
Bracket, filter
Diagram Reference: 11
Bolt(gj3)
Diagram Reference: 12
Washer(6a1)
Diagram Reference: 13
Nut (661)
Diagram Reference: 14
Hose (l1500)
Diagram Reference: 15
Fuel pump assembly
Diagram Reference: 17
Cover, pump
Diagram Reference: 18
Diaphragm
Diagram Reference: 19
Gasket, body
Diagram Reference: 20
Nut (6g8)
Diagram Reference: 21
Diaphragm
Diagram Reference: 22
Gasket, body 2
Diagram Reference: 23
Ybs86-530 screw,panhead
Diagram Reference: 24
Ybs67-5 washer, spring
Diagram Reference: 25
Valve, check
Diagram Reference: 26
Screw, pan head
Diagram Reference: 27
Body 1
Diagram Reference: 28
Gasket,fuel pump
Diagram Reference: 29
Bolt (682)
Diagram Reference: 30
Hose (l1500)
Diagram Reference: 32
Pipe, joint
Diagram Reference: 34
Tool kit
Diagram Reference: 37
Plug, water check
Diagram Reference: 38
