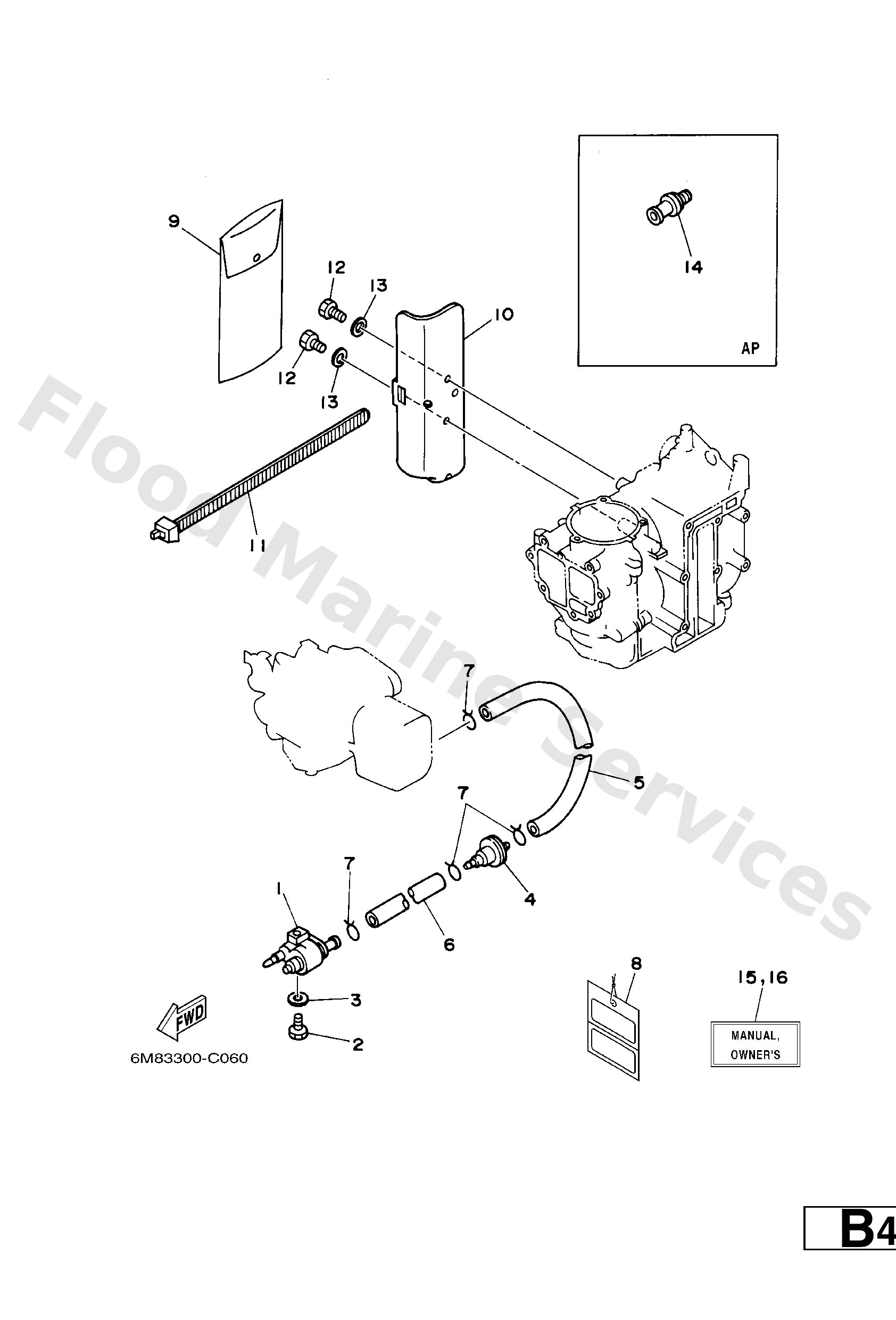

Diagram: FUEL

Diagram

Parts List

6G12430402
Fuel pipe joint comp. 1
Diagram Reference: 1
Get Part
9709506025
Bolt
Diagram Reference: 2
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 3
Get Part
6462425102
Strainer 1
Diagram Reference: 4
Get Part
9044509221
Hose (l1500)
Diagram Reference: 5
Get Part
9044509220
Hose (l1500)
Diagram Reference: 6
Get Part
9046708004
Clip, pipe 6162435600
Diagram Reference: 7
Get Part
61H2819R31
-
Diagram Reference: 8
Get Part
6N0F810000
Tool kit
Diagram Reference: 9
Get Part
6N0F817000
Holder, Tool
Diagram Reference: 10
Get Part
6G12811G00
Band
Diagram Reference: 11
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 12
Get Part
6L8F819300 (AP)
Plug, water check
Diagram Reference: 14
Get Part
6M8F819977E0 (UR (E))
Om 6c/6d/8c '05
Diagram Reference: 15
Get Part
6M8F819977F0 (UR (F))
Om 6c/6d/8c '05
Diagram Reference: 15
Get Part
6M8F819977S0 (UR (ES))
Om 6c/6d/8c '05
Diagram Reference: 15
Get Part
6M8F819977G0 (UR (D))
Om 6c/6d/8c '05
Diagram Reference: 15
Get Part
6M8F819977D0 (UR (NL))
Om 6c/6d/8c '05
Diagram Reference: 15
Get Part
6M8F819977H0 (UR (I))
Om 6c/6d/8c '05
Diagram Reference: 15
Get Part
6M8F819988K0 (UR (DK))
Om 6c/6d/8c '05
Diagram Reference: 16
Get Part
6M8F819988R0 (UR (GR))
Om 6c/6d/8c '05
Diagram Reference: 16
Get Part
6M8F819988P0 (UR (P))
Om 6c/6d/8c '05
Diagram Reference: 16
Get Part
6M8F819988N0 (UR (N))
Om 6c/6d/8c '05
Diagram Reference: 16
Get Part
6M8F819988M0 (UR (S))
Om 6c/6d/8c '05
Diagram Reference: 16
Get Part
6M8F819988L0 (UR (SF))
Om 6c/6d/8c '05
Diagram Reference: 16
Get Part
