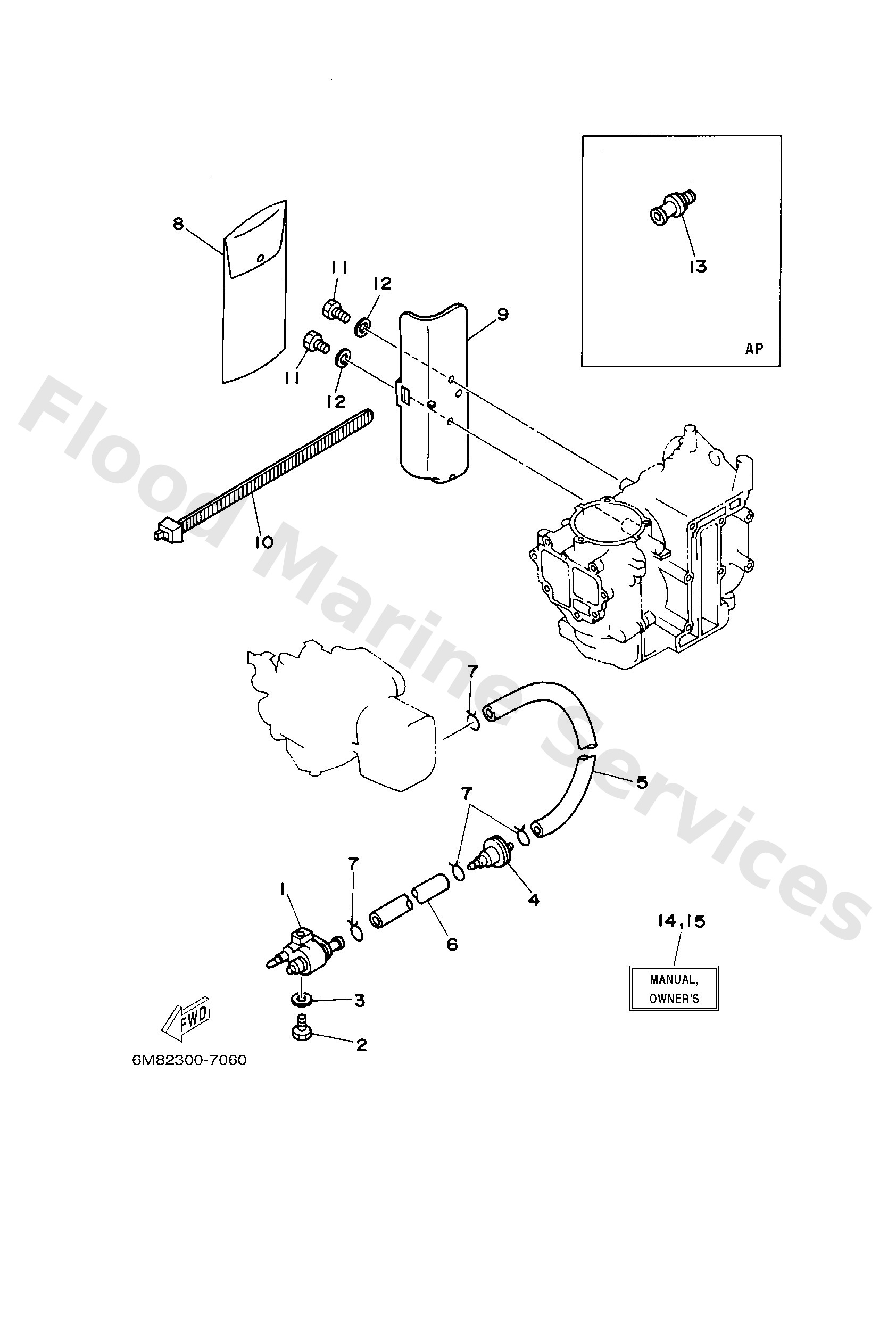

Diagram: FUEL

Diagram

Parts List

6G12430402

Fuel pipe joint comp. 1

Diagram Reference: 1

9709506025

Bolt

Diagram Reference: 2

9299506600 (AP)

Washer, plain (646)

Diagram Reference: 12

6462425102

Strainer 1

Diagram Reference: 4

9044509221

Hose (l1500)

Diagram Reference: 5

9044509220

Hose (l1500)

Diagram Reference: 6

9046708004

Clip, pipe 6162435600

Diagram Reference: 7

6N0F810000 (AP)

Tool kit

Diagram Reference: 8

6N0F817000 (AP)

Holder, Tool

Diagram Reference: 9

6G12811G00 (AP)

Band

Diagram Reference: 10

9709506012 (AP)

Bolt(gh1)

Diagram Reference: 11

6L8F819300 (AP)

Plug, water check

Diagram Reference: 13

6M8F81997DE0 (UR (E))

Manual,owner's

Diagram Reference: 14

6M8F81997DF0 (UR (F))

Manual,owner's

Diagram Reference: 14

6M8F81997DS0 (UR (ES))

Manual,owner's

Diagram Reference: 14

6M8F81997DG0 (UR (D))

Manual,owner's

Diagram Reference: 14

6M8F81997DD0 (UR (NL))

Manual,owner's

Diagram Reference: 14

6M8F81997DH0 (UR (I))

Manual,owner's

Diagram Reference: 14

6M8F81998EK0 (UR (DK))

Manual,owner's

Diagram Reference: 15

6M8F81998ER0 (UR (GR))

Manual,owner's

Diagram Reference: 15

6M8F81998EP0 (UR (P))

Manual,owner's

Diagram Reference: 15

6M8F81998EN0 (UR (N))

Manual,owner's

Diagram Reference: 15

6M8F81998EM0 (UR (S))

Manual,owner's

Diagram Reference: 15

6M8F81998EL0 (UR (SF))

Manual,owner's

Diagram Reference: 15
