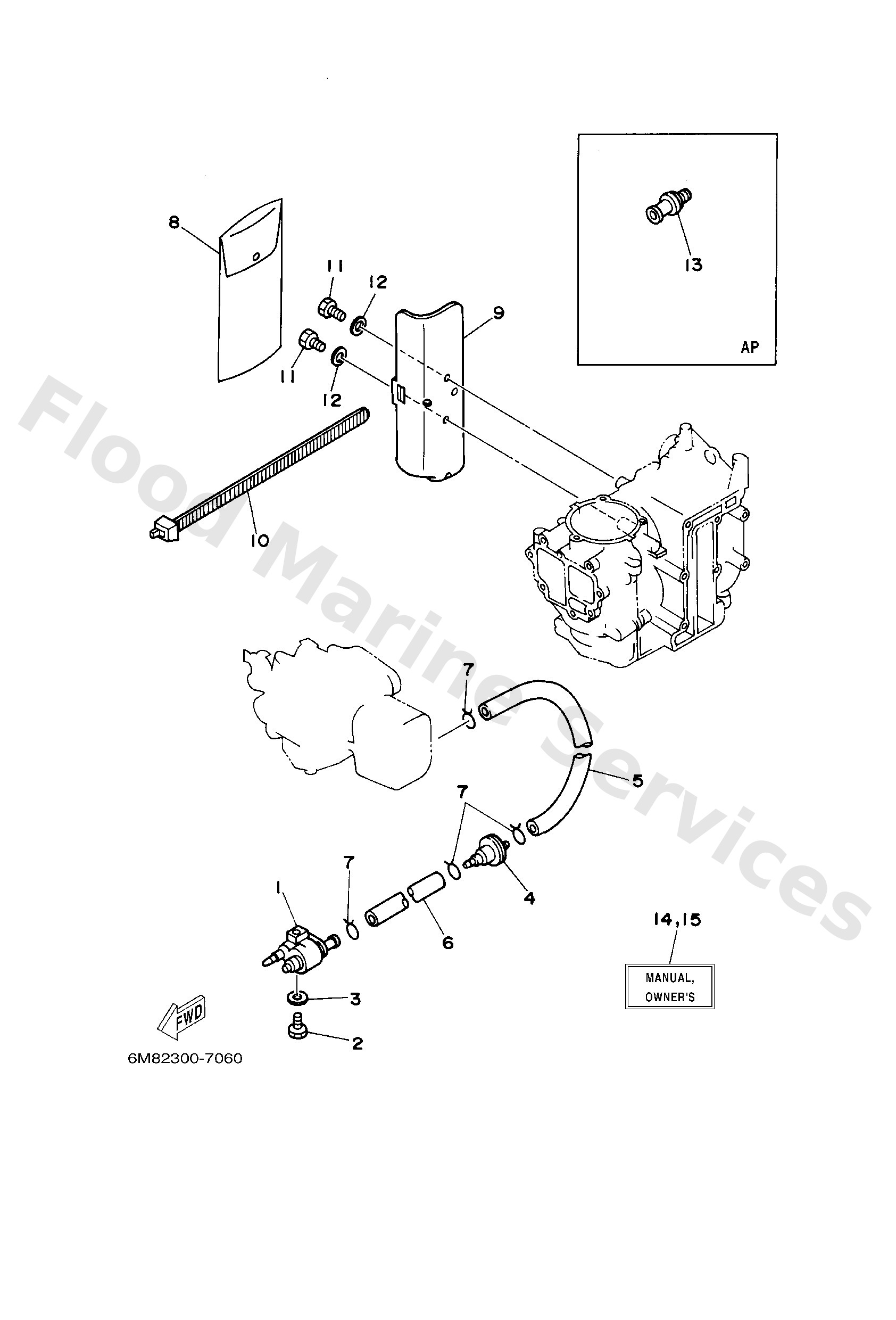

Diagram: FUEL
Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Bolt
Diagram Reference: 2
Washer, plain (646)
Diagram Reference: 3
Strainer 1
Diagram Reference: 4
Hose (l1500)
Diagram Reference: 5
Hose (l1500)
Diagram Reference: 6
Clip, pipe 6162435600
Diagram Reference: 7
Tool kit
Diagram Reference: 8
Holder, Tool
Diagram Reference: 9
Band
Diagram Reference: 10
Bolt(gh1)
Diagram Reference: 11
Plug, water check
Diagram Reference: 13
Manual,owner's
Diagram Reference: 14
Manual,owner's
Diagram Reference: 14
Manual,owner's
Diagram Reference: 14
Manual,owner's
Diagram Reference: 14
Manual,owner's
Diagram Reference: 14
Manual,owner's
Diagram Reference: 14
Manual,owner's
Diagram Reference: 15
Manual,owner's
Diagram Reference: 15
Manual,owner's
Diagram Reference: 15
Manual,owner's
Diagram Reference: 15
Manual,owner's
Diagram Reference: 15
Manual,owner's
Diagram Reference: 15
