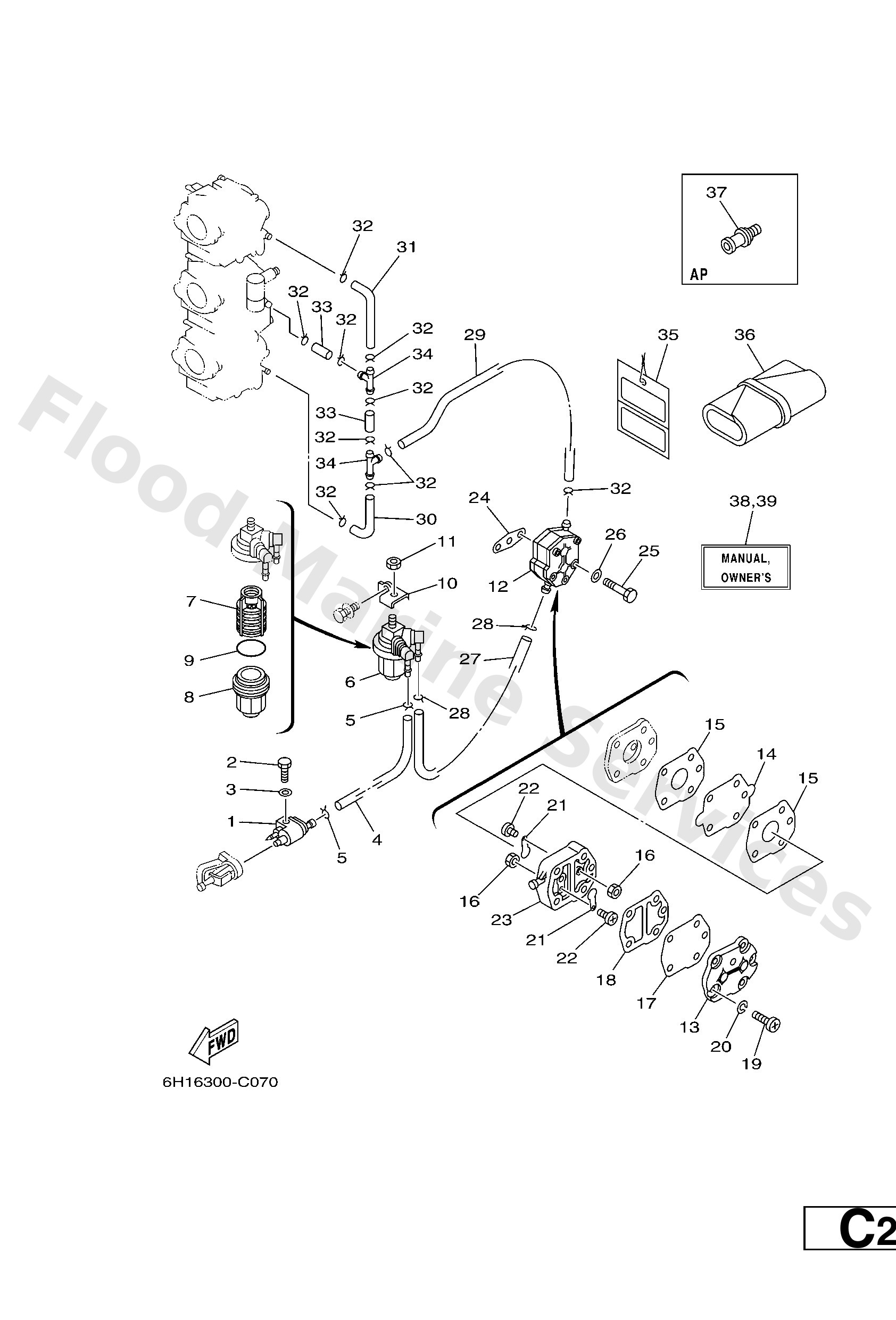

Diagram: FUEL
Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Bolt(7u8)
Diagram Reference: 2
Washer, plain (646)
Diagram Reference: 3
Hose (l1500)
Diagram Reference: 4
Clip, pipe 6162435600
Diagram Reference: 5
Filter assembly
Diagram Reference: 6
Element, filter
Diagram Reference: 7
Cup, filter
Diagram Reference: 8
O-ring(1wg)
Diagram Reference: 9
Bracket, filter
Diagram Reference: 10
Nut (661)
Diagram Reference: 11
Fuel pump assembly
Diagram Reference: 12
Cover, pump
Diagram Reference: 13
Diaphragm
Diagram Reference: 14
Gasket, body
Diagram Reference: 15
Nut (6g8)
Diagram Reference: 16
Diaphragm
Diagram Reference: 17
Gasket, body 2
Diagram Reference: 18
Ybs86-530 screw,panhead
Diagram Reference: 19
Ybs67-5 washer, spring
Diagram Reference: 20
Valve, check
Diagram Reference: 21
Screw, pan head
Diagram Reference: 22
Body 1
Diagram Reference: 23
Gasket,fuel pump
Diagram Reference: 24
Bolt (682)
Diagram Reference: 25
Pipe 4
Diagram Reference: 27
Hose (l1500)
Diagram Reference: 29
Pipe, fuel 2
Diagram Reference: 30
Pipe, fuel 2
Diagram Reference: 31
Hose (l1500)
Diagram Reference: 33
Pipe, joint
Diagram Reference: 34
Tool kit
Diagram Reference: 36
Plug, water check
Diagram Reference: 37
75c/90a '05
Diagram Reference: 38
75c/90a '05
Diagram Reference: 38
75c/90a '05
Diagram Reference: 38
75c/90a '05
Diagram Reference: 38
75c/90a '05
Diagram Reference: 38
75c/90a '05
Diagram Reference: 38
75c/90a '05
Diagram Reference: 39
75c/90a '05
Diagram Reference: 39
75c/90a '05
Diagram Reference: 39
75c/90a '05
Diagram Reference: 39
75c/90a '05
Diagram Reference: 39
75c/90a '05
Diagram Reference: 39
