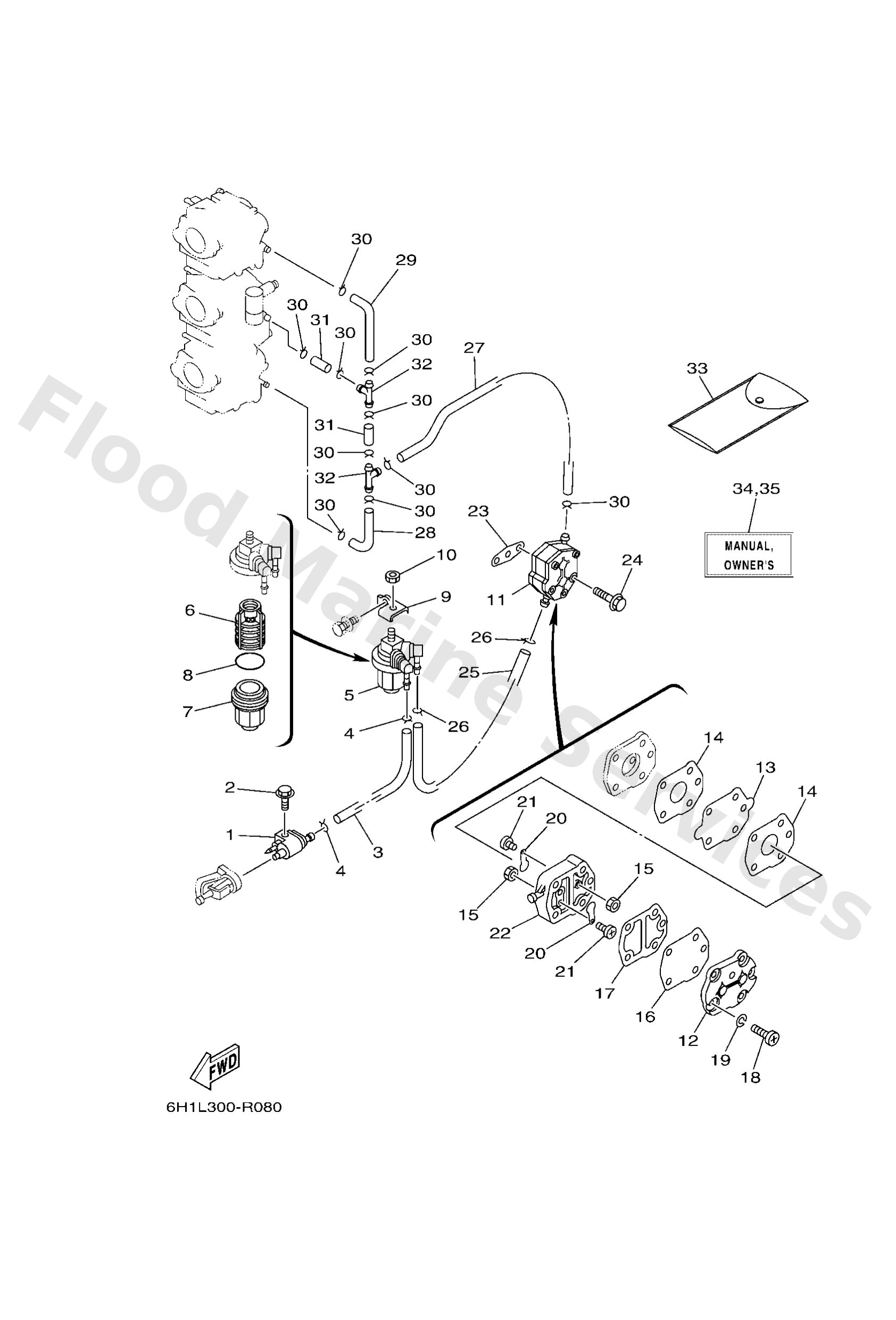

Diagram: FUEL

Diagram

Parts List

6G12430410
Fuel pipe joint comp. 1
Diagram Reference: 1
Get Part
9759506525
Bolt, hexagon w/w deep recess
Diagram Reference: 2
Get Part
9044509104
Hose (l1500)
Diagram Reference: 3
Get Part
9046708004
Clip, pipe 6162435600
Diagram Reference: 4
Get Part
61N2456000
Filter assembly
Diagram Reference: 5
Get Part
61N2456300
Element, filter
Diagram Reference: 6
Get Part
61N2452100
Cup, filter
Diagram Reference: 7
Get Part
9321032738
O-ring(1wg)
Diagram Reference: 8
Get Part
6H12456601
Bracket, filter
Diagram Reference: 9
Get Part
9538008600
Nut (661)
Diagram Reference: 10
Get Part
6922441000
Fuel pump assembly
Diagram Reference: 11
Get Part
6A02441300
Cover, pump
Diagram Reference: 12
Get Part
6922441100
Diaphragm
Diagram Reference: 13
Get Part
6482443401
Gasket, body
Diagram Reference: 14
Get Part
9538003600
Nut (6g8)
Diagram Reference: 15
Get Part
6632441100
Diaphragm
Diagram Reference: 16
Get Part
6482443502
Gasket, body 2
Diagram Reference: 17
Get Part
9850305028
Ybs86-530 screw,panhead
Diagram Reference: 18
Get Part
9299005100
Ybs67-5 washer, spring
Diagram Reference: 19
Get Part
6A02442101
Valve, check
Diagram Reference: 20
Get Part
6A01432500
Screw, pan head
Diagram Reference: 21
Get Part
6A02441202
Body 1
Diagram Reference: 22
Get Part
65024431A0
Gasket,fuel pump
Diagram Reference: 23
Get Part
9759506540
Bolt, hexagon w/w deep recess
Diagram Reference: 24
Get Part
6H12431400
Pipe 4
Diagram Reference: 25
Get Part
9044509097
Hose (l1500)
Diagram Reference: 27
Get Part
6882431300
Pipe, fuel 2
Diagram Reference: 28
Get Part
6882431400
Pipe, fuel 2
Diagram Reference: 29
Get Part
9044509220
Hose (l1500)
Diagram Reference: 31
Get Part
6882437800
Pipe, joint
Diagram Reference: 32
Get Part
656W281002 (AP)
Tool kit
Diagram Reference: 33
Get Part
67P2819979E0 (UR (E))
Manual,owner's
Diagram Reference: 34
Get Part
67P2819979F0 (UR (F))
Manual,owner's
Diagram Reference: 34
Get Part
67P2819979S0 (UR (ES))
Manual,owner's
Diagram Reference: 34
Get Part
67P2819979G0 (UR (D))
Manual,owner's
Diagram Reference: 34
Get Part
67P2819979D0 (UR (NL))
Manual,owner's
Diagram Reference: 34
Get Part
67P2819979H0 (UR (I))
Manual,owner's
Diagram Reference: 34
Get Part
67P2819989K0 (UR (DK))
Manual,owner's
Diagram Reference: 35
Get Part
67P2819989R0 (UR (GR))
Manual,owner's
Diagram Reference: 35
Get Part
67P2819989P0 (UR (P))
Manual,owner's
Diagram Reference: 35
Get Part
67P2819989N0 (UR (N))
Manual,owner's
Diagram Reference: 35
Get Part
67P2819989M0 (UR (S))
Manual,owner's
Diagram Reference: 35
Get Part
67P2819989L0 (UR (SF))
Manual,owner's
Diagram Reference: 35
