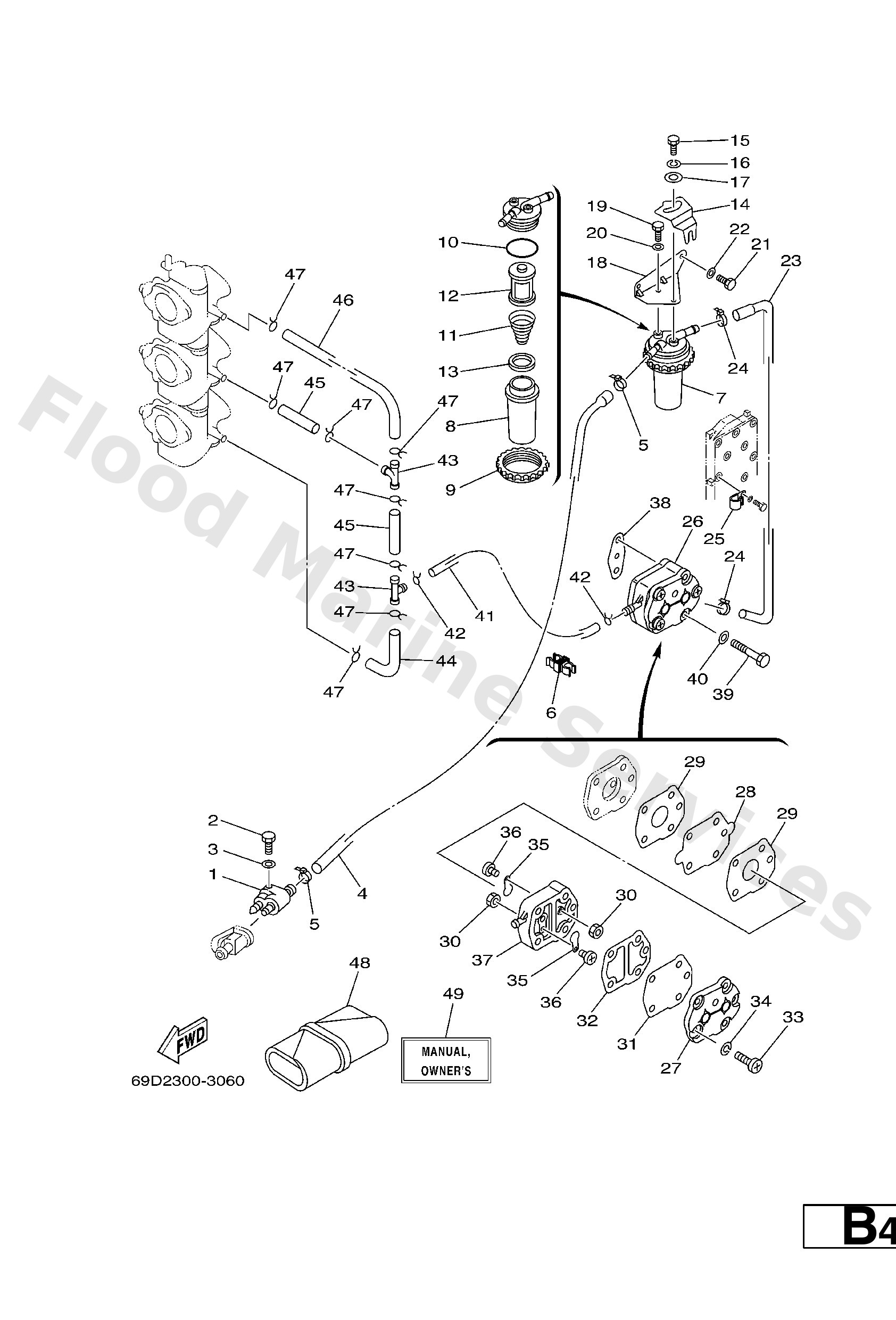

Diagram: FUEL

Diagram

Parts List

6G1−24304−02
Fuel pipe joint comp. 1
Diagram Reference: 1
Get Part
97095−06025
Bolt
Diagram Reference: 2
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 3
Get Part
69D−24311−00
Pipe, fuel 1
Diagram Reference: 4
Get Part
90465−11M10
Clamp
Diagram Reference: 5
Get Part
90464−10M59
Clamp
Diagram Reference: 6
Get Part
61A−24560−04
Filter assembly
Diagram Reference: 7
Get Part
61A−24521−00
Cup, filter
Diagram Reference: 8
Get Part
65L−24531−01
Nut
Diagram Reference: 9
Get Part
61A−24564−00
O-ring
Diagram Reference: 10
Get Part
61A−24577−01
Spring
Diagram Reference: 11
Get Part
61A−24563−00
Element, filter
Diagram Reference: 12
Get Part
61A−24469−00
Float, water level
Diagram Reference: 13
Get Part
65L−24558−00
Holder, filter
Diagram Reference: 14
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 15
Get Part
92995−06100
Washer(6a1)
Diagram Reference: 16
Get Part
90201−06068
Washer,plate (6k8)
Diagram Reference: 17
Get Part
69D−24566−01
Bracket, filter
Diagram Reference: 18
Get Part
97095−06014
Bolt(gj3)
Diagram Reference: 19
Get Part
69D−24312−00
Pipe 2
Diagram Reference: 23
Get Part
90465−08M83
Clamp
Diagram Reference: 25
Get Part
692−24410−00
Fuel pump assembly
Diagram Reference: 26
Get Part
6A0−24413−00
Cover, pump
Diagram Reference: 27
Get Part
692−24411−00
Diaphragm
Diagram Reference: 28
Get Part
648−24434−01
Gasket, body
Diagram Reference: 29
Get Part
95380−03600
Nut (6g8)
Diagram Reference: 30
Get Part
663−24411−00
Diaphragm
Diagram Reference: 31
Get Part
648−24435−02
Gasket, body 2
Diagram Reference: 32
Get Part
98503−05028
Ybs86-530 screw,panhead
Diagram Reference: 33
Get Part
92990−05100
Ybs67-5 washer, spring
Diagram Reference: 34
Get Part
6A0−24421−01
Valve, check
Diagram Reference: 35
Get Part
6A0−14325−00
Screw, pan head
Diagram Reference: 36
Get Part
6A0−24412−02
Body 1
Diagram Reference: 37
Get Part
650−24431−A0
Gasket,fuel pump
Diagram Reference: 38
Get Part
97095−06040
Bolt (682)
Diagram Reference: 39
Get Part
90445−09072
Hose (l1500)
Diagram Reference: 41
Get Part
90467−08004
Clip, pipe 6162435600
Diagram Reference: 42
Get Part
688−24378−00
Pipe, joint
Diagram Reference: 43
Get Part
6H3−24313−00
Pipe, fuel 2
Diagram Reference: 44
Get Part
90445−09220
Hose (l1500)
Diagram Reference: 45
Get Part
6H3−24314−00
Pipe 4
Diagram Reference: 46
Get Part
656−W2810−02
Tool kit
Diagram Reference: 48
Get Part
69D−28199−60−A0 ((F,S,P))
Manual,Owner’s
Diagram Reference: 49
