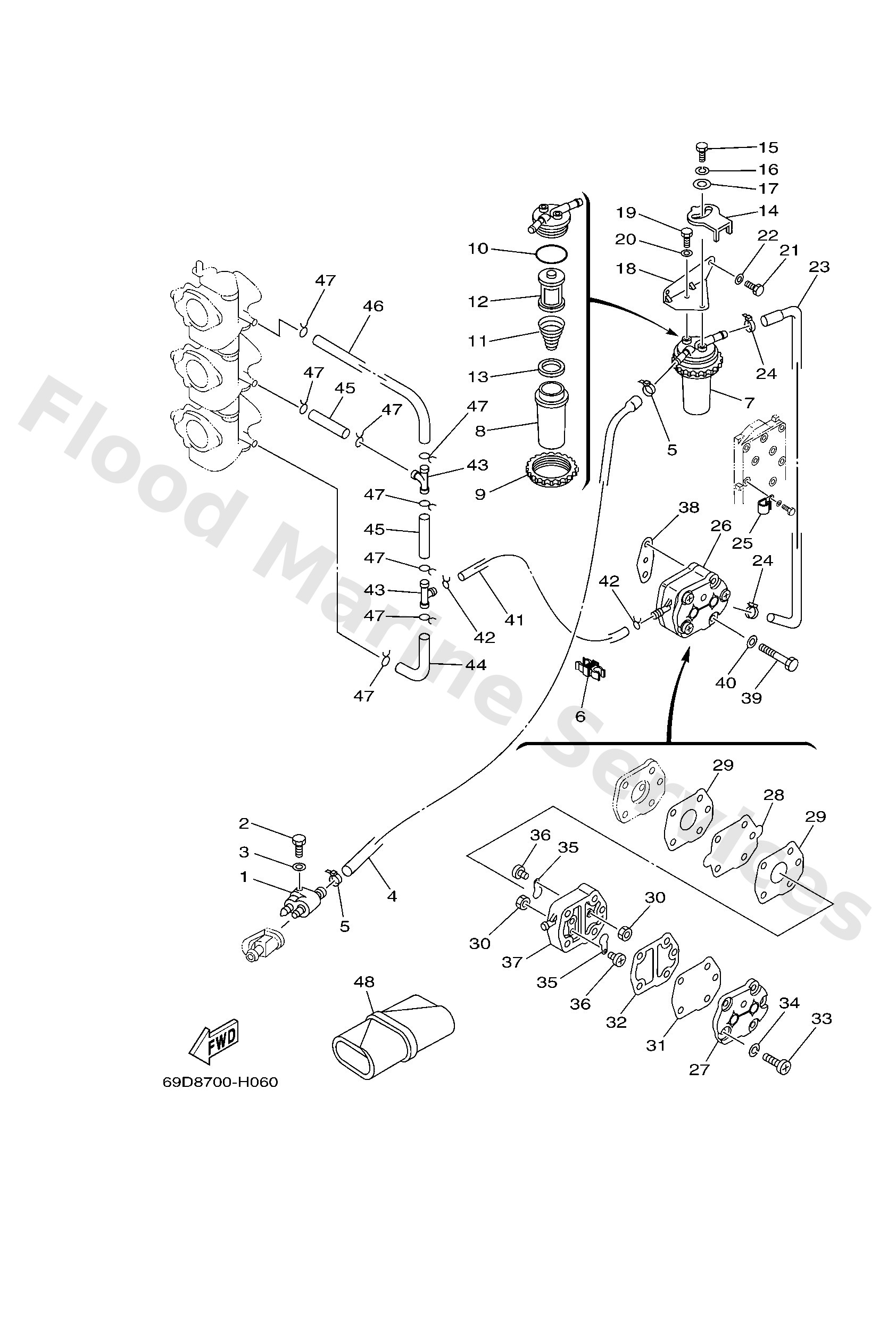

Diagram: FUEL

Diagram

Parts List

6G12430402
Fuel pipe joint comp. 1
Diagram Reference: 1
Get Part
9709506025
Bolt
Diagram Reference: 2
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 3
Get Part
69D2431100
Pipe, fuel 1
Diagram Reference: 4
Get Part
9046511M10
Clamp
Diagram Reference: 5
Get Part
9046410M59
Clamp
Diagram Reference: 6
Get Part
61A2456004
Filter assembly
Diagram Reference: 7
Get Part
61A2452100
Cup, filter
Diagram Reference: 8
Get Part
65L2453101
Nut
Diagram Reference: 9
Get Part
61A2456400
O-ring
Diagram Reference: 10
Get Part
61A2457701
Spring
Diagram Reference: 11
Get Part
61A2456300
Element, filter
Diagram Reference: 12
Get Part
61A2446900
Float, water level
Diagram Reference: 13
Get Part
60H2455800
Holder, filter
Diagram Reference: 14
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 15
Get Part
9299506100
Washer(6a1)
Diagram Reference: 16
Get Part
9020106068
Washer,plate (6k8)
Diagram Reference: 17
Get Part
69D2456601
Bracket, filter
Diagram Reference: 18
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 19
Get Part
69D2431200
Pipe 2
Diagram Reference: 23
Get Part
9046508M83
Clamp
Diagram Reference: 25
Get Part
6922441000
Fuel pump assembly
Diagram Reference: 26
Get Part
6A02441300
Cover, pump
Diagram Reference: 27
Get Part
6922441100
Diaphragm
Diagram Reference: 28
Get Part
6482443401
Gasket, body
Diagram Reference: 29
Get Part
9538003600
Nut (6g8)
Diagram Reference: 30
Get Part
6632441100
Diaphragm
Diagram Reference: 31
Get Part
6482443502
Gasket, body 2
Diagram Reference: 32
Get Part
9850305028
Ybs86-530 screw,panhead
Diagram Reference: 33
Get Part
9299005100
Ybs67-5 washer, spring
Diagram Reference: 34
Get Part
6A02442101
Valve, check
Diagram Reference: 35
Get Part
6A01432500
Screw, pan head
Diagram Reference: 36
Get Part
6A02441202
Body 1
Diagram Reference: 37
Get Part
65024431A0
Gasket,fuel pump
Diagram Reference: 38
Get Part
9709506040
Bolt (682)
Diagram Reference: 39
Get Part
9044509072
Hose (l1500)
Diagram Reference: 41
Get Part
9046708004
Clip, pipe 6162435600
Diagram Reference: 42
Get Part
6882437800
Pipe, joint
Diagram Reference: 43
Get Part
6H32431300
Pipe, fuel 2
Diagram Reference: 44
Get Part
9044509220
Hose (l1500)
Diagram Reference: 45
Get Part
6H32431400
Pipe 4
Diagram Reference: 46
Get Part
656W281002
Tool kit
Diagram Reference: 48
Get Part
