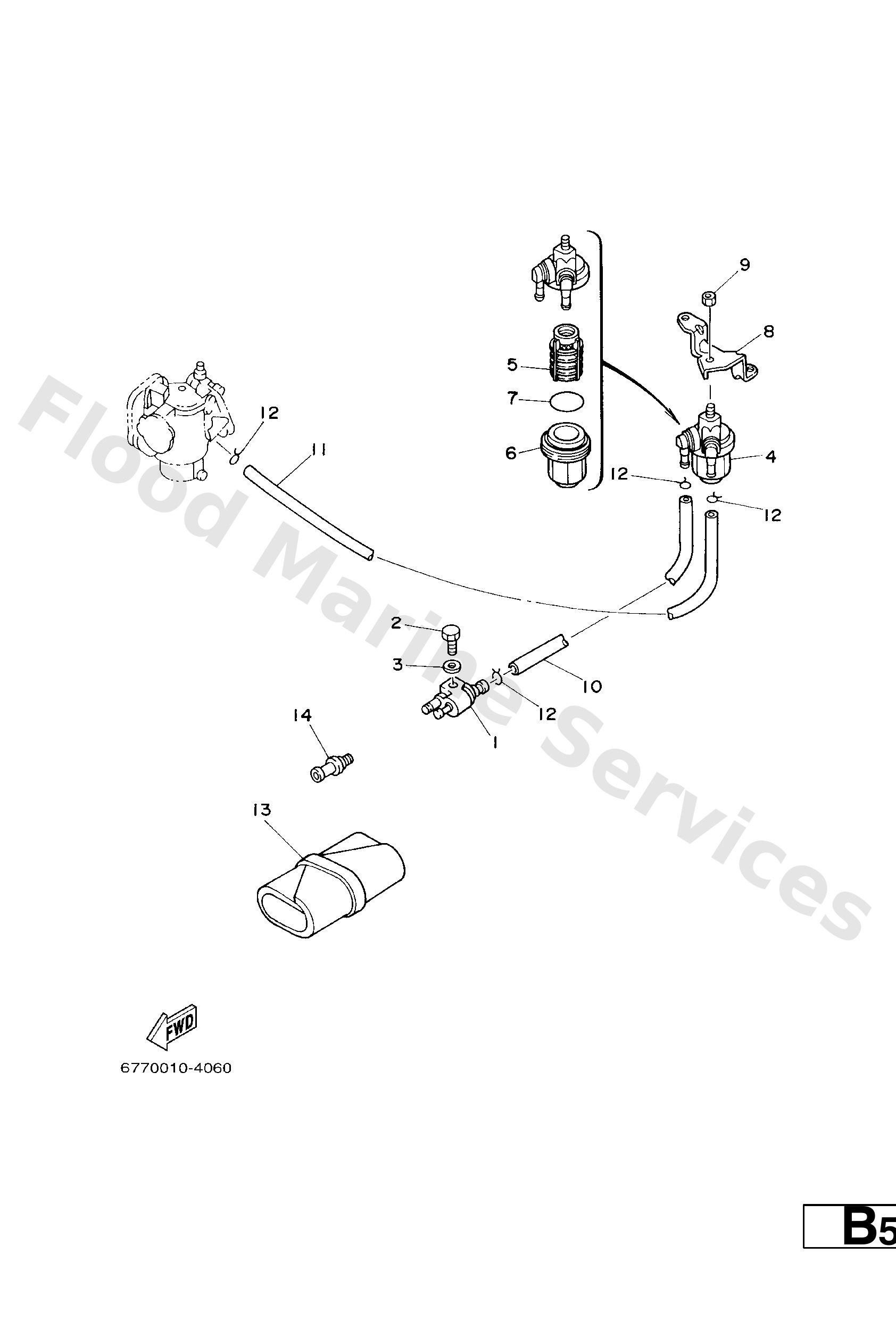

Diagram: FUEL

Diagram

Parts List

6G1−24304−02

Fuel pipe joint comp. 1

Diagram Reference: 1

97095−06020

Bolt(7u8)

Diagram Reference: 2

92995−06600

Washer, plain (646)

Diagram Reference: 3

61N−24560−00

Filter assembly

Diagram Reference: 4

61N−24563−00

Element, filter

Diagram Reference: 5

61N−24521−00

Cup, filter

Diagram Reference: 6

93210−32738

O-ring(1wg)

Diagram Reference: 7

6K3−24566−00

Bracket, Filter

Diagram Reference: 8

95380−08600

Nut (661)

Diagram Reference: 9

90445−09082

Hose (l420)

Diagram Reference: 10

90445−09163

Hose (L235)

Diagram Reference: 11

90467−08004

Clip, pipe 6162435600

Diagram Reference: 12

656−W2810−02

Tool kit

Diagram Reference: 13

626−28193−01−94 (AP D)15MM)

Plug, water check

Diagram Reference: 14

6E0−28193−00−94 (AP D)12.5MM)

Plug, water check

Diagram Reference: 14
