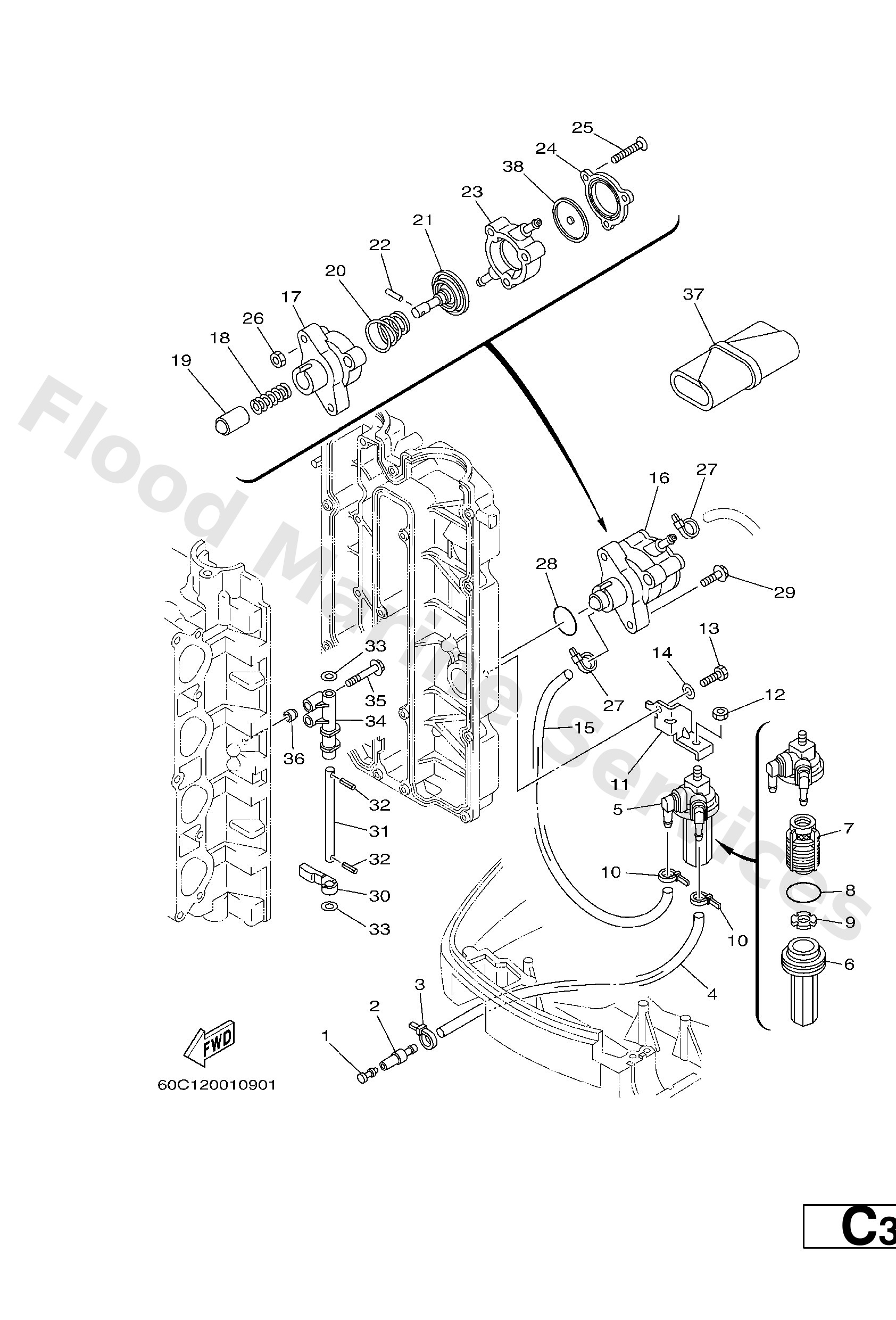

Diagram: FUEL

Diagram

Parts List

689−85547−00

Damper

Diagram Reference: 1

6R3−24377−00

Pipe, joint 3

Diagram Reference: 2

90465−11M10

Clamp

Diagram Reference: 3

90445−13M27

Hose (l950)

Diagram Reference: 4

60C−24560−00

Filter assembly

Diagram Reference: 5

68V−24521−01

Cup, filter

Diagram Reference: 6

61N−24563−00

Element, filter

Diagram Reference: 7

93210−32738

O-ring(1wg)

Diagram Reference: 8

68V−24469−01

Float, water level

Diagram Reference: 9

68V−24566−00

Bracket, Filter

Diagram Reference: 11

95380−08600

Nut (661)

Diagram Reference: 12

97095−06016

Bolt, hexagon deep recess

Diagram Reference: 13

92995−06600

Washer, plain (646)

Diagram Reference: 14

90445−13M11

Pipe, fuel 1

Diagram Reference: 15

68V−24410−00

Fuel pump assembly

Diagram Reference: 16

68V−24412−00

Body 1

Diagram Reference: 17

68V−24454−00

Spring

Diagram Reference: 18

68V−13131−00

Plunger

Diagram Reference: 19

68V−24423−00

Spring, diaphragm

Diagram Reference: 20

68V−24411−00

Diaphragm

Diagram Reference: 21

68V−24374−00

Pin

Diagram Reference: 22

68V−24413−00

Body 2

Diagram Reference: 23

68V−24414−00

Body 3

Diagram Reference: 24

68V−24444−00

Screw

Diagram Reference: 25

68V−24149−00

Nut

Diagram Reference: 26

93210−30682

O-ring (371)

Diagram Reference: 28

90119−06M83

Bolt, with washer

Diagram Reference: 29

67F−24575−00

Lever, fuel change

Diagram Reference: 30

68V−24495−00

Shaft

Diagram Reference: 31

91609−25014

10 −

Diagram Reference: 32

90201−08M12

Washer plate (682)

Diagram Reference: 33

67F−24491−00

Bracket, fuel pump

Diagram Reference: 34

90119−07235

Bolt, with washer

Diagram Reference: 35

91809−08006

Pin, dowel

Diagram Reference: 36

67F−28100−00

Tool kit

Diagram Reference: 37

68V2447110

Diaphragm

Diagram Reference: 38

4EB2314400

Seal, dust

Diagram Reference: 38
