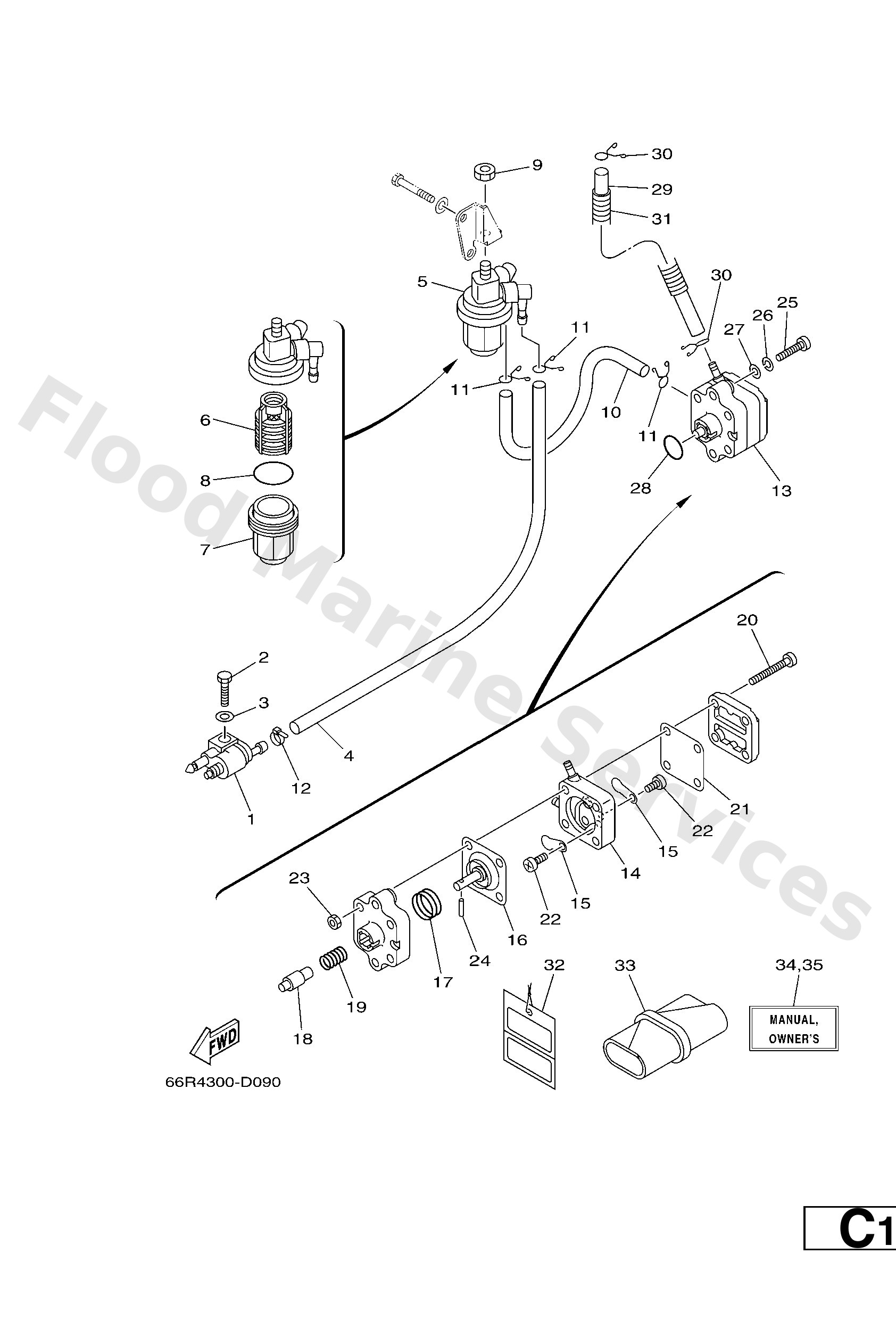

Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Bolt(7u8)
Diagram Reference: 2
Washer, plain (646)
Diagram Reference: 3
Hose (l590)
Diagram Reference: 4
Filter assembly
Diagram Reference: 5
Element, filter
Diagram Reference: 6
Cup, filter
Diagram Reference: 7
O-ring(1wg)
Diagram Reference: 8
Nut (661)
Diagram Reference: 9
Hose (l400)
Diagram Reference: 10
Clip(6k8)
Diagram Reference: 11
Clamp
Diagram Reference: 12
Fuel pump assembly
Diagram Reference: 13
Body 2
Diagram Reference: 14
Valve, check
Diagram Reference: 15
Diaphragm
Diagram Reference: 16
Spring, diaphragm
Diagram Reference: 17
Plunger
Diagram Reference: 18
Spring
Diagram Reference: 19
Screw
Diagram Reference: 20
Diaphragm
Diagram Reference: 21
Screw, pan head
Diagram Reference: 22
Nut,hex
Diagram Reference: 23
Pin
Diagram Reference: 24
Screw, pan head(6e0)
Diagram Reference: 25
Washer(6a1)
Diagram Reference: 26
Washer, plain (646)
Diagram Reference: 27
O-ring
Diagram Reference: 28
Hose (l400)
Diagram Reference: 29
Hose(6tc)
Diagram Reference: 31
Tool kit
Diagram Reference: 33
Om f15a/f9.9c/ft9.9d/f13.5a'06
Diagram Reference: 34
Om f15a/f9.9c/ft9.9d/f13.5a'06
Diagram Reference: 34
Om f15a/f9.9c/ft9.9d/f13.5a'06
Diagram Reference: 34
Om f15a/f9.9c/ft9.9d/f13.5a'06
Diagram Reference: 34
Om f15a/f9.9c/ft9.9d/f13.5a'06
Diagram Reference: 34
Om f15a/f9.9c/ft9.9d/f13.5a'06
Diagram Reference: 34
Om f15a/f9.9c/ft9.9d/f13.5a'06
Diagram Reference: 35
Om f15a/f9.9c/ft9.9d/f13.5a'06
Diagram Reference: 35
Om f15a/f9.9c/ft9.9d/f13.5a'06
Diagram Reference: 35
Om f15a/f9.9c/ft9.9d/f13.5a'06
Diagram Reference: 35
Om f15a/f9.9c/ft9.9d/f13.5a'06
Diagram Reference: 35
Om f15a/f9.9c/ft9.9d/f13.5a'06
Diagram Reference: 35
