F15AEP (2004)
FUEL

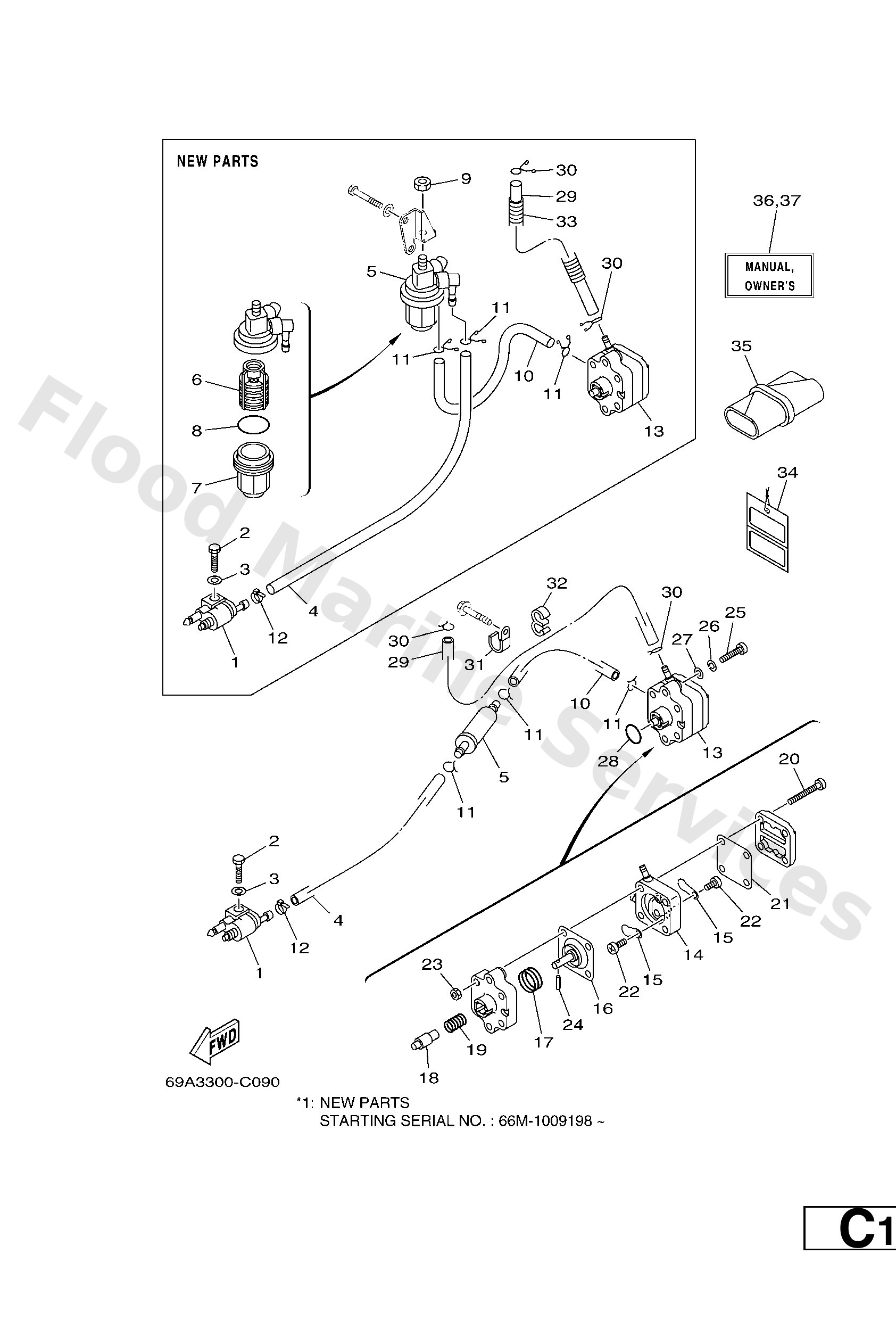

Diagram: FUEL
Parts List
6G12430402
Fuel pipe joint comp. 1
Diagram Reference: 1
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 2
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 3
Get Part
9044510M40
Hose (l400)
Diagram Reference: 4
Get Part
9044510M19
(NEW PARTS *1)
Hose (l590)
Diagram Reference: 4
Get Part
65W2425100
Strainer 1
Diagram Reference: 5
Get Part
61N2456000
(NEW PARTS *1)
Filter assembly
Diagram Reference: 5
Get Part
61N2456300
(FOR 61N-24560-00)
Element, filter
Diagram Reference: 6
Get Part
61N2452100
(FOR 61N-24560-00)
Cup, filter
Diagram Reference: 7
Get Part
9321032738
(FOR 61N-24560-00)
O-ring(1wg)
Diagram Reference: 8
Get Part
9538008600
(NEW PARTS *1)
Nut (661)
Diagram Reference: 9
Get Part
9044510M15
(NEW PARTS *1)
Hose (l400)
Diagram Reference: 10
Get Part
9044510M20
Hose (l400)
Diagram Reference: 10
Get Part
9046709M03
Clip(6k8)
Diagram Reference: 11
Get Part
9046709M17
(NEW PARTS *1)
Clip(6k8)
Diagram Reference: 11
Get Part
9046511M10
Clamp
Diagram Reference: 12
Get Part
66M2441010
Fuel pump assembly
Diagram Reference: 13
Get Part
66M2441301
Body 2
Diagram Reference: 14
Get Part
6A02442101
Valve, check
Diagram Reference: 15
Get Part
66M2441110
Diaphragm
Diagram Reference: 16
Get Part
66M2442300
Spring, diaphragm
Diagram Reference: 17
Get Part
66M1313110
Plunger
Diagram Reference: 18
Get Part
66M2445400
Spring
Diagram Reference: 19
Get Part
66M2444400
Screw
Diagram Reference: 20
Get Part
66M2447100
Diaphragm
Diagram Reference: 21
Get Part
6E71432500
Screw, pan head
Diagram Reference: 22
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 23
Get Part
66M2437400
Pin
Diagram Reference: 24
Get Part
9788006030
Screw, pan head(6e0)
Diagram Reference: 25
Get Part
9299006100
Washer(6a1)
Diagram Reference: 26
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 27
Get Part
9321020M65
O-ring
Diagram Reference: 28
Get Part
9044510M93
Hose (l400)
Diagram Reference: 29
Get Part
9046506M86
(OLD PARTS)
Clamp
Diagram Reference: 31
Get Part
9046409M31
(OLD PARTS)
Clamp(6m7)
Diagram Reference: 32
Get Part
9044614M51
(NEW PARTS *1)
Hose(6tc)
Diagram Reference: 33
Get Part
61H2819R31
-
Diagram Reference: 34
Get Part
62Y2810000
Tool kit
Diagram Reference: 35
Get Part
66M2819978A0
(UR (E,F,S))
O/m f15a/f9.9c/ft9.9d/f13.5a
Diagram Reference: 36
Get Part
66M2819978B0
(UR (D,NL,I))
O/m f15a/f9.9c/ft9.9d/f13.5a
Diagram Reference: 36
Get Part
66M2819989A0
(UR (DK,P,GR))
Owners manual '04
Diagram Reference: 37
Get Part
66M2819989B0
(UR (N,S,SS))
Owners manual '04
Diagram Reference: 37
