F2.5AMH (2004)
FUEL

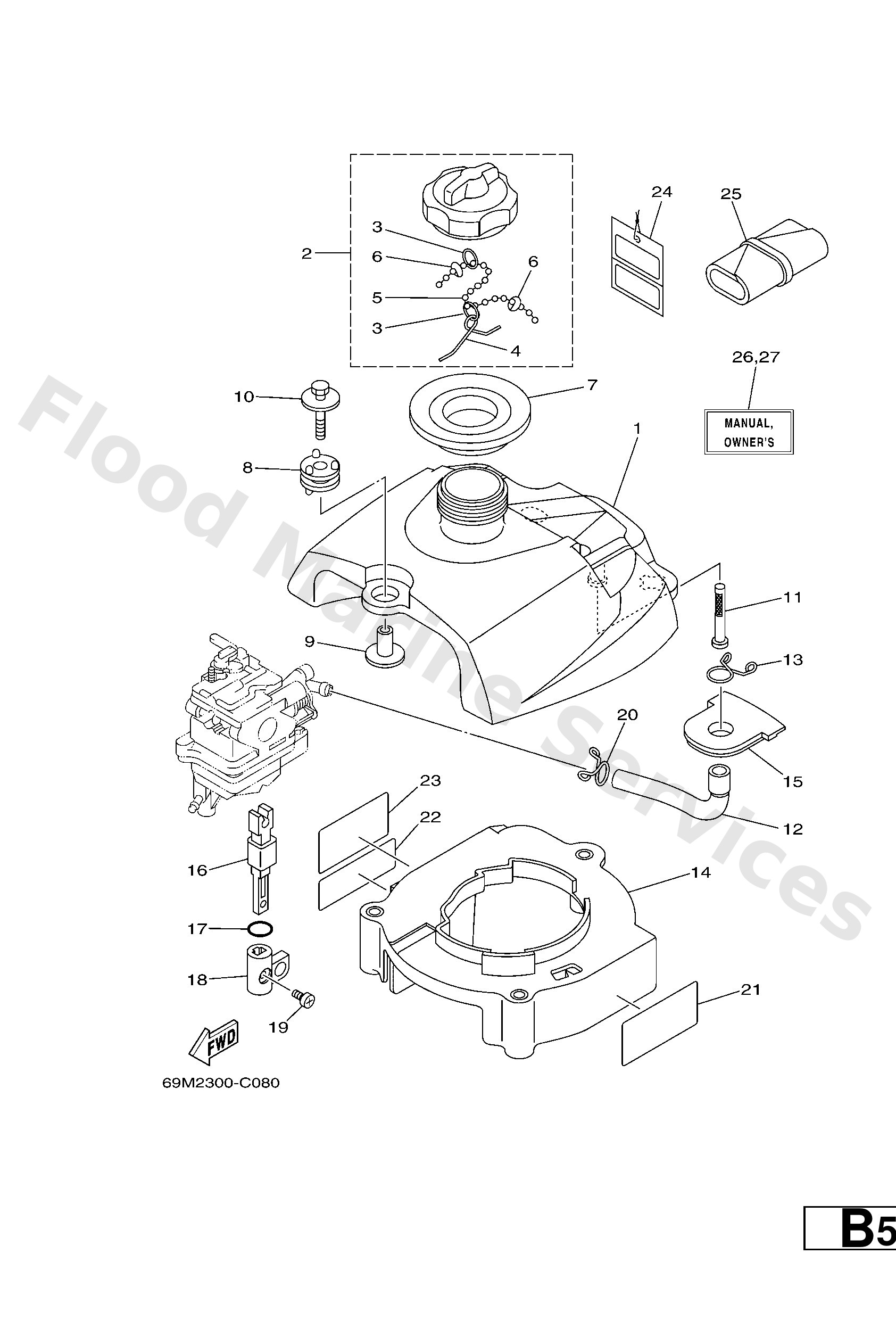

Diagram: FUEL
Parts List
Reference
Description
Price
1
69MF411100
Tank, Fuel
Loading…
↗
2
67D2461002
Cap assembly
Loading…
↗
3
9050110260
Spring, safety 6152463500
Loading…
↗
4
6242463400
Hook, chain ball
Loading…
↗
5
69M2463300
Chain, ball
Loading…
↗
6
6H12175700
Washer, special 1
Loading…
↗
7
69M2464100
Gasket, cap 1
Loading…
↗
8
69MF437500
Grommet
Loading…
↗
9
68F8612900
Collar
Loading…
↗
10
68F8511900
Bolt
Loading…
↗
11
6L52425100
Strainer 1
Loading…
↗
12
69MF431100
Pipe Fuel 1
Loading…
↗
13
9046713M13
Clip(6m6)
Loading…
↗
14
69MF419100
Bracket, fuel tank
Loading…
↗
15
69MF418100
Damper, locating 1
Loading…
↗
16
69M2455400
Shaft, cock
Loading…
↗
17
9321013M43
O-ring (26h)
Loading…
↗
18
69M2457500
Lever, fuel change
Loading…
↗
19
9015905M12
Screw, with washer(6t4)
Loading…
↗
20
9046711M08
Clip(72x)
Loading…
↗
21
69M1343760
-
Loading…
↗
22
6A18362541
Mark 5
Loading…
↗
23
6A18362551
Mark 5
Loading…
↗
24
61H2819R31
Tag Warning
Loading…
↗
25
69MF810000
Tool kit
Loading…
↗
26
69MF819971A0
UR (E,F,S)
Om f2.5a
Loading…
↗
26
69MF819971B0
UR (D,NL,I)
Om f2.5amh,f '04
Loading…
↗
27
69MF819981B0
UR (N,S,SS)
Om f2.5amh,f '04
Loading…
↗
27
69MF819981A0
UR (DK,P,GR)
Om f2.5amh,f '04
Loading…
↗
