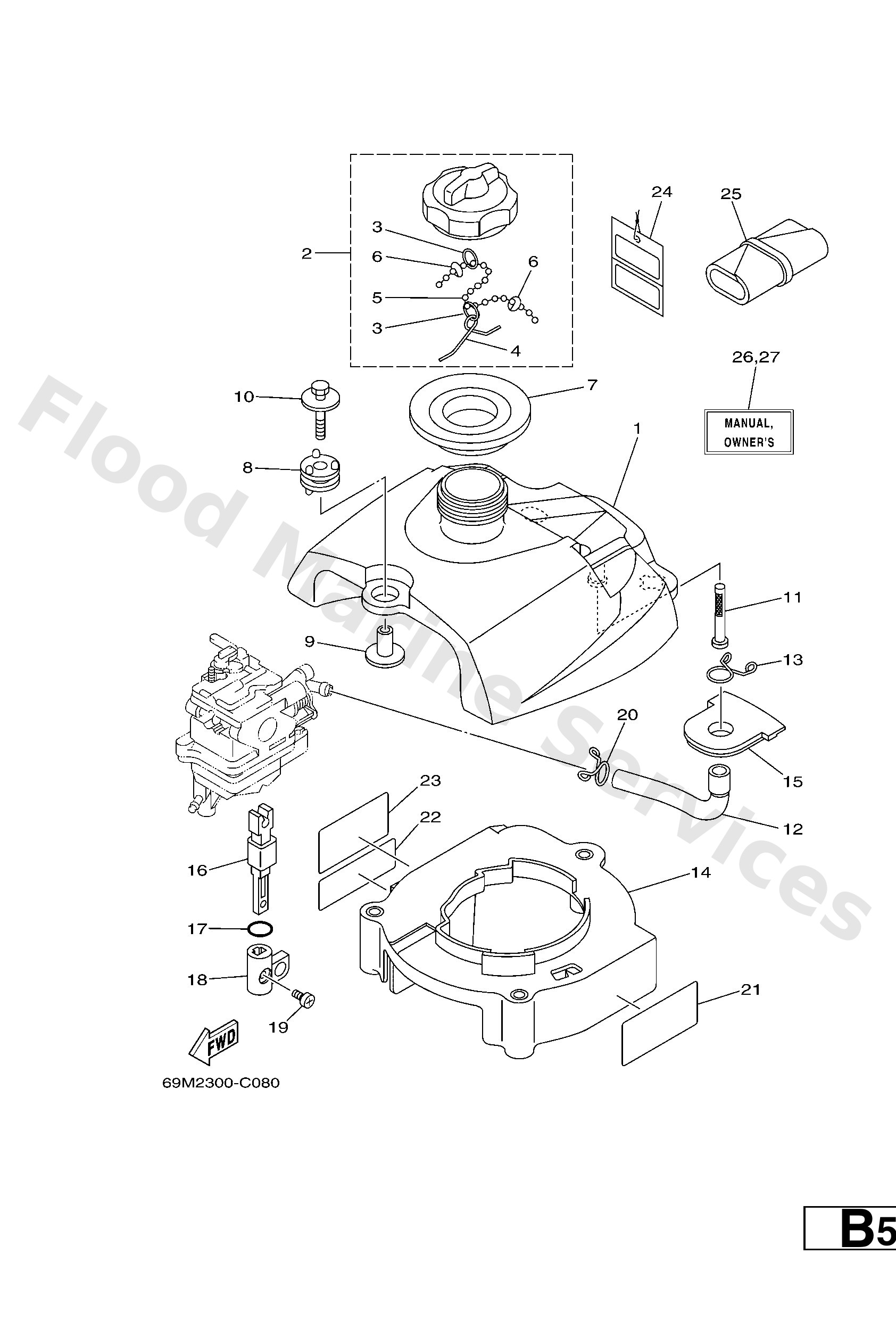

Diagram: FUEL

Diagram

Parts List

69MF411100
Tank, Fuel
Diagram Reference: 1
Get Part
67D2461002
Cap assembly
Diagram Reference: 2
Get Part
9050110260
Spring, safety 6152463500
Diagram Reference: 3
Get Part
6242463400
Hook, chain ball
Diagram Reference: 4
Get Part
69M2463300
Chain, ball
Diagram Reference: 5
Get Part
6H12175700
Washer, special 1
Diagram Reference: 6
Get Part
69M2464100
Gasket, cap 1
Diagram Reference: 7
Get Part
69MF437500
Grommet
Diagram Reference: 8
Get Part
9038706053
Collar
Diagram Reference: 9
Get Part
9011906098
Bolt, with washer
Diagram Reference: 10
Get Part
6L52425100
Strainer 1
Diagram Reference: 11
Get Part
69MF431100
Pipe, Fuel 1
Diagram Reference: 12
Get Part
9046713M13
Clip(6m6)
Diagram Reference: 13
Get Part
69MF419100
Bracket, fuel tank
Diagram Reference: 14
Get Part
69MF418100
Damper, locating 1
Diagram Reference: 15
Get Part
69M2455400
Shaft, cock
Diagram Reference: 16
Get Part
9321013M43
O-ring (26h)
Diagram Reference: 17
Get Part
69M2457500
Lever, fuel change
Diagram Reference: 18
Get Part
9015905M12
Screw, with washer(6t4)
Diagram Reference: 19
Get Part
9046711M08
Clip(72x)
Diagram Reference: 20
Get Part
69M1343760
-
Diagram Reference: 21
Get Part
60RH362540
-
Diagram Reference: 22
Get Part
60RH362550
-
Diagram Reference: 23
Get Part
61H2819R31
-
Diagram Reference: 24
Get Part
69MF810000
Tool kit
Diagram Reference: 25
Get Part
69MF819972E0 (UR (E))
O/m f2.5a '05
Diagram Reference: 26
Get Part
69MF819972F0 (UR (F))
O/m f2.5a '05
Diagram Reference: 26
Get Part
69MF819972G0 (UR (D))
O/m f2.5a '05
Diagram Reference: 26
Get Part
69MF819972H0 (UR (I))
O/m f2.5a '05
Diagram Reference: 26
Get Part
69MF819972D0 (UR (NL))
O/m f2.5a '05
Diagram Reference: 26
Get Part
69MF819972S0 (UR (ES))
O/m f2.5a '05
Diagram Reference: 26
Get Part
69MF819982K0 (UR (DK))
O/m f2.5a '05
Diagram Reference: 27
Get Part
69MF819982R0 (UR (GR))
O/m f2.5a '05
Diagram Reference: 27
Get Part
69MF819982P0 (UR (P))
O/m f2.5a '05
Diagram Reference: 27
Get Part
69MF819982N0 (UR (N))
O/m f2.5a '05
Diagram Reference: 27
Get Part
69MF819982M0 (UR (S))
O/m f2.5a '05
Diagram Reference: 27
Get Part
69MF819982L0 (UR (SF))
O/m f2.5a '05
Diagram Reference: 27
Get Part
